Presses compensated with inert gas for winemaking

Ensure the protection of delicate wine flavors during pressing by utilizing an inert atmosphere, preventing oxidation, and enhancing aroma retention for superior white and rosé wines.

Prevents Oxidation and Gently Presses Grapes

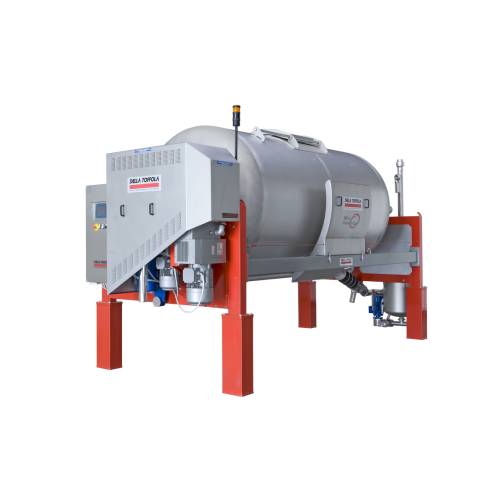

Della Toffola’s nitrogen-compensated inert gas wine press uniquely safeguards grape integrity during pressing, using a pure nitrogen atmosphere to prevent oxidation. Equipped with a centrally installed tubular membrane, it ensures even and gentle pressing. Ideal for producing high-quality must for wines like Chardonnay and Rosé, it features customizable gradual pressing cycles that optimize extraction. The press offers flexibility, operating traditionally or for carbonic maceration at controlled temperatures using an optional refrigerated lining. Its automated digital control system simplifies operation, while a patented nitrogen recovery technology minimizes gas consumption. The integrated washing system maintains excellent hygiene, making it a reliable choice for wineries and beverage producers seeking top-tier results.

Benefits

  • Ensures high-quality must with oxidation prevention and gentle pressing.
  • Reduces nitrogen costs with efficient gas recovery and minimal consumption.
  • Provides flexibility for diverse wine production, including traditional and carbonic maceration methods.
  • Simplifies operation and maintenance with an automated control system and integrated washing.
  • Enhances flavor profile in white and rosé wines through controlled pressing cycles.

General


Applications
Rosé wine,Must,White wine,Wine
End products
Unfermented grape juice,Chardonnay,Pinot grigio,Still rosé wine,Semi-sweet white wine,Blush rosé wine,Sauvignon blanc,Rosé sangria,Sparkling white wine,Dry white wine,Riesling,Rosé zinfandel
Steps before
Grape Harvesting,Grape Sorting,Grape Crushing,Must Preparation
Steps after
Fermentation,Aging,Filtering,Bottling
Input ingredients
grape mass,must,nitrogen,carbonic macerations
Output ingredients
white wines,rosé wines,pure nitrogen,excellent quality must
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Automation
Programmable automatic control system
Capacity
25–240 hl
Control panel type
Digital control panel
Gas type
Nitrogen
Operation mode
Inert atmosphere / Traditional
Pressing surface area
Increased with tubular membrane
Pressure control
Gradual increments with brief relaxations
Washing system
Integrated with moving balls

Operating Characteristics


Working mechanism
Tubular membrane with central installation on the drum
Automation level
Programmable automatic control system
Nitrogen compensation
Protected environment with pure nitrogen gas
Operation flexibility
Can operate with or without nitrogen,and for carbonic macerations
CIP/SIP
Integrated washing system with moving balls
Batch vs. continuous operation
Batch

Material Compatibility


Cleanability
Integrated washing system with moving balls
Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Suitable for food and beverage processing
Oxidation resistance
Inert gas protection (nitrogen atmosphere)


FDA compliance
Materials in contact with must

Physical Characteristics


Control panel type
Digital control panel
Compact footprint
N/A

Custom Options


Control panel type
Digital control panel
Programmable control system
Onboard computer
Integration possibilities
Centralized computer-controlled system
Operation mode
Inert atmosphere / Traditional
Pressing program
Gradual pressing program
