Precision cheese dicer for small to mid-range cuts
Efficiently transform cold-temperature cheeses into precision cuts with high-capacity dicing, seamlessly integrating into your production line for uninterrupted, high-speed operations.
Dices, Slices, and Crumbles Cold-Temperature Cheeses

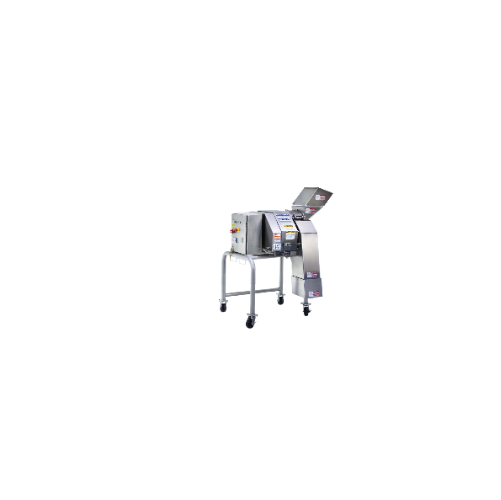

The Affinity Integra-D Dicer from Urschel Laboratories is designed to enhance cheese and dairy processing lines with its precise dicing and slicing capabilities. This machine is engineered to handle a variety of cold-temperature cheeses, offering reliable throughput for food processors and cheese manufacturers. Utilizing an advanced combination of impeller paddles, slicing knives, and crosscut components, it ensures consistent size production with minimal manual intervention. The Integra-D is capable of processing various cheese types, including blue cheese crumbles and mozzarella strips, with cutting dimensions customizable to specific requirements.
This USDA Dairy Division-accepted dicer boasts a robust 10 HP motor for continuous, high-speed operation, maintaining throughput even in demanding production settings. Its compact design seamlessly integrates into existing lines while offering up to 50% higher capacity compared to older in-line machine models. Constructed for ease of cleaning and maintenance, the Integra-D supports quick changeovers and minimal downtime. For processors seeking efficient, sanitary, and precise cheese processing, this dicer provides a streamlined solution backed by Urschel’s specialized engineering support.
Benefits
- Enhances production efficiency with up to 50% increased capacity.
- Provides precise size control for consistent product quality.
- Seamlessly integrates into existing lines for minimal transition downtime.
- Operates continuously to reduce production interruptions.
- Simplifies cleaning and maintenance, ensuring high sanitation standards.
- Applications
- Cold-temperature cheeses,Imitation cheese,Dairy products,Cheeses
- End products
- Reduced fat cheddar strips,Blue cheese crumbles,Parmesan dice,Imitation mozzarella dice,Mozzarella strips,Colby jack dice,Cheddar dice
- Steps before
- Cheese Preparation,Ingredient Selection,Initial Cutting
- Steps after
- Packaging,Quality Control,Storage,Distribution
- Input ingredients
- cold-temperature cheeses,high-fat cheeses,imitation cheeses,infeed product up to 4.75 inches
- Output ingredients
- blue cheese crumble,cheddar dice,colby jack dice,imitation mozzarella dice,parmesan dice,reduced fat cheddar strip,mozzarella strip
- Market info
- Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.
- Length
- 55.53" (1410 mm)
- Width
- 58.50" (1486 mm)
- Height
- 71.03" (1804 mm)
- Net Weight
- 1500 lb (680 kg)
- Motor
- 10 HP (7.5 kW)
- Infeed Product Size
- up to 4.75" (120 mm)
- Cut Sizes
- Small to mid-range
- Automation
- Push of a button operation
- Continuous Operation
- Yes
- Slice Adjustment Range
- 1/8 - 1/2" (3.2 - 12.7 mm)
- Circular Knife Cut Range
- 1/8 - 2-1/2" (3.2 - 63.5 mm)
- Crosscut Knife Cut Range
- 1/8 - 1-1/2" (3.2 - 38.1 mm)
- Batch vs. continuous operation
- Continuous
- Automation level
- Simple operation at the push of a button
- Changeover time
- Easy to follow steps
- Cleaning method
- Ultimate in sanitation
- Density/particle size
- 0.5–2.5 g/cm³
- U.S.D.A. Dairy Division Acceptance
- Yes
- Machine footprint
- Length
- Net Weight
- 1500 lb (680 kg)
- Feed method
- Infeed up to 4.75" (120 mm)
- Discharge method
- Continuous operation
- Automation level
- Simple operation at the push of a button
- Control panel type
- Push button interface
- Integration capability
- Designed to replace in-line RA series
