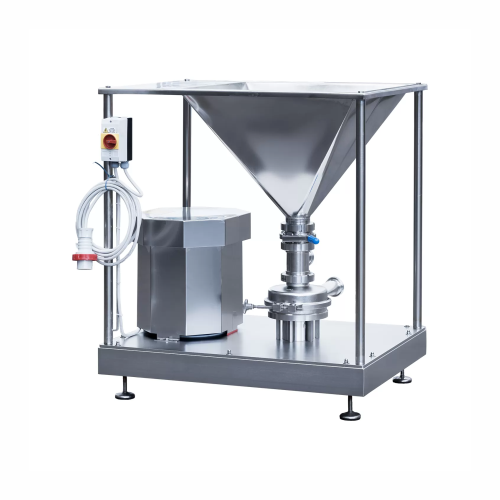

Powder liquid mixer for pectins and starches
Struggling with clumpy, undissolved granules in your mixtures? This innovative mixer ensures instant solubilization and micronization, delivering smooth, homogeneous blends to streamline your production process.
Mixes and Micronises High-Viscosity Ingredients
The TMV Powder Liquid Mixer from Inox-Fer is designed to streamline the mixing of high-viscosity ingredients such as pectins, starches, and proteins. Featuring a vertically mounted centrifugal pump body and impeller, it ensures instantaneous dispersion and solubilisation, eliminating lumps and preventing undissolved particles in production lines. Ideal for applications in the food, beverage, dairy, and nutraceutical industries, it caters to products like syrups, infant formula, and protein shakes. The TMV Mixer delivers an impressive throughput of up to 7,000 kg/h and integrates seamlessly with both batch and continuous operations. With AISI 316L contact surfaces and optional features like automatic powder intake valves and internal lump breakers, it ensures efficient mixing and ease of maintenance. Additional customization and engineering support are available to tailor the system to specific production requirements.
Benefits
- Enhances product quality by achieving uniform dispersion and eliminating undissolved particles.
- Accelerates production with fast solubilisation, reducing mixing times to increase throughput.
- Minimizes energy usage with an efficient centrifugal pump design.
- Offers flexibility with integration into both batch and continuous processing lines.
- Reduces maintenance needs with corrosion-resistant materials and inline cleaning options.
- Applications
- Pectins,Proteins,Starches,Milk powder,Sugar solutions,Salt solutions,Syrups,Brine solutions,Caseinates,Thickeners
- End products
- Nutritional supplements,Infant formula,Instant milk drinks,Protein shakes,Caseinate-containing beverages,Cheese brine solutions,Gummy candies,Fruit syrups,Electrolyte drinks,Gelatinous desserts,Confectionery syrup bases
- Steps before
- Drying,Emulsification,Grinding
- Steps after
- Packing,Filtering
- Input ingredients
- pectins,starches,thickeners,proteins,caseinates,syrups,milk powder,brine,sugar,salt
- Output ingredients
- micronised ingredients,dispersed ingredients,homogenised product,reduced viscosity product
- Market info
- Inox-Fer is known for manufacturing customized stainless steel tanks and processing equipment, primarily for the food, beverage, and pharmaceutical industries, with a reputation for high-quality engineering and tailored solutions in industrial applications.
- Product viscosity
- 150–1850 CPS
- Dissolving speed
- 1500–7000 kg/hr
- Maximum back pressure
- 0.5–1.5 Bar
- Power
- 5.5–18.5 kW
- Vessel Volume
- 300–5000 litres
- Dimensions (mm)
- 600×830 H1050 to 1240×980 H1250
- Weight (Kg)
- 152–260
- Working mechanism
- Vertical centrifugal pump
- Integrated steps
- Micronisation and homogenisation
- Dissolution process
- Instantaneous solubilisation
- Operation mode
- Batch / Inline operation
- Automation level
- Manual / PLC-based
- Ease of cleaning
- Incorporates spray ball for sanitation
- Powder intake feature
- Automatic valve for powders intake
- Flexibility
- Mounted on wheels for mobility
- Abrasion resistance
- AISI 316L
- Cleanability
- Spray ball for sanitation
- Corrosive resistance (e.g. acids)
- AISI 316L
- Density/particle size
- Micronisation capability
- Machine footprint
- Varies with model (e.g.,600×830 mm)
- Vessel Volume
- From 300 to 5000 litres
- Hopper design
- Vertical suction from hopper
- Internal components
- Centrifugal pump body and impeller
- Dimensions
- Varies with model (e.g.,600×830×H1050 mm)
- Weight
- Varies with model (e.g.,152 - 260 Kg)
- Contact surfaces material
- AISI 316L
- Powder intake method
- Automatic valve for powders intake
- Sanitation method
- Spray ball for powder mixer sanitation
- Hopper grid
- Internal lump breaker grid
- Hopper shaft
- Lump breaker rotating shaft
- Hopper vibrator
- Vibrator for hopper
- Powder feed assistance
- Fludifiers
- Level control sensors
- Level sensors for exhaust control
- Powder feeding method
- Automatic powder feeding via auger
- Mobility
- Mounted on 4 wheels (2 fixed,2 swivel)
