Powder blender for liquid mixing applications

Optimize your process with a compact blender designed to efficiently dissolve powders into liquids, ensuring homogeneous mixtures for smooth operations in your production line.

Dissolves and Mixes Solids in Liquid Streams

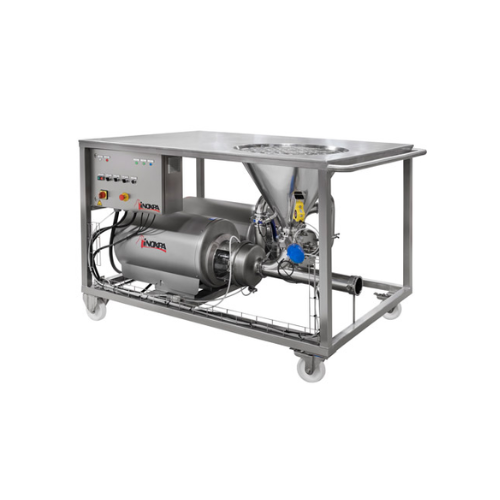

The Table Blender MM-1, MM-2, and MM-3 series from INOXPA are compact, efficient solutions designed for pharmaceutical, food, and beverage processing. These blenders use a centrifugal pump paired with a venturi system to achieve thorough dissolution of solids and powders in liquids. Ideal for producing items like cough syrup, marmalade, yogurt, and flavored milk, they ensure efficient process integration.

The table blender’s unique venturi system generates a suction force, drawing solids from the hopper into the pumped liquid, ensuring uniform mixing. It supports batch operations and manual control, with in-line options available for continuous processes. The design includes a hygienic layout with ISO 2852 Clamp connections, simplifying cleaning and assembly.

With construction options in AISI 316L and AISI 304 stainless steel, the blenders offer corrosion resistance essential for demanding pharmaceutical and food applications. Optional features like double mechanical seals, solenoid valves for seal cooling, and pneumatic actuation for valves enhance flexibility and process reliability. The unit is suitable for clean-in-place (CIP) systems, streamlining maintenance while maintaining product integrity.

Benefits

  • Enhances production efficiency through seamless solid-liquid dissolution.
  • Minimizes operational downtime with easy-to-clean design and CIP compatibility.
  • Reduces manual intervention in batch processing with automated features.
  • Ensures product consistency and quality with uniform mixing.
  • Offers robust corrosion resistance, ideal for harsh processing environments.

General


Applications
Sugar dissolution,Beverage industries,Pharmaceutical syrups,Milk stabilization,Marmalade production,Dairy products
End products
Sugar syrup,Cough syrup,Milk powder,Marmalade,Yogurt,Carbonated soft drinks,Fruit juice,Flavored milk
Steps before
Drying,Grinding,Emulsification
Steps after
Sterilization,Packaging
Input ingredients
solids,powders,pharmaceutical syrups,pectin,glucose,milk,sugar
Output ingredients
dissolved mixtures,pharmaceutical solutions,marmalade mixture,dairy product stabilization,syrup for beverages
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Capacity
Varies per model
Hygienic Design
Yes
Surface Finish
Internal and hopper Bright polish Ra ≤ 0.8 μm
Material Contact Parts
AISI 316L (1.4404)
Other Steel Parts
AISI 304 (1.4301)
Gasket Material
EPDM
Mechanical Seal Material
Silicon carbide (SiC)
Automation
Manual/Optional In-line Mixer

Operating Characteristics


Working Mechanism
Venturi system with centrifugal pump
Batch vs. Inline Operation
Batch / Inline option
CIP/SIP
CIP possible,no disassembly
Automation Level
Manual / Optional automated control
Cleaning Method
CIP / Manual
Changeover Time
Minimal due to hygienic design

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Foaming risk
Low

Physical Characteristics


Machine footprint
Compact unit
Control panel type
St.St. control panel with Stop/Start button
Discharge method
Manual via butterfly valve
Hopper size
Welded to the table,smooth,easy-to-clean surface
Mobility
Skid with wheels
Material of construction
AISI 316L for parts in contact with the product

Custom Options


Control panel type
St.St. control panel with Stop/Start button and motor protection
In-line mixer option
Optional in-line mixer for total dissolution of possible lumps
Mobility option
Skid with wheels
Vibrator option
Optional vibrator for hopper
Sealing options
Double mechanical seal available
Pneumatic valve option
Pneumatically actuated valve + lower level sensor for solids
Frequency converter
Frequency converter for the centrifugal pump
Material options for gaskets
FPM or PTFE
Additional sensor options
Hygienic upper level sensor for solids
Automated control options
Control panel for the vibrator,level sensors,frequency converter and automated valve
Connection options
Connections
Hopper customization
Grid for hopper
