Powder and oil coating system for gummies
Enhance your gummy production with precise powder and oil coating, achieving consistent quality and texture at high throughputs for various chewable supplements and sweets.
Coats Gummies with Powders and Oils

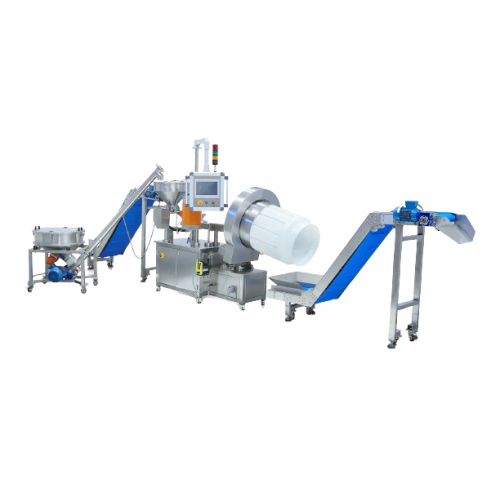

The MC100 Multi Coater from Gummy Technologies revolutionizes gummy production with its capacity to coat up to 40,000 gummies per hour. This versatility makes it an essential piece of equipment for confectionery manufacturers and nutraceutical producers aiming to enhance their product offerings. Placed in line with your depositor or in a dedicated finishing room, it efficiently coats gummies with sugar, starch, or oil using a precise metering pump in the coating drum. The variable-speed feeding conveyor system, powered by an auger, ensures consistent powder application, while the heating capability facilitates effective oil coating. Capable of handling a 50-liter powder supply and a 15-liter oil capacity, the MC100 integrates seamlessly into continuous, high-speed operations. The equipment operates on a 220V/3PH/60HZ or 480V/3PH/60HZ power supply and requires minimal maintenance, making it an asset in both food and nutraceutical sectors. Crafted for durability, it supports customization to meet specific production requirements, ensuring compliance with industry standards.
Benefits
- Maximizes throughput with the capacity to coat up to 40,000 gummies per hour.
- Enhances product versatility by allowing coatings with sugar, starch, and oils.
- Reduces labor costs through automated and precise metering systems.
- Integrates seamlessly into existing production lines, optimizing floor space and workflow.
- Facilitates easy integration with continuous operations, minimizing production interruptions.
- Applications
- Supplements,Nutraceuticals,Gummies,Sweets,Coating materials
- End products
- Oil-coated gummies,Sugar-coated gummies,Herbal supplements gummies,Vitamin gummies,Probiotic gummies,Starch-coated gummies,Multivitamin sweets,Omega-3 gummies,Cbd gummies,Nutraceutical coated chews
- Steps before
- Depositing,Conveying
- Steps after
- Packing
- Input ingredients
- gummies,sugar,starch,oil
- Output ingredients
- coated gummies,sugar-coated gummies,starch-coated gummies,oil-coated gummies
- Market info
- Capacity
- 40,000 gummies per hour
- Power
- 220V/3PH/60HZ or 480V/3PH/60HZ
- Output
- 100 kg or 40,000 2.5g gummies per hour
- Conveyors
- 1 x Variable Speed Feeding Conveyor and 2 x Cleated Lifting Conveyor
- Powder Supply Hopper Capacity
- 50 liter
- Oil Hopper Capacity
- 15 liter
- Drum Dimensions
- 600 x 1000 mm
- Coating method
- Powder and Oil Coating
- Automation
- Food grade variable speed conveyor,Precise metering pump
- Batch vs. continuous operation
- Batch / Inline Continuous
- Automation level
- Manual / PLC / SCADA
- Coating capacity
- Up to 40,000 gummies per hour
- Integration flexibility
- In line with depositor or separate room
- Powder application method
- Auger-fed onto conveyor
- Oil application method
- Metering pump into drum
- Heating capability
- For oils
- Cleanability
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Suitable for 2.5g gummies
- Coating material
- Sugar,starch,oil
- Drum Dimensions
- 600 x 1000 mm
- Conveyor Type
- Variable Speed Feeding Conveyor
- Powder Supply Hopper Capacity
- 50 liter
- Oil Hopper Capacity
- 15 liter
- Output Capacity
- 100 kg or 40,000 2.5g gummies per hour
- Machine Placement
- Inline with depositor or separate finishing room
- Integration possibilities
- Inline with depositor or separate finishing room
- Conveyor speed
- Variable speed
- Auger feeder
- Yes
- Metering pump
- Precise metering pump for oil
