Potato weighing solution for high-precision processing

Achieve precise portioning for packaged vegetables and potatoes with this advanced weighing solution, designed to optimize accuracy and reduce material waste in your processing line.

Weighs, Conveys, and Fills Potato and Vegetable Batches

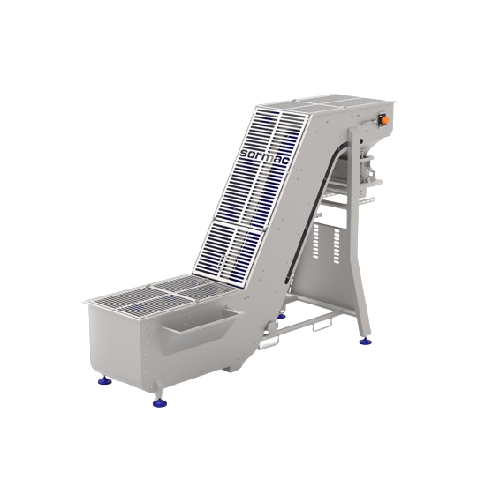

The AFW-40DB, engineered by Sormac, is a robust solution for accurate weighing and filling of potatoes and vegetables, tailored for demanding food processing operations. This advanced machine utilizes a slide chain conveyor system and modular feeding belt to ensure precise measurement and minimal product waste. With a capacity of processing approximately 1,200 to 1,800 kg per hour, the AFW-40DB accommodates solid and liquid products in its 25-liter weighing hopper. It features both manual and automatic operating modes, supporting batch and lot weighing for various packaging needs.

Integrating seamlessly into your production line, this unit is equipped with a touchscreen for easy operation and variable illuminated weight parameters for customization. The system offers automatic tearing after a set number of weights and the ability to create specific recipes, enhancing operational efficiency. Designed with a hygienic structure, ease of access for maintenance, and options for various filling hopper sizes, the AFW-40DB provides food processors and agricultural producers with a reliable and versatile solution.

Benefits

  • Ensures precise portioning and minimizes giveaway with accurate weighing capabilities.
  • Enhances productivity by processing up to 1,800 kg per hour.
  • Simplifies operations with intuitive touchscreen control and customizable weight settings.
  • Reduces maintenance downtime with easy access and hygienic design.
  • Supports diverse packaging needs with adaptable filling hopper options.

General


Applications
Vegetables,Potatoes
End products
Prepared vegetable bags,Packaged potatoes,Boxed vegetables,Batched potato bags
Steps before
Sorting,Peeling,Washing
Steps after
Packing,Inspection,Quality Control
Input ingredients
potatoes
Output ingredients
weighed potatoes,boxed potatoes,bagged potatoes
Market info
Sormac is known for its expertise in manufacturing high-quality vegetable processing equipment, particularly peeling, washing, and slicing machines, with a strong reputation for innovation, reliability, and customer-focused solutions in the food processing industry.

Technical Specifications


Automation
Manual / Automatic
Control Panel
Touchscreen
Capacity
1,200 – 1,800 kg/h
Batch size
Approx. 15 kg (33 lbs) of potatoes
Weighing Hopper Maximum Content
25 liters (6.6 gallons)
Accuracy
± 5% adjustable
Feed type
Wet surge hopper
Conveyor System
Slide chain conveyor system
Adjustable Weight Parameters
Illuminated on the electrical panel
Height Adjustment
Support platform adjustable in height

Operating Characteristics


Working mechanism
Modular feeding belt with weighing hopper
Batch vs. continuous operation
Batch operation
Automation level
Manual / Automatic
Cleaning method
Easy to clean,disinfect
Integrated steps
Wet surge hopper with slide chain conveyor

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Hopper / Bag
Product type
Potatoes

Physical Characteristics


Weighing hopper capacity
25 liters / 6.6 gallons
Holding hopper content
200–250 kg of potatoes
Filling chute type
Removable
Support platform adjustability
Height-adjustable
Surge hopper option
Wet type
Feed/discharge method
Slide chain conveyor system
Control panel type
Touchscreen

Custom Options


Control panel type
Touchscreen
Adjustable options
Automatic tearing,Recipe creation
Conveyor system type
Slide chain conveyor
Surge hopper
Wet surge hopper
Height adjustment
Support platform adjustable in height
