Pneumatic bench-top capping for multiple cap types

Streamline your capping process with a versatile solution designed to ensure perfect sealing on wine, beer, syrup, vinegar, and liquor bottles, using pneumatic power for precise and consistent results.

Seals, Corks, and Caps Bottles

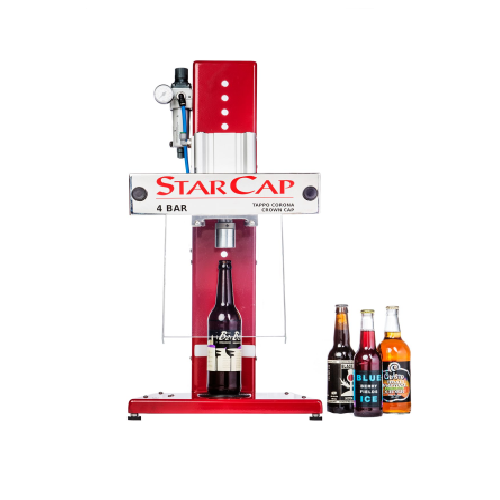

The Starcap from Tenco is a semi-automatic pneumatic bench-top capping machine designed for versatility and precision in small-scale production environments. Its robust design facilitates the seamless sealing of a wide array of bottle types, including wine with synthetic corks, craft beer with crown caps, and specialty liquids with pressure caps. The machine operates with a two-button activation system, guaranteeing perfect cork insertion and cap placement with minimal manual intervention, which enhances workplace safety. Capable of handling up to 500 units per hour, Starcap integrates efficiently within your final conditioning and packaging operations. Although compact, it boasts the adaptability to work with different cap diameters and bottle heights, incorporating customizable kits for specific capping requirements. Its energy-efficient pneumatic operation reduces setup costs, as it requires only a standard compressor, which is not included. Designed without a hopper, it provides flexibility for artisanal and small batch producers who prefer hands-on quality control.

Benefits

  • Ensures consistent capping quality, enhancing product integrity across various bottle types.
  • Accommodates small-scale production with efficient throughput rates of up to 500 units per hour.
  • Enhances worker safety with two-button pneumatic operation and protective visor.
  • Offers flexibility with configurable kits for different cap styles, minimizing the need for multiple machines.
  • Simplifies setup and maintenance with compact design suited for artisanal operations.

General


Applications
Food,Beverage,Cosmetic,Chemical,Pharmaceutical
End products
Liquor bottles with wooden head corks,Craft beer bottles with crown caps,Wine bottles with synthetic corks,Specialty vinegar bottles with crown caps,Fruit syrup bottles with pressure caps
Steps before
Bottle Preparation,Cap Selection,Compressor Setup
Steps after
Quality Inspection,Labeling,Packaging
Input ingredients
satin cork stoppers,synthetic agglomerate cork stoppers,crown caps,pressure caps,Guala dop caps,wood head cork stoppers,metal lids,plastic pressure lids
Output ingredients
capped bottles,capped containers
Market info

Technical Specifications


Production Speed
about 300 p/h for cork
Production Speed
about 500 p/h for crown and Guala caps
Maximum Cap Diameter
24 x 44 mm
Maximum Bottle Height
350 mm
Minimum Bottle Height
180 mm
Power Supply
pneumatics
Recommended Compressor
40 litres
Dimensions
39 x 46 x 80 cm
Weight
31 Kgs

Operating Characteristics


Automation level
Manual operation
Capping method
Pneumatic compression
Batch production
Semi-automatic
Cap insertion
Manual
Surface finish
Homogeneous,no depressions
Cap compatibility
Satin,crown,and pressure caps
Cap size range
Up to 24 x 44 mm
Bottle height range
180 mm to 350 mm
Production speed
300 to 500 bottles per hour

Material Compatibility


Cap material compatibility
Cork,synthetic agglomerate,crown caps,"Guala dop" type caps,corks with wooden head
Bottle material compatibility
Glass bottles with varying heights
Pneumatic system compatibility
Compressed air
Corrosion resistance
Pneumatic operation environment
Manual handling compatibility
Manually inserted corks

Physical Characteristics


Compact footprint
39 x 46 x 80 cm
Weight
31 Kgs
Maximum bottle height
350 mm
Minimum bottle height
180 mm
Maximum cap diameter
24 x 44 mm
Power supply
Pneumatics

Custom Options


Operation type
Semi-automatic
Capping Capability
Satin corks/synthetic agglomerate/crown caps/Guala dop/wood head corks
Positioning
Bench-top
Compressor Requirement
40 litres
Protective Visor
Yes,with two-handed operation
Cap Customization
Corona caps,Pressure caps,Pressure lids
