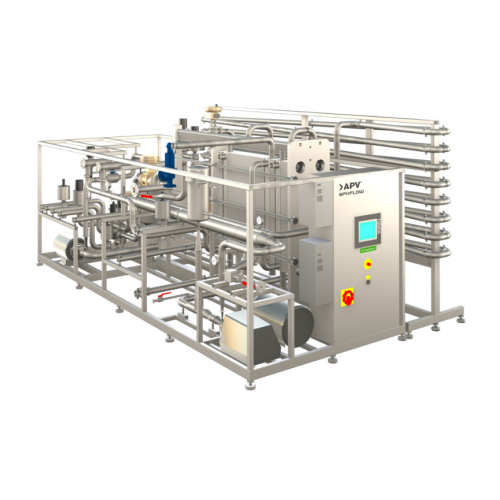

Plate juice pasteurizer system

Ensure optimal pasteurization with precise temperature control and high heat recovery, reducing energy costs and maintaining product quality from fruit juices to plant-based beverages.

Ensures Precise Pasteurization for Liquid Products

The Plate Juice Pasteurizer System by SPX FLOW offers an efficient solution for processing a variety of liquid products, including fruit juices, plant-based beverages, and dairy products. This system features automatic control of pasteurization temperature, ensuring precise and consistent operation while supporting low operating costs through its high heat recovery capability. With a capacity ranging from 792 to 9,246 gallons per hour, it caters to diverse production scales.

Operating on a modular design, the system integrates smoothly with existing production lines and requires minimal space due to its skid-mounted setup. It provides full traceability with continuous process recording and supports operational efficiency through automatic flow diversion. Ideal for beverage producers and dairy processors, this pasteurizer ensures minimal product loss and lower investment costs while maintaining energy-efficient performance. Factory-tested with water, it guarantees easy installation and reliable service life, delivering high ROI in fast-paced production environments.

Benefits

  • Enhances production efficiency with precise temperature control and minimal product loss.
  • Decreases operational costs through high heat recovery and energy-efficient performance.
  • Simplifies integration with existing systems thanks to a compact, modular design.
  • Accelerates installation and startup with pre-assembled, factory-tested configuration.
  • Increases production flexibility with capacities ranging from 792 to 9,246 gallons per hour.

General


Applications
Cream,Beverage processing,Plant-based drinks,Milk,Food processing,Dairy processing,Fruit juice
End products
Dairy milk,Apple juice,Oat milk,Orange juice,Almond milk,Soy milk,Fruit nectar,Lactose-free milk,Yogurt,Plant-based smoothies
Steps before
Juice Extraction,Filtration
Steps after
Aseptic Storage,Bottling,Cooling,Sterilization
Input ingredients
juice
Output ingredients
pasteurized juice
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Capacity
792 to 9,246 g/h (3,000 to 35,000 l/h)
Automation
Automatic control
Flow Diversion
Automatic
Recording System
Continuous
Heat Recovery
High

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Continuous
Cleaning method
CIP
Changeover time
Fast installation and commissioning
CIP/SIP
CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Skid-mounted and small footprint for flexibility in limited space
Discharge method
Automatic flow diversion
Control panel type
Integration with existing control system
Compact footprint
Ensures flexibility in limited space

Custom Options


Control Panel Type
User-friendly HMI
Integration Possibilities
Existing control system compatibility
System Configurations
Modular system for flexibility
Installation Type
Skid-mounted
Footprint Size
Small footprint for limited space
Operational Modes
Automatic control
