Pilot freeze dryers for research and development

Ensure precise dehydration of sensitive samples while maintaining structural integrity, essential for laboratories and small-scale production exploring advanced preservation techniques.

Facilitates Precise Freeze Drying and Sublimation

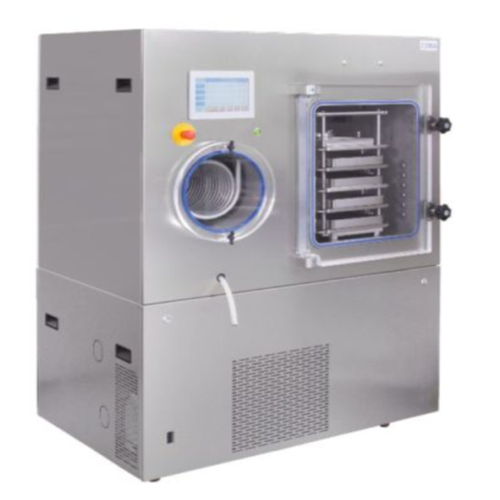

The Sublimator Series from ZIRBUS technology GmbH offers efficient and precise freeze drying solutions, specifically designed for research and development, as well as small-scale production. These systems excel in removing moisture through controlled sublimation, a critical step in preserving pharmaceuticals, biopharmaceutical samples, historical documents, and dehydrated foods. With an ice condenser capacity ranging from 5 kg to 40 kg, these units accommodate various batch sizes. Integrated automation enables seamless incorporation into lab workflows, while the oil-sealed and oil-free vacuum pumps enhance performance, especially in solvent-heavy environments. Built with stainless steel, the units ensure corrosion resistance and compatibility with all standard disinfectants, meeting GMP-FDA standards for cleanroom operations. Additionally, options like CIP/SIP systems and customizable configurations, such as air or water-cooled refrigeration, provide tailored support for diverse industrial needs.

Benefits

  • Ensures product integrity with precise sublimation control, crucial for sensitive samples.
  • Minimizes labor with automated vial sealing under vacuum, optimizing batch preservation.
  • Reduces cleaning downtime with integrated CIP/SIP systems, enhancing operational efficiency.
  • Complies with GMP-FDA standards, supporting regulatory adherence in pharmaceutical applications.
  • Adapts to site needs with customizable refrigeration options, ensuring optimal performance.

General


Applications
Product development,Research and development,Small-scale production,Archaeology and file rescue,Laboratory applications,Food preservation
End products
Lab reagents,Biopharmaceutical samples,Preserved vegetables,Dehydrated fruits,Historical documents,Archaeological artifacts,Pharmaceutical formulations
Steps before
Purification,Emulsification,Grinding
Steps after
Sterilization,Packing,Coating
Input ingredients
research samples,development samples,small-scale production items,vials,tray items,organic solvents
Output ingredients
freeze-dried samples,lyophilized products,sealed vials under vacuum,bulk freeze-dried items
Market info
Zirbus is known for manufacturing high-quality autoclaves, freeze dryers, and customized sterilization equipment, with a strong reputation for reliability and precision in industrial and laboratory applications.

Technical Specifications


Ice Capacity
5 to 40 kg
Footprint
0.45–2.7 m²
Footprint Temperature
-40…+60 °C
Footprint Temperature (Low)
-60…+60 °C
External Dimensions (WxHxD)
970 x 1700 x 750 mm to 1500 x 1920 x 850 mm
Ice Condenser Capacity
4 kg / 24h to 30 kg / 24h
Sublimator Configuration
Number + Radiation Panel / Footprint
Vacuum Valve
Regulating vacuum
Separating Valve
Between drying chamber and condenser
Material
Stainless steel
CIP System
Cleaning in Place
SIP System
Sterilization in Place
Shelves
Liquid-tempered,Stainless Steel
Refrigeration System
Air or Water-cooled
Vacuum Pump
Oil-sealed or Oil-free
Control Systems
SCADA Visualization
Explosion Protection
ATEX version

Operating Characteristics


Working mechanism
Freeze drying / Lyophilization
Integrated steps
Freeze,primary,and secondary drying
CIP/SIP
CIP 121°C / SIP 135°C
Batch vs. continuous operation
Batch
Automation level
PLC / SCADA
Energy efficiency
Optimized for R,D and small-scale production
Cleaning method
Spray nozzles for intensive cleaning
Temperature range
-80°C to +60°C
Footprint design
Compact
Cooling system
Air or water-cooled

Material Compatibility


Corrosive resistance (e.g. acids)
Yes

Physical Characteristics


Machine footprint
0.45–2.7 m²
Ice condenser capacity
5–40 kg
External dimensions (WxHxD)
970 x 1700 x 750 mm to 1500 x 1920 x 850 mm
Footprint temperature (-50°C version)
-40…+60 °C
Footprint temperature (-80°C version)
-60…+60 °C
Tray drying footprint
200 x 450 mm to 450 x 750 mm
Vial drying footprint
200 x 450 mm to 450 x 750 mm
