Pilot freeze dryer for r&d and small batch production

Optimize your freeze-drying process for pilot and laboratory applications with advanced control and precision, ensuring reliable results from R&D testing to small batch production.

Freeze Dries Vaccines and Liquid Formulations

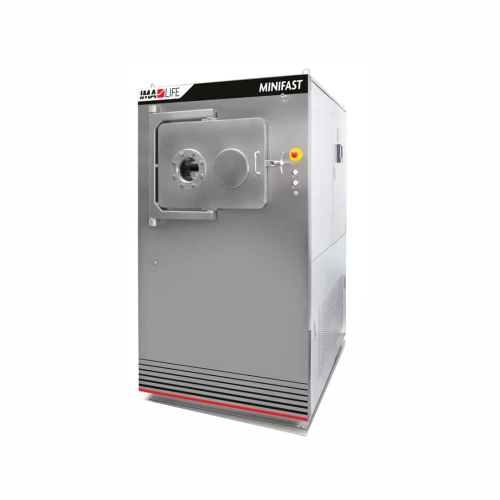

The MINIFAST series from IMA Life represents a versatile solution for pharmaceutical and biotech R&D laboratories seeking precision in freeze drying. Bridging the gap between laboratory models and GMP production units, the MINIFAST employs patented FUSION™ shelf design to enhance drying efficiency and reliability. Available in MINIFAST 04 and MINIFAST 10 configurations, it supports shelf areas of 0.4 and 1.1 m², making it perfect for developmental and small-scale production of vaccines, monoclonal antibodies, and other sensitive liquid formulations. With a condensing capacity ranging from 8 to 20 kg and standard operating temperatures down to -85°C, it efficiently lyophilizes products while maintaining integrity. The rectangular chamber, made from corrosion-resistant AISI 304L stainless steel, ensures compatibility with stringent pharmaceutical standards. PLC-controlled operation and potential for integration into existing production systems add to its appeal for innovative R&D and pilot plant environments.

Benefits

  • Enhances R&D efficiency by facilitating transition from laboratory to small batch production.
  • Maintains product integrity with precise temperature control down to -85°C.
  • Reduces operating costs through patented FUSION™ shelf design for optimized drying.
  • Ensures pharmaceutical compliance with AISI 304L stainless steel construction.
  • Integrates seamlessly into existing systems with PLC-controlled automation.

General


Applications
Liquid formulations,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals
End products
Vaccines,Monoclonal antibodies,Vitamin supplements,Injectable formulations,Generic pharmaceutical tablets
Steps before
Sample Preparation,Solution Preparation,Mixing
Steps after
Vial Sealing,Labeling,Storage,Quality Control
Input ingredients
liquid samples,research chemicals,pharmaceutical formulations
Output ingredients
lyophilized samples,freeze-dried products,stabilized pharmaceuticals
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Shelf Area
0.4 m²,1.1 m²
Shelf Spacing
80 mm
Ice Condenser Capacity
8 kg to 20 kg
Minimum Condensing Temperature
-85°C
Shelf Size (Minifast 04)
315 x 455 mm
Shelf Size (Minifast 10)
455 x 615 mm

Operating Characteristics


Integration between bench-top and GMP production scale
Connects lab-scale and production-scale lyophilisers
R,D flexibility
Pilot scale for small production batches
Shelf interdistance
80 mm as standard
Condensing temperatures
Minimum of -85°C
Automation level
PLC Controlled

Product type Characteristics


Scale of Use
Pilot scale for R,D and small production batches

Physical Characteristics


Machine footprint
Compact design for laboratory settings
Shelf Area
0.4 m2 and 1.1 m2
Shelf Interdistance
80 mm as standard
Ice Condenser Capacity
8 kg to 20 kg
Chamber Material
Rectangular chamber in AISI 304L
Shelf Design
IMA Life patented FUSION™ design

Custom Options


Chamber Material
AISI 304L
