Pick & place robot for packing tubes in boxes

Efficiently streamline your packaging line with this compact case packer, designed to seamlessly integrate with tube filling systems for high-speed, precise packing of various tube sizes into shipping boxes.

Packs and Seals Tubes into Boxes

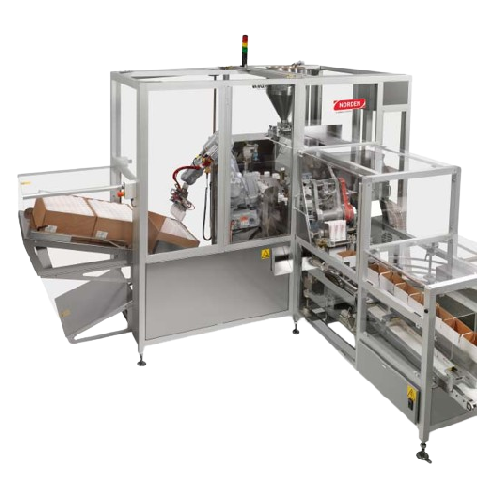

The Norden Compact Case Packer is an engineered-to-order solution designed to efficiently pack and seal tubes into shipping boxes, optimizing packaging processes in the home care, personal care, and food industries. It handles a range of tube diameters—up to 50 mm—commonly used in products like shampoos, conditioners, lotions, and more. Integrating seamlessly with Norden’s NM series tube filling machines, it supports high-speed operations up to 500 containers per minute. The compact design minimizes floor space while reducing the need for operator intervention. Equipped with precision sealing and PLC control, it ensures reliable performance and easy integration into existing production lines. Compliant with rigorous food and safety regulations, it meets CFR Title 21 and multiple EN ISO standards, ensuring robust safety and quality controls. The system is available with customization options for packaging materials and dimensions, empowering manufacturers to effectively match their product lines and operational requirements.

Benefits

  • Enhances efficiency by reducing floor space and manual handling.
  • Supports flexible production with compatibility for various tube and box sizes.
  • Integrates seamlessly with existing tube filling operations, minimizing setup time.
  • Ensures regulatory compliance for safety and quality across food and personal care applications.
  • Lowers operational costs with minimal maintenance and easy-to-use control systems.

General


Applications
Sauces,Spreads,Personal care products,Deodorants,Fats,Cosmetic products,Toothpaste,Oils,Condiments,Home care products,Skin care products,Sun care products,Hair care products,Liquid soaps
End products
Almond butter,Aerosol deodorants,Hair serum,Conditioner,Olive oil,Chocolate spread,Sunscreen lotion,Coconut oil,Butter,Mustard,Moisturizing cream,Ketchup,Hair gel,Liquid hand soap,Mayonnaise,Body lotion,Shampoo,Roll-on deodorants,Whitening toothpaste,Gel toothpaste
Steps before
Tube Filling,Sealing
Steps after
Loading on Pallets,Shipping
Input ingredients
tubes,plastic tubes,laminate tubes,aluminum tubes,tubes up to 50 mm diameter,tube filling materials
Output ingredients
packed shippers,boxed tubes,sealed packages,cases with 6-12 tubes,cardboard packaging
Market info
Norden Machinery, part of the Coesia Group, is renowned for its expertise in designing and manufacturing advanced tube filling machines, particularly for the pharmaceutical, cosmetics, and food industries, emphasizing precision and high-speed performance.

Technical Specifications


Operating mode
Intermittent
Max pack height
260 mm
Min pack height
130 mm
Max pack length
210 mm
Min pack length
113 mm
Max pack width
160 mm
Min pack width
78 mm
Machine depth
3300 mm
Machine height
1500 mm
Machine length
3300 mm
Machine weight
650 kg
Tube diameter
up to 50 mm
Tubes per case
6-12
Packaging material
Cardboard
Packaging closing
Sealing
Packaging type
Plastic in paperboard

Operating Characteristics


Working mechanism
Pick,Place robot
Integrated steps
Automatic packaging and palleting
Batch vs. continuous operation
Intermittent
Automation level
Fully integrated with tube filling machine
Changeover time
Minimal due to integrated control panel settings
Cleaning method
Manual


Food Regulations
CFR Title 21,1935/2004/EC,2023/2006/EC
Safety Regulations
EN ISO 13732-1,2009/105/EC,94/9/EC,97/23/EC,EN ISO 10218-2,EN ISO 11161,EN ISO 12100,EN ISO 13849-1,EN ISO 13849-2,EN ISO 13850,EN ISO 13855,EN ISO 13857,EN ISO 14119,EN ISO 14122-1 -2 -3 -4,EN ISO 4414,EN ISO 7010,EN 349,EN 415-4,EN 547-1 -2 -3,EN 614-1 -2,EN 619,EN 953,IEC 60204-1,IEC 60529,IEC 60825-1,IEC/TS 62046,ISO/TR 14121-2,2014/30/EU,2006/42/EC,2014/35/EU

Physical Characteristics


Machine depth
3300 mm
Machine height
1500 mm
Machine length
3300 mm
Machine weight
650 kg
Max pack height
260 mm
Min pack height
130 mm
Max pack length
210 mm
Min pack length
113 mm
Max pack width
160 mm
Min pack width
78 mm

Custom Options


Compact footprint
Yes
Control panel type
Integrated with NM tube filling machine
Integration possibilities
Fully integrated with NM 702 and NM 902 tube filling machines
