pharmaceutical-tablet hardness testing system

Ensure consistent tablet quality and compliance with pharmacopeia standards by automatically measuring critical parameters like thickness, weight, and hardness, all while maintaining efficient data management for streamlined pharmaceutical production.

Automates Tablet Hardness and Dimensional Testing

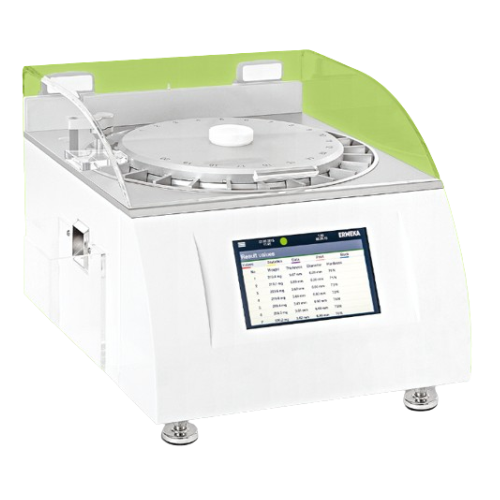

The EasyCheck from ERWEKA GmbH is a fully automated tablet hardness tester, designed to streamline quality control in pharmaceutical and supplement production. It excels with its integrated load cell for accurate weight measurements and Oblong Slider technology for precise alignment of oblong tablets, ensuring consistent width, length, and hardness assessments. Users can effortlessly store up to 100 test methods, managing a staggering 1 million test results on the unit, while benefiting from paperless audit trails and data exports in CSV and XML formats. The compact, user-friendly design integrates seamlessly into laboratories, optimizing workflow with its intuitive touch display and USB keyboard support for data input. Built with a robust star-shaped rotary magazine, it accommodates 20 samples, providing full visual inspection capability. The EasyCheck is 21 CFR Part 11 compliant, meeting rigorous pharmacopeial standards, and is ideal for processing applications in pharmaceutical and biotech industries, including aspirins, multivitamin supplements, and herbal tablets. With options for extensive calibration and maintenance ease, it promises advanced functionality and high user convenience.

Benefits

  • Enhances quality assurance by automating precise hardness and dimensional testing.
  • Minimizes human error with integrated weight measurement and alignment technology.
  • Streamlines data management with large storage capacity and export capabilities.
  • Facilitates compliance with pharmaceutical standards through 21 CFR Part 11 compatibility.
  • Simplifies operation with intuitive touchscreen interface and USB keyboard support.

General


Applications
Supplements,Vitamins,Fine chemicals,Pharmaceutical tablets,Nutraceuticals
End products
Ibuprofen tablets,Antihistamine tablets,Vitamin c tablets,Iron supplements,Herbal supplements,Multivitamin supplements,Calcium tablets,Protein supplements,Omega-3 capsules,Aspirin tablets
Steps before
Mixing,Granulating,Filling,Dosing,Coating
Steps after
Packing,Coating,Tablet Pressing
Input ingredients
tablets
Output ingredients
tablet weight,thickness,diameter,length,width,hardness
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Compliance
Compliant with all common pharmacopeias
Parameters
Up to 5 test parameters
Weight Measurement
Automated,high accuracy with load cell
Data Storage Capacity
1 million test results
Data Export Formats
CSV and XML format
Touch Display
Intuitive interface
Audit Trail
21 CFR Part 11 compliant
Oblong Slider®
Automatic alignment for oblong tablets
Star-shaped Rotary Magazine
20 test positions
Sample Visual Inspection
Full visual inspection available
Calibration
Extensive integrated calibration functions

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Batch
Cleaning method
Manual
Integrated weight measurement
Automated
Alignment system
Oblong Slider®
Data management
CSV/XML export
Storage capacity
1 million test results
Display type
Intuitive touch display

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


Pharmacopeia Compliance
Yes,compliant with all common pharmacopeias
21 CFR Part 11 Compliance
Yes,audit trail light feature

Physical Characteristics


Compact footprint
Compact system
Control panel type
Intuitive touch display
Discharge method
Star-shaped rotary magazine

Custom Options


Control panel type
Intuitive touch display
Data export formats
CSV,XML
User interface support
USB keyboards
Test memory capacity
1 million test results
Tablet alignment technology
Oblong Slider®
