Pharmaceutical roller compaction solution

Optimize your pharmaceutical tablet production with precision granulation and compaction, ensuring consistent quality and efficiency in every batch, from active ingredients to final solid dosage forms.

Compacts and Granulates Pharmaceutical Powders

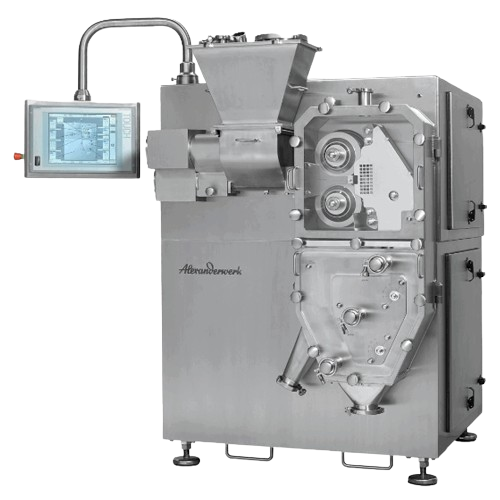

The BT 120 Pharmaceutical Roller Compactor from Alexanderwerk offers precision dry granulation and compaction for pharmaceutical applications. Engineered to process up to 8 kg/h of lactose powder, it employs a dual-roller system for consistent particle size reduction. Catering to both standalone and bench-top operations, it integrates smoothly with existing production lines through automation solutions, providing full process control and batch reporting. Its modular design ensures easy disassembly for maintenance and cleaning without special tools. Conforming to GMP standards, the BT 120 is adept at handling a range of materials, including moisture-sensitive active ingredients and herbal extract granules, making it an ideal choice for pharmaceutical manufacturers focused on efficiency and quality.

Benefits

  • Enhances product quality with consistent granule size and density.
  • Minimizes operational costs by eliminating the need for wetting and drying stages.
  • Supports both pilot and commercial production without additional investment.
  • Reduces changeover time with tool-free disassembly and cleaning.
  • Meets GMP standards for reliable pharmaceutical manufacturing.

General


Applications
Immediate release drugs,Pharmaceutical tablets,Pharmaceutical powder,Inactive compounds,Herbal extracts,Active ingredients,Controlled release drugs
End products
Herbal extract granules,Fast release paracetamol,Ibuprofen active ingredient,Lactose powder,Aspirin tablets,Paracetamol tablets,Dicalcium phosphate powder,Sustained release metformin
Steps before
Material Preparation,Powder Blending,Feeding System Setup
Steps after
Size Reduction,Product Quality Control,Tablet Pressing,Capsule Filling,Coating
Input ingredients
dry powder,solid materials,inactive compounds,fillers,preservatives,excipients,coloring agents,active ingredients,herbal extracts,controlled release drugs,immediate release drugs
Output ingredients
granulates,granules,compacted material,pharmaceutical products,pills,capsules,tablets
Market info
Alexanderwerk is renowned for manufacturing specialized machinery and equipment for the pharmaceutical, chemical, and food industries, particularly known for their high-quality roller compaction and granulation technologies, which enhance production efficiency and product quality.

Technical Specifications


Roller Diameter
120 mm / 4.724 inch
150 mm / 5.905 inch
200 mm / 7.874 inch
Roller Width
25 mm / 0.984 inch
40 mm / 1.575 inch
50 mm / 1.969 inch
75 mm / 2.953 inch
Throughput,Continuous Operation
up to 8 kg/h
40 kg/h
150 kg/h
400 kg/h
Maximum Press Force
20 kN/cm
Maximum Roller Gap
4 mm
5 mm
Maximum Roller Speed
15 rpm
40 rpm
38 rpm
Approx. Weight incl. Control System
425 kg / 937 lbs
800 kg / 1,763.7 lbs
1,700 kg / 3,747.9 lbs
2,050 kg / 4,519.48 lbs
Approx. Dimensions (w x d x h)
1 x 0.6 x 0.9 m
1.5 x 0.9 x 1.8 m
1.5 x 1.5 x 1.8 m
1.7 x 1.3 x 1.9 m
Approx. Dimensions [inch] (w x d x h)
39.4 x 35.3 x 23.6 inch
59.1 x 35.4 x 70.9 inch
66.9 x 51.2 x 74.8 inch

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
Quick changeover and cleaning
CIP/SIP
Modular design allows cleaning without special tools
Energy efficiency
Lower operational costs by eliminating wetting and drying stages
Cleaning method
Easy disassembly and cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Roller Diameter
120 mm / 4.724 inch
Roller Diameter
150 mm / 5.905 inch
Roller Diameter
200 mm / 7.874 inch
Roller Width
25 mm / 0.984 inch
Roller Width
40 mm / 1.575 inch
Roller Width
50 mm / 1.969 inch
Roller Width
75 mm / 2.953 inch
Control panel type
Integrated or separate
Dimensions (BT 120)
1 x 0.6 x 0.9 m (39.4 x 23.6 x 35.4 inch)
Dimensions (WP 120)
1.5 x 0.9 x 1.8 m (59.1 x 35.4 x 70.9 inch)
Dimensions (WP 150)
1.5 x 1.5 x 1.8 m (59.1 x 35.4 x 70.9 inch)
Dimensions (WP 200)
1.7 x 1.3 x 1.9 m (66.9 x 51.2 x 74.8 inch)

Custom Options


Control panel type
Integrated into machine frame
Modular design
Yes
Automation solutions
Full visualization of process control
Cantilever roll design
Easy changeover and cleaning
Model type
Benchtop or standalone
