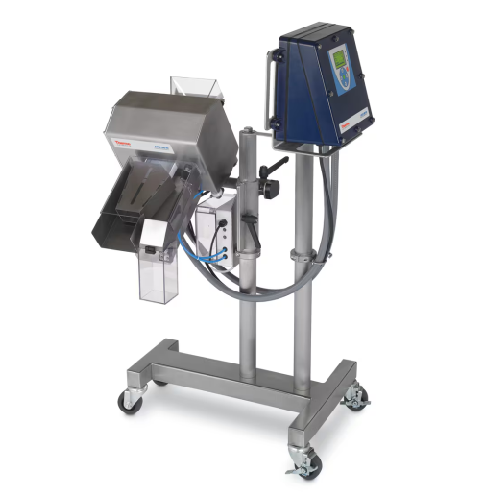

Pharmaceutical metal detector for tablet presses and capsule filling

Detect and eliminate metal contaminants in high-speed pharmaceutical production lines, ensuring product integrity and compliance with stringent regulatory standards.

Detects Metal Contaminants in Pharmaceuticals

The APEX 500 Rx Pharmaceutical Metal Detector from Thermo Scientific offers robust metal detection capabilities tailored for the pharmaceutical industry. This equipment is designed to detect metal contaminants as small as 0.3 mm in tablets and capsules, ensuring adherence to stringent quality standards. Utilizing a multi-coil system, it remains unaffected by product effects or environmental changes, maintaining high sensitivity across varied operational conditions. The detector supports tablet presses and capsule filling operations, processing up to 500,000 units per hour. Constructed with FDA-approved materials and housed in a stainless steel case, it operates within a temperature range of -10°C to +40°C. The system is PLC-controlled and offers modular communication through optional ModBus or Ethernet. It meets GMP and FDA compliance requirements, backed by ISO9001 certification. Maintenance is streamlined through user-friendly disassembly features, and the design includes height and angle adjustments for integration into existing production lines.

Benefits

  • Enhances product safety by detecting metal contaminants as small as 0.3 mm.
  • Increases production efficiency with processing speeds up to 500,000 tablets or capsules per hour.
  • Maintains operational reliability regardless of environmental fluctuations, ensuring consistent quality control.
  • Facilitates compliance with GMP and FDA standards, minimizing regulatory risks.
  • Simplifies maintenance and cleaning, reducing downtime and operational costs.

General


Applications
Capsule filling,Tablet presses,Pharmaceutical tablets,Pharmaceuticals
End products
Ibuprofen tablets,Gelatin capsules,Antihistamine tablets,Multivitamin capsules,Vitamin c tablets,Probiotic capsules,Fish oil capsules,Aspirin tablets,Paracetamol tablets,Coated tablets
Steps before
Tablet Pressing,Capsule Filling
Steps after
Dedusting,Performance Verification,Packaging
Input ingredients
tablet presses,capsule filling,deduster applications,pharmaceutical products
Output ingredients
rejected metal contaminants,validated pharmaceutical products
Market info
Thermo Fisher Scientific is renowned for providing innovative scientific instruments, laboratory equipment, and engineered-to-order solutions across various industries, esteemed for their high-quality products and expertise in life sciences, pharmaceuticals, and biotechnology sectors.

Technical Specifications


Sensitivity
Detects metal contaminants as small as 0.3 mm
Electrical Requirements
85/260 V AC single phase plus earth ground
47/65 Hz,100 watts max.
Speed
0.5 m/min. (1.7 ft./min.) to 100 m/min. (330 ft./min.)
Operating Temperature
-10°C to +40°C (14°F to 104°F)
Air Supply
5.5 bar (80 psi) nominal,4 bar (60 psi) minimum
IP Rating
Type 3 enclosure
Relative Humidity
20 to 80% non-condensing
Construction
Stainless steel 304 straightlined case,high polish optional
Input Types
6 Inputs - Active 12VDC+ 12 V auxiliary supply for input sensors
Output Types
6 Relays outputs
Relays
250 volt AC 2 amp max. 50 volt DC 1 amp max.
Communications
Optional ModBus serial or Ethernet modules

Operating Characteristics


Sensitivity
Detects metal contaminants as small as 0.3 mm
Product throughput
Up to 500K tablets or caplets per hour
Operating speed
0.5 m/min. to 100 m/min.
Operating temperature
-10°C to +40°C
Automation level
Solid-state,touch operation control panel with icon-driven interface
Height and angle adjustment
Adjustability handles
Cleaning method
Easily accessible rejecter assembly/disassembly for quick cleaning
Performance verification
Thermo Scientific™ Quality Assurance Test (QAT) and AuditCheck features

Material Compatibility


Cleanability
FDA approved plastics
Corrosive resistance (e.g. acids)
Stainless steel 304

Physical Characteristics


Construction Material
Stainless steel 304
Case Design
Straightlined
Enclosure Type
Type 3
Aperture Sizes
Custom fit for production line
Control Panel Type
Solid-state,touch operation

Custom Options


Control panel type
Solid-state,touch operation control panel with icon-driven interface
Aperture sizes
Custom fit for your production line
Adjustability
Height and angle adjustment handles
