Pharmaceutical freeze dryer for medium scale production

Ensure optimal preservation of active ingredients through precise moisture removal, enhancing the stability and shelf life of pharmaceutical and nutraceutical products.

Removes Moisture from Pharmaceuticals and Nutraceuticals

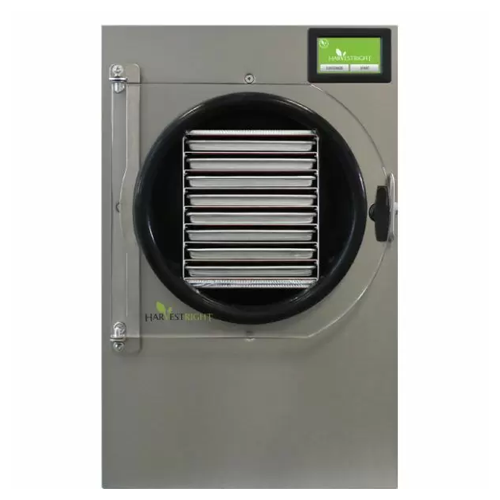

The Harvest Right Pharmaceutical Medium Freeze Dryer offers an effective solution for moisture removal in pharmaceuticals and nutraceuticals. It specializes in lyophilization and freeze-drying processes, ensuring the stability and longevity of sensitive compounds such as powdered antibiotics and protein supplements. This freeze dryer features 6.5 square feet of tray space, accommodating 7 trays for optimal processing capacity. Equipped with a 7.2 CFM vacuum pump, it guarantees efficient ice removal and smooth operation under various environmental conditions. The dryer is designed for batch and manual operations, making it suitable for medium-scale production. Its robust construction supports diverse industries including pharmaceuticals, food and beverage, and life sciences, while meeting stringent standards for GMP compliance. The optional industrial pump enhances performance with reduced power consumption, quieter operation, and less frequent maintenance needs. Customization options and technical support are available to meet specific production requirements.

Benefits

  • Ensures product integrity and extends shelf life through effective moisture removal.
  • Enhances operational efficiency with a quieter and more energy-efficient industrial vacuum pump.
  • Minimizes maintenance with long-lasting oil and filters, reducing downtime.
  • Facilitates compliance with GMP standards for pharmaceutical production.
  • Offers flexibility for medium-scale production across diverse applications.

General


Applications
Vitamins,Supplements,Nutraceuticals,Plant extracts,Biopharmaceuticals,Enzymes,Food ingredients,Pharmaceuticals
End products
Instant soup bases,Lipase enzymes,Vitamin c tablets,Insulin formulations,Ginseng extracts,Powdered antibiotics,Protein supplements,Omega-3 capsules
Steps before
material preparation,extraction,emulsification,formulation,freezing
Steps after
packaging,sterilization,storage,quality control
Input ingredients
pharmaceutical samples,biological samples,herbs,plants
Output ingredients
freeze-dried pharmaceutical products,freeze-dried biological products,herbal concentrates,dried plant materials
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Tray Space
6.5 square feet
Tray Dimensions
7.5″ W x 18″ L x 0.75″ H
Number of Trays
7
Ice Capacity
4 liters
Vacuum Pump Rating
25 microns
CFM
7.2
Motor Power
3/4 HP
Motor Speed
1725 RPM
Voltage
Standard 115V 60Hz
Plug Type
US 110V
Intake Port Size
3/4 JIC flare
Intake Port Capacity
21 oz (680 cc)
Pump Dimensions
10 1/2″ H x 16″ D x 5 3/4″ W
Pump Weight
35 lbs
Noise Level
52 decibels (Industrial Pump)
Power Usage
187 watts (Industrial Pump)
Amperage
1.7 amps (Industrial Pump)
Pump Weight
32 lbs (Industrial Pump)

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Manual / Optional Upgrade to More Automated
Energy efficiency
Requires less power
Industrial pump is more efficient
Noise Level
52 decibels (Industrial Pump)
Cleaning and Maintenance
Easily maintainable with rare oil change for industrial pump

Material Compatibility


Biological compatibility
Yes/No
Corrosive resistance (e.g. acids)
Yes/No
Cleanability
Easy/Moderate
Abrasion resistance
High/Medium/Low

Physical Characteristics


Tray size
7.5″ W x 18″ L x 0.75″ H
Total tray space
6.5 square feet
Shelving unit capacity
7 trays
Ice capacity
4 liters
Vacuum pump dimensions
10 1/2″ H x 16″ D x 5 3/4″ W
Vacuum pump weight
35 lbs

Custom Options


Vacuum pump type
Standard / Oil-free
Delivery liftgate service
Yes / No
Shelving configuration
7 trays,6.5 sq ft
Tray size
7.5″ W x 18″ L x 0.75″ H
