Perforated disc mill for food and chemical processing
Streamline your processing workflow with a versatile solution that excels at transforming solid materials into fine granules, mashes, or purees, efficiently meeting the demands of diverse product formulations.
Processes and Comminutes Fruits, Vegetables, and Chemicals

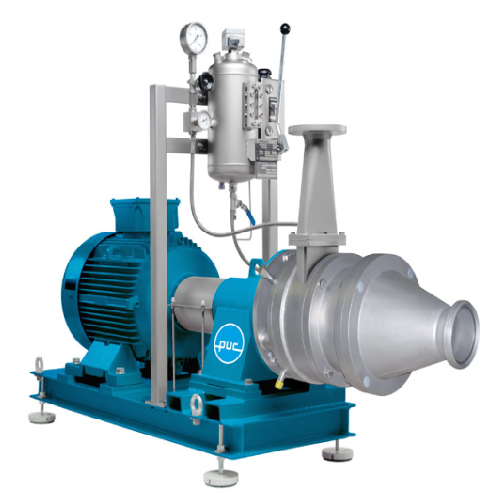

The Perforated Disc Mill Type EL by Probst & Class is engineered for industrial food, chemical, and cosmetic processing, leveraging German-made high-quality components. It features a knife bar that rotates near a perforated disc, where cutting and impact forces efficiently comminute products. This design accommodates applications such as producing fruit puree, vegetable mash, ground meat, soy milk, and more. The mill’s capacity ranges from 150 to 20,000 kg per hour, depending on material processed. Equipped with interchangeable discs of varying hole diameters, it enables precise customization for different end-products. The Type EL supports seamless integration into existing production lines with its horizontal, in-line operation. Users can utilize their standard B3 motors thanks to the adaptable bearing block system, ensuring compatibility and performance optimization. This equipment complies with FDA standards, offering various mechanical seals, including PTFE lip seals, facilitating installation and maintenance. Optional features include ATEX certification, sterilization capability, and frequency converters for energy efficiency and versatility.
Benefits
- Enhances production efficiency with high throughput capacities up to 20,000 kg per hour.
- Facilitates precise product customization via easily interchangeable perforated discs.
- Supports seamless integration with standard B3 motors, reducing retrofit costs.
- Meets strict FDA compliance for safe processing in food and pharmaceutical applications.
- Offers versatile application across multiple industries, improving equipment ROI.
- Applications
- Soaked paper,Meat,Soy beans,Cosmetic products,Chemical products,Foodstuffs,Vegetables,Fruit
- End products
- Vegetable mash,Pulped paper,Soy milk,Cosmetic lotions,Processed food ingredients,Ground meat,Emulsions,Fruit puree
- Steps before
- Mashing,Pre-comminution,Preparation of raw materials
- Steps after
- Homogenizing,De-aeration,Mixing,Packaging
- Input ingredients
- lumpy solid pieces,fruit,vegetables,meat,soy beans,foodstuffs,chemical products,cosmetic products,soaked paper
- Output ingredients
- crushed materials,mashed materials,pre-comminuted soy beans,processed foodstuffs,processed chemical products,processed cosmetic products,comminuted soaked paper
- Market info
- Probst und Class is known for manufacturing high-performance industrial homogenizers and wet milling equipment, offering customized solutions for dispersing, emulsifying, and grinding applications, with a strong reputation for quality and innovation in the process industry.
- Operation type
- In-line
- Motor type
- Standard B3 motors
- Capacity
- 150–20,000 kg/h
- Mechanical seals
- Single and double-acting
- Seal type
- Lip seals (PTFE)
- Comminution
- Knife bar and perforated disc
- Working mechanism
- Knife bar rotation with perforated disc
- Flow type
- Horizontal,in-line operation
- Batch vs. continuous operation
- Continuous
- Motor compatibility
- Standard B3 motors
- Cleaning method
- Easy replacement of discs
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Agglomeration risk
- Low Risk
- FDA materials
- PTFE seals compliant
- ATEX certification
- Explosion-proof version available
- Machine footprint
- Horizontal
- Operation type
- In-line
- Motor type
- Standard B3 motors
- Capacity
- 150–20,000 kg/h
- Discharge method
- Driver wheel or impeller
- Motor type
- Standard B3 motors
- Seal options
- Single and double-acting mechanical seals,lip seals (PTFE)
- Drive system
- Standard motors
- Disc hole diameter
- Various,depending on application
- Explosionproof option
- ATEX version available
- Sterilization design
- Version designed for sterilization
- Mobility
- Skid/mobile version available
- Frequency converter
- Available
- Pump feed/discharge
- Feed and discharge pump options
- Motor efficiency
- IE3 standard motors for various voltages and frequencies
