Pelletizer for pharmaceutical and biotech applications
In the pharmaceutical and biotech sectors, producing uniform pellets from powders and granulates is crucial for consistent product quality. There is a need for reliable and scalable pellet formation technology to achieve desired pellet size and density.
Form uniform pellets with adjustable pan angle.

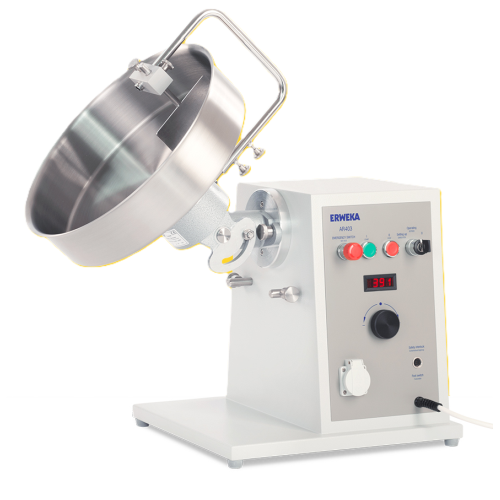

The Pelletizer GTE from ERWEKA GmbH is designed to be an efficient tool for pelletizing powders and granulates. It attaches to the AR 403 via the Universal Gear UG, allowing for the adjustment of the operating angle to optimize the pelletizing process. The 300 mm diameter and 9.5-liter capacity pan uses rotary motion to carry the product to the top and then allows it to flow down evenly. The addition of liquid converts the material into pellets, and the final pellet size is controlled by adjusting the pan angle and liquid amount. Stainless steel construction ensures product purity and durability. The system supports both manual and continuous feeding, making it suitable for various production scales.
Benefits
- Adjustable operating angle for precise pellet size control
- Suitable for both manual and continuous feeding
- Stainless steel parts for easy cleaning and high purity
- Scalable for different production needs
- Efficient and even pellet formation process
