Ped-compliant vacuum conveyor for powder transfer

Achieve safe and efficient powder transfer in pressure environments with stainless steel construction and integrated inertization, perfect for handling aggressive chemicals and sensitive pharmaceutical ingredients.

Transports and Inertizes Corrosive and Pharmaceutical Powders

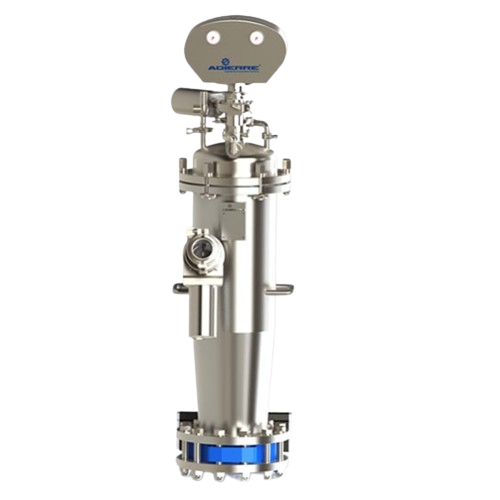

The VTS – Conveyor in esecuzione PED by AGIERRE is engineered to offer seamless vacuum-based powder transfer while complying with PED standards. Crafted entirely from AISI 316L stainless steel, it features a mirror-polished finish for superior corrosion resistance, ideal for handling aluminum chloride and other aggressive compounds. This system is versatile, accommodating both overpressure and inertization configurations, making it suitable for pharmaceuticals and chemical synthesis processes. The conveyor integrates easily into existing lines, featuring a Clean-In-Place (CIP) system for efficient maintenance. With options for customization, it meets the cGMP guidelines and offers precise engineering support for unique process requirements.

Benefits

  • Ensures safe handling of corrosive and sensitive powders through PED compliance.
  • Reduces contamination risk with integrated Clean-In-Place system.
  • Offers flexibility in process configurations with inertization and overpressure options.
  • Enhances corrosion resistance with AISI 316L stainless steel construction.
  • Supports custom engineering solutions to meet specific process needs.

General


Applications
Pharmaceutical powder,Chemical products,Fine chemicals
End products
Corrosive chemicals,Aggressive chemical compounds,Active pharmaceutical ingredients (apis),Chemical synthesis intermediates,Fine pharmaceutical powders,Aluminum chloride
Steps before
Material Staging,Bulk Ingredient Preparation,Reactor Loading,Initial Inspection
Steps after
Reactor Discharge,Powder Filling,Packaging,Final Inspection
Input ingredients
polveri,cloruro di alluminio,materiali corrosivi,prodotti chimici aggressivi
Output ingredients
polveri acide
Market info
Agierre is known for its expertise in designing and manufacturing customized engineered-to-order industrial equipment, with a strong reputation for innovation, quality, and delivering tailored solutions to meet specific client needs in various industries.

Technical Specifications


Material
Stainless Steel AISI 316L
Sheet Thickness
30/10
Finish
Mirror polished interior and exterior
Connection Type
Flanged,with wing nuts or clamp
Pressure Classification
P.E.D. Directive 97/23/EC
Configuration Options
Overpressure/Inertization
Cleaning Integration
C.I.P. and S.I.P. system
Compliance
cGMP guidelines,UNI EN ISO

Operating Characteristics


Working mechanism
Vacuum Conveyor
CIP/SIP
Integrated CIP and SIP
Batch vs. continuous operation
Batch
Inertization
Available
Pressure Configuration
Sovrappressione
Design Flexibility
Customizable for process requirements

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel AISI 316L for high resistance
Cleanability
CIP / SIP capable
Density/particle size
Powders such as aluminum chloride


P.E.D. compliance
Directive 97/23/CE
GMP Compliance
cGMP guidelines

Physical Characteristics


Material
Stainless steel AISI 316L
Sheet thickness
30/10
Finish
Mirror polish internally and externally
Connection type
Flanged with clamps or wingnuts
Footprint
Compact
Customization
Process specific customization available
Configuration types
Overpressure / Inertization

Custom Options


Material Construction
Stainless Steel AISI 316L
Configuration
Sovrappressione / Inertizzazione
Surface Finish
Specular Mirror Finish
Connection Type
Flanged,with clamps or wing nuts
Cleaning System
Integrated CIP/SIP
Pressure Equipment Directive Compliance
PED 97/23/CE
Design Standards
cGMP Guidelines,UNI EN ISO
