Paste filling system for high viscosity products

Efficiently fill high viscosity products with precision and speed, reducing operational downtime and ensuring consistent product quality for demanding production schedules.

Fills and Dispenses High Viscosity Products

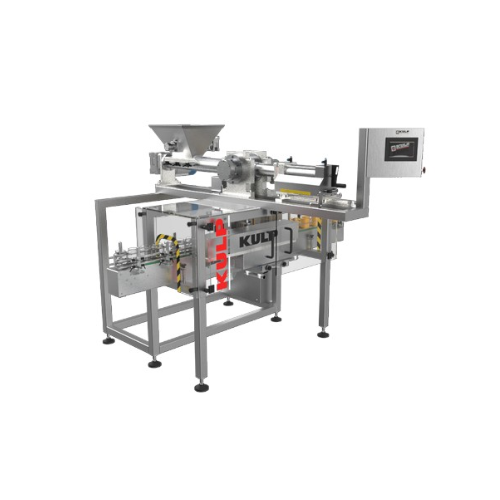

The Paste Filling Machine from Kulp Makina delivers exceptional precision in handling high viscosity products like nut butters and Moroccan black soap. Utilizing a volumetric filling system with a pneumatic and electronic working principle, this machine efficiently dispenses up to 800 packages per hour with a filling accuracy of ±1%. It features a user-friendly touch screen interface and a no-container-no-fill system, ensuring streamlined operation. The equipment integrates seamlessly into processing and packaging lines with its 2-meter conveyor and adjustable side rails. Constructed with 316L stainless steel for product-contact parts, it adheres to food hygiene standards, meeting the demands of food, beverage, and cosmetics industries. Cleaning and maintenance are simplified with easy disassembly via tri-clamps, and the system operates with an agitator in the hopper for consistent product flow.

Benefits

  • Increases filling accuracy, minimizing product wastage and contamination.
  • Enhances operational efficiency with a capacity of up to 800 packages per hour.
  • Simplifies maintenance and cleaning with easily disassembled components.
  • Supports diverse high viscosity applications in food and cosmetics industries.
  • Ensures compliance with food hygiene standards, safeguarding product integrity.

General


Applications
Spreads,Nut butters,Black soap,Pastes,High viscosity products
End products
Pistachio spread,Peanut butter,Date spread,Moroccan black soap,Almond butter,Hazelnut spread
Steps before
Grinding,Mixing,Emulsification
Steps after
Packing,Labeling
Input ingredients
high viscosity product,hazelnut paste,hazelnut butter,pistachio paste,almond paste,peanut paste,date paste,Moroccan soap
Output ingredients
filled packages,800 packages per hour
Market info

Technical Specifications


Automation
PLC-controlled
Capacity
800 packages per hour
Filling accuracy
±1%
Compressed Air Usage
6 bars,800 lt/min
Operating Temperature
+5 ºC to +85 ºC
Electrical connection
Three phase (380v / 50-60 Hz)
Filling Method
Volumetric filling system

Operating Characteristics


Working mechanism
Pneumatic and electronic
Integration steps
Feeding screw,in-feed screw,filling cylinder
Automation level
User-friendly touch screen Interface
Batch vs. continuous operation
Batch
Cleaning method
Tri-clamps for easy disassembling
Changeover time
Facilitated by tri-clamps
No container-No fill system
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
High Viscosity
Container size and shape
Various Sizes
Heat sensitivity
+5 ºC to +85 ºC
Foaming
Anti Dropping System
Filling accuracy
± 1%


Food Hygiene Standards
Yes

Physical Characteristics


Discharge method
Volumetric filling system with feeding screw
Control panel type
User friendly touch screen interface
Container type
Various sizes with adjustable side rails

Custom Options


Control panel type
Touch screen interface
Discharge method
Adjustable side rails conveyor
