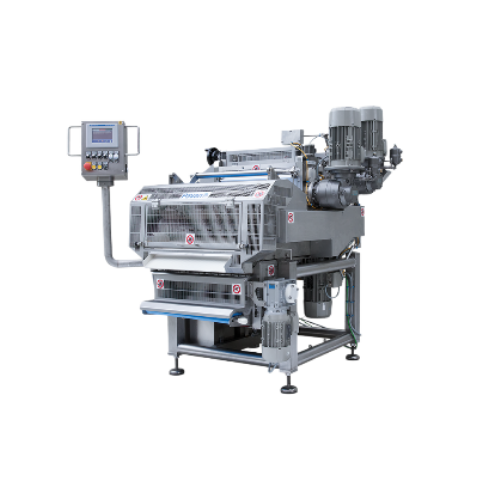

Pasta sheet forming machine for ravioli and cappelletti

Achieve precision pasta forming with consistent thickness and high-speed cutting, enhancing production efficiency and product quality for ravioli and cappelletti.

Forms and Shapes Fresh Pasta Sheets

The GEA FreshPasta Former 1 C540 and C630 are sheet forming machines designed to elevate your fresh pasta production. These machines streamline pasta forming into precise shapes like cappelletti and ravioli, reducing material waste with a scrap cutter system and ensuring consistent filling integration via an alternating screw pump. The GEA units employ a double calibrating system that meticulously controls dough thickness, enhancing uniformity across batches. Operating at a cruising speed of up to 200 hits per minute, these machines efficiently handle wide pasta sheets, adapting to varying thickness requirements between 0.5-1.5 mm. A desmodromic camshaft-driven molding mechanism offers precise and rapid mold transitions, minimizing downtime with a quick-change feature. Built with stainless-steel components, they are designed for easy washing and maintenance, adhering to hygiene standards critical for food production. This equipment caters to high-speed, continuous operations in the food, pasta, and fresh pasta processing industries, delivering automatic handling of solid and slurry-type products, with engineering support available for tailored configurations.

Benefits

  • Enhances production efficiency with synchronized filling and cutting processes.
  • Minimizes material waste through precise scrap cutting and reusable design.
  • Ensures product consistency by maintaining constant dough thickness and pressure during forming.
  • Simplifies maintenance and cleaning with tool-free mold changes and washable stainless-steel construction.
  • Supports rapid production adjustments with quick mold changes in under five minutes.

General


Applications
Breakfast cereals,Ravioli,Snack foods,Fresh pasta
End products
Cappelletti
Steps before
Dough Preparation,Sheet Forming
Steps after
Product Closing,Scrap Cutting,Packing
Input ingredients
pasta sheet,filling material
Output ingredients
cappelletti,ravioli,filled pasta
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Cruising speed
200 hit/min (ravioli)
Sheet width
540 mm
Final product thickness
0.5-1.5 mm
Mould change time
5 minutes
Automation
Automatic filling synchronization
Material
Stainless steel
Washability
Entirely washable
Control type
Central control of thickness
Pressure regulation
Compensating piston for constant pressure

Operating Characteristics


Working mechanism
Single sheet forming
Integrated steps
Molding,cutting,filling,and closing
CIP/SIP
Entirely washable stainless-steel components
Batch vs. continuous operation
Batch
Automation level
Automatic timing and quick mould change
Energy efficiency
Cruising speed
Cleaning method
Manual,tool-free
Changeover time
Quick mould change (5 minutes)

Material Compatibility


Cleanability
Stainless-steel components
Corrosive resistance (e.g. acids)
Stainless-steel components

Product type Characteristics


Pasta types produced
Single sheet cappelletti and ravioli

Physical Characteristics


Machine footprint
Not specified
Sheet width
540 mm
Final product thickness
0.5-1.5 mm
Control panel type
HMI Interface
Discharge method
Scrap cutter system
Material
Stainless steel

Custom Options


Control panel type
HMI interface
Integration possibilities
Alternating screw pump
Mould change time
5 minutes
Knurling rollers and forks
Independent rack adjustment
Scrap cutter placement
Extractable carriage
Calibrating group connection
Feeding belt
Filling process synchronization
Alternating screw pump
Mould type
Desmodromic camshafts
