Palletizing grouping system for non-returnable packs

For beverage and packaging lines, precise and rapid palletizing of non-returnable packs is vital for efficiency. This innovative tripod system excels in grouping and positioning packs with unmatched speed and precision, making it an essential component for streamlined production and reduced operational downtime.

Groups and Palletizes Beverage Packs Efficiently

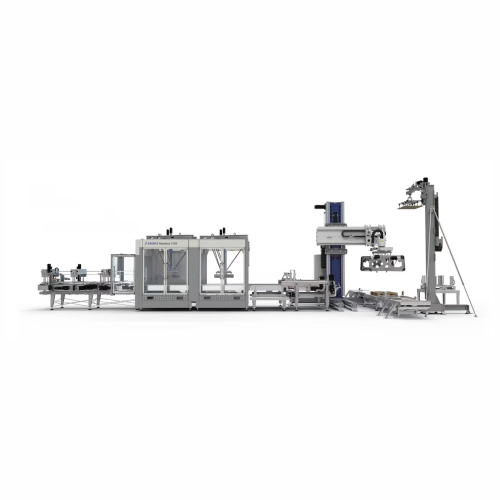

The Robobox T-GS from Krones is an advanced tripod robot system designed to enhance your palletizing and grouping operations for beverage production lines. Utilizing innovative parallel kinematics, it minimizes mass movement by up to 70% compared to traditional robots, offering precise handling with its positive-fit precision grippers. This equipment is tailored for high-speed grouping and palletizing of non-returnable packs across industries such as food and beverages, efficiently managing up to 500 layers per hour. It seamlessly integrates with existing systems, featuring options for one or two-lane infeed and automatic conveyor guide adjustments. Energy-efficient, the system incorporates servo drives of IE4 efficiency class and supports energy recovery via the B&R ACOPOSmulti drive system. With a focus on sustainability, it includes features like closed lifetime-lubricated bearings and enviro-classified lubrication, ensuring reduced maintenance demands. The Robobox T-GS is perfect for beverage manufacturers, packaging companies, and logistics sectors looking for a robust, flexible solution.

Benefits

  • Optimizes production space with compact design and efficient layout.
  • Minimizes energy costs through IE4 class servo drives and energy recovery.
  • Increases productivity by processing up to 500 layers per hour.
  • Lowers maintenance expenses with reduced moving parts and streamlined design.
  • Enhances operational flexibility with quick, tool-free product changeovers.

General


Applications
Bottling lines,Non-returnable packs,Water,Alternative proteins,Pet containers,Milk and milk-based drinks,Spirits,Plant-based milk alternatives,Juice,Beverage packs,Soft drinks,Cans,Glass bottles
End products
Coconut water pet bottles,Carbonated soft drink cans,Beer glass bottles,Non-returnable soda packs,Milk pet bottles,Protein shake bottles,Whiskey glass bottles,Almond milk cartons,Kombucha glass bottles,Spirit miniatures,Plastic water bottles,Multipack beer cans,Juice tetra paks
Steps before
Conveying,Sorting
Steps after
Palletising,Packing
Input ingredients
non-returnable packs,commercial packs
Output ingredients
grouped layers,organized packs
Market info
Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.

Technical Specifications


Grouping Speed
Up to 500 layers per hour
Processing Range
All commercial non-returnable packs
Automation
With servo drives and parallel kinematics
Movement
Smooth and more harmonious
Gripping Technology
Positive-fit precision grippers
Infeed Configuration
One or two-lane input
Environmental Classification
IE4 Efficiency Class for Servo Drives
Energy Efficiency
Energy recovery via ACOPOSmultidrive system
Servo Drive Usage
No pneumatic drives and locking mechanisms
Changeover Efficiency
Quick product change-over with minimal components

Operating Characteristics


Automation level
PLC / SCADA
Changeover time
Quick product change-over
Batch vs. continuous operation
Continuous
Energy efficiency
Powered by servo drives of efficiency class IE4
Cleaning method
Minimal maintenance required

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Non-returnable packs

Physical Characteristics


Compact footprint
Reduced space requirement
Control panel type
Available for customization
Discharge method
One or two-lane pack infeed
Compact design
Modular system with minimal moving mass
Material construction
Carbon components

Custom Options


Control panel type
Customizable via HMI
Integration possibilities
Compatible with Modulpal Pro series
Gripper technology
Positive-fit precision grippers
Infeed configuration
One or two-lane
Infeed adjustment
Automatic adjustment of conveyor guides
Module configuration
Single or double-module
