Oxygen / nitrogen / hydrogen analyzers for inorganic samples
Quickly and accurately measure oxygen, nitrogen, and hydrogen levels in metals and ceramics with a robust analyzer designed for precise elemental analysis, ensuring your materials meet stringent quality standards in demanding applications.
Analyzes Oxygen, Nitrogen, and Hydrogen in Inorganic Materials

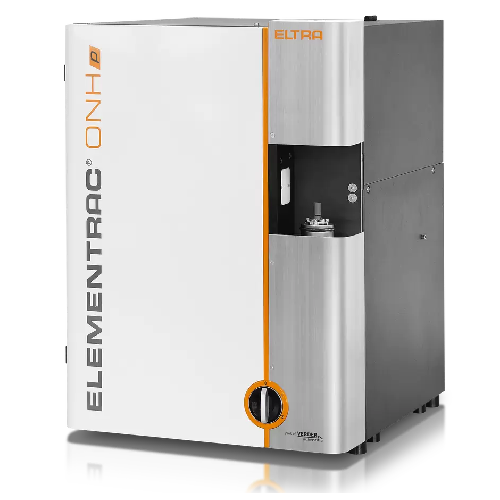

The ELEMENTRAC ONH-p 2 from ELTRA GmbH is a robust elemental analyzer designed for measuring oxygen, nitrogen, and hydrogen concentrations in inorganic materials such as metals and ceramics. Its unique closed gas system enhances sensitivity and reduces gas consumption by utilizing NDIR and thermal conductivity detectors. This equipment supports industries like metallurgy and electronics, tackling the challenge of precise elemental analysis. With its powerful 8.5 kW impulse furnace, it accurately analyzes samples up to 2 grams in size, whether they are solid, powder, or granular. This ensures optimal integration into laboratory or high-speed production environments. The ELEMENTRAC ONH-p 2 is compliant with international standards, including ASTM E 1019, and supports operations in steel, ceramics, and electronics sectors, delivering reliable results critical for rigorous quality control. Optional features such as the autoloader and autocleaner enhance operational efficiency for high-throughput demands.
Benefits
- Ensures precise material quality with reliable ONH analysis for stringent quality control.
- Increases operational efficiency with rapid analysis time of 120 to 180 seconds.
- Reduces maintenance effort with the innovative autocleaner feature that prevents deposit buildup.
- Supports diverse sample forms up to 2 grams, enhancing usability across production processes.
- Lowers operational costs with reduced carrier gas consumption via an efficient closed gas system.
- Applications
- Ceramics,Silicon,Steel,Ferroalloys,Metals,Ores,Refractory metals,Iron,Copper,Alloys
- End products
- Silicon wafers,Ferroalloy parts,Superalloy turbine blades,Refractory metal crucibles,Metal ingots,Ceramic tiles,Steel sheets,Iron castings,Aluminum panels,Copper wires
- Steps before
- Weighing,Sample Logging,Carrier Gas Flushing,Outgassing Graphite Crucible
- Steps after
- Data Output and Export,Gas Calibration,Cleaning Furnace
- Input ingredients
- rod-shaped samples,granular samples,powdery samples,steel,iron,copper,ceramics,slags,ores,alloys,aluminum,ashes,carbides,cast iron,metals,ferroalloys,refractory metals,silicon
- Output ingredients
- oxygen concentrations,nitrogen concentrations,hydrogen concentrations,CO2,data report,LIMS export
- Market info
- ELTRA Elemental Analysers is renowned for producing high-quality elemental analyzers, specializing in precise carbon, sulfur, oxygen, nitrogen, and hydrogen measurement in inorganic samples. Their reputation is built on reliability and accuracy in analytical instrumentation.
- Furnace Power
- 8.5 kW
- Furnace Temperature
- Up to 3000 °C
- Sample Size
- Up to 2 grams
- Analysis Time
- 120 - 180 seconds
- Detection Method for Oxygen
- Solid state infrared absorption
- Detection Method for Nitrogen and Hydrogen
- Thermal conductivity
- Gas Requirements
- Helium,Nitrogen,Argon
- Power Requirements
- 3~ 400 V,50/60 Hz,max. 8,500 W
- Dimensions (W x H x D)
- 56 x 78 x 64 cm
- Weight
- ~ 165 kg
- Carrier Gas
- Helium/Argon for ON,Nitrogen for OH
- Working Mechanism
- Impulse furnace with vertical sample introduction
- Integrated Steps
- Sample logging,weighing,analysis,data export
- Automation Level
- Software controlled (ELEMENTS software)
- Batch vs. Continuous Operation
- Batch operation
- CIP/SIP
- Not applicable,manual cleaning via Autocleaner option
- Cleaning Method
- Manual / Autocleaner
- Energy Efficiency
- High,through optimized carrier gas and low gas consumption
- Inorganic materials compatibility
- Steel,iron,copper,ceramics
- Corrosive resistance
- Acids
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Sample form
- Rod-shaped,granular,or powdery
- Machine footprint
- 56 x 78 x 64 cm
- Weight
- ~ 165 kg
- Sample weight capacity
- Up to 2 grams
- Sample type
- Rod-shaped,granular,powdery
- Furnace alignment
- Vertical
- Sample carrier
- Graphite crucibles
- Control panel type
- Windows-based ELEMENTS software
- Sample loading system
- Autoloader with 32 positions
- Carrier gas option
- Helium / Argon
- Configuration
- Single-element or multi-element analysis
