Ophthalmic filling solution for eye drops

Enhance your ophthalmic production line with a solution designed for precision filling and sterility, ensuring high-quality eye care products with every batch.

Fills and Caps Sterile Ophthalmic Solutions

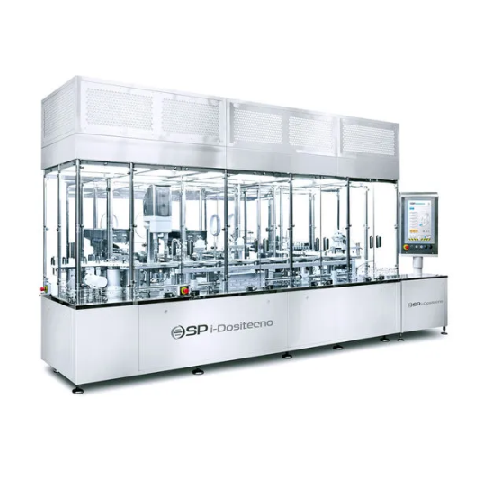

The Hull i-Dositecno Ophtha-Line™ from SP Industries is an innovative ophthalmic filling machine that excels in accuracy and sterility. Utilizing servo-driven technology, it efficiently fills and caps ophthalmic solutions, such as lubricating and preservative-free eye drops, ensuring sterile processing throughout. The system supports continuous high-speed operations, handling up to 12,000 units per hour. Designed for seamless integration into existing lines, it features a mechanical unscrambler for container sorting and feeding, along with servo-controlled nozzles for precise dosing from 0.1 mL to 250 mL. Compliant with cGMP, Annex 1, and FDA standards, it offers flexible configurations, accommodating various container types and cap systems. Siemens or Allen Bradley PLCs facilitate automation and superior control. Durable POMc change parts ensure long-term resilience, while an IQ/OQ validation package aids compliance, making it ideal for pharmaceutical and life sciences applications.

Benefits

  • Enhances production efficiency with a high throughput of up to 12,000 units per hour.
  • Ensures product sterility and compliance with regulatory standards, reducing contamination risks.
  • Offers flexibility in container and cap handling, accommodating diverse packaging requirements.
  • Streamlines operations with automated, servo-driven dosing, and assembly, lowering labor costs.
  • Facilitates quick market entry with fast turnaround and installation in cleanrooms, RABs, or isolators.

General


Applications
Ophthalmic solutions,Sterile eye care products,Eye drops
End products
Preservative-free eye drops,Lubricating eye drops,Contact lens rewetting drops,Hydrating eye solutions,Antihistamine eye drops,Antibiotic eye drops
Steps before
Container Sorting,Container Loading
Steps after
Sterilization,Capping,Labeling,Packing
Input ingredients
plastic containers,eye care solutions,eye-drops,three-piece container closures,preservative-free drop caps
Output ingredients
filled eye care products,sterile eye solutions,processed ophthalmic products
Market info

Technical Specifications


Filling speed
Up to 12,000 units per hour
Container type
Plastic containers up to 500 mL
Filling volume
0.1 mL to 250 mL
Filling nozzles
One,two,or four
Automation
PLC-controlled servo motors
Compliance
21 CFR Part 11,cGMP,GAMP5

Operating Characteristics


Filling speed
Up to 12,000 units per hour
Filling volume
0.1 mL to 250 mL
Automation level
PLC-controlled
Container type handled
Plastic containers up to 500 mL
Changeover time
Fast turnaround time
Cap handling
Pick and place for tips and caps
Cleaning method
Suitable for traditional cleanrooms,RABs,or isolators
Sterility level
Ultimate sterility

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Size
Up to 500 mL

Physical Characteristics


Control panel type
Siemens or Allen Bradley PLC
Discharge method
Straight line with servo-driven filling nozzles
Container type
Plastic containers up to 500 mL
Container feed method
Innovative,oversized mechanical unscrambler

Custom Options


Integration possibilities
Configurable for various container sizes and closures
Pick and place system
Up to 4-channel for tips and caps
