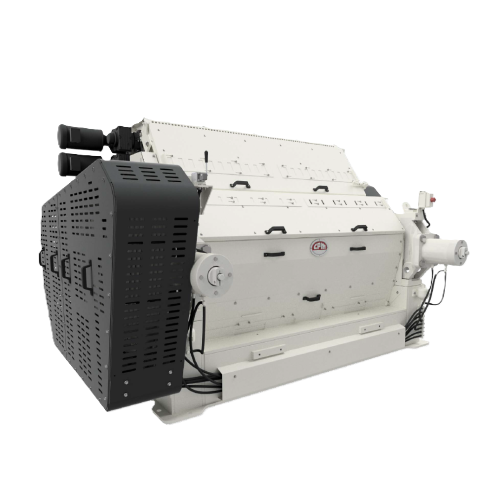

Oilseed flaking mill

Enhance flake consistency and output efficiency with advanced roll technology designed to optimize your flaking process.

Processes Oilseeds and Grains into Consistent Flakes

The SP 3200 Flaking Mill from CPM Roskamp is engineered to maximize efficiency in oilseed and animal feed processing. Utilizing centrifugally cast chilled iron rolls, the mill ensures consistent, high-quality flakes for products like soybean and corn flakes, with a significant impact on end-product quality across industries such as aquaculture and pet food. Operating continuously under high-speed, automated control, the SP 3200 handles substantial throughput capacities, adapting seamlessly into existing production lines with its industrial-duty, hydraulic-tensioned inter-roll drive system. Featuring a clean-in-place system and engineered spring stacks, it facilitates easy maintenance and protects against uncrushable materials, ensuring safety and reliability. CPM’s integration options include electro-hydraulic control consoles and energy-efficient HTD main drives, leading to reduced operational costs and enhanced environmental performance. The equipment is customizable with varying roll diameters and can be adapted for steam flaking applications, providing flexibility to meet specific operational needs.

Benefits

  • Enhances product quality with precise and consistent flake production.
  • Reduces operational costs through energy-efficient HTD main drive usage.
  • Minimizes maintenance downtime with hydraulic tensioning and clean-in-place systems.
  • Increases production flexibility with customizable configurations for various applications.
  • Ensures reliable operation with enhanced protection against uncrushable material.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Rendering,Biomass
End products
Rapeseed flakes,Canola meal,Pet food kibble,Biomass pellets,Fish feed flakes,Soybean flakes,Hemp flakes,Corn flakes,Aquaculture feed,Sunflower seed flakes
Steps before
Oilseed Preparation,Particle Size Reduction,Weighing,Steam Conditioning
Steps after
Cooling,Pelleting
Input ingredients
oilseeds,grains,unprocessed material
Output ingredients
flaked oilseeds,flaked grains,processed flakes
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Roll Diameter
28" or 32"
Roll Material
Centrifugally cast chilled iron
Base Type
High-density
Bearings
Double-row spherical roller
Bearing Blocks
Square
Drive Type
Hydraulic-tensioned inter-roll drive
Roll Feeder
With agitator and independent drive
Integrated Automation
Energy-efficient HTD main drive
Weight
34,000 - 44,000 lbs.
Max Drive HP
125 - 200 HP
Hydraulic Cylinders
Double-acting
Flow Configuration
"C" flow or "Z" flow

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP / Manual
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
CIP system
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Application Industry
Oilseed

Physical Characteristics


Machine footprint
Varies by model
Roll diameter
28" or 32" centrifugally cast chilled iron rolls
Rolls configuration
Double-row spherical roller bearings
High-density base
For vibration dampening
Cheek plates
Adjustable in three planes to seal roll ends
Motor base options
Left- or right-side drive,"C" flow or "Z" flow configuration
Weight
34,000 lbs. to 44,000 lbs. depending on model
Discharge method
Integrated shut-off gate
Roll surface grinder
In-place full-surface or roll-end grinding

Custom Options


Roll diameter
28" or 32"
Roll material
Centrifugally cast chilled iron
Base density
High-density
Roll drive type
Hydraulic-tensioned inter-roll drive
Hydraulic power unit capacity
40- or 80-gallon
Motor base
Adjustable,left- or right-side drive
Flow configuration
"C" flow or "Z" flow
Roll surface grinding
In-place full-surface or roll-end grinding
Optional features
Indefinite chill cast rolls,electro-hydraulic control console,stainless steel pin feeder
Discharge isolation
Integrated shut-off gate
