Oilseed cracking solution

Maximize throughput with precision cracking, ensuring optimal downstream processing for oilseed production and biomass applications.

Processes Oilseeds and Grains into Meal and Pellets

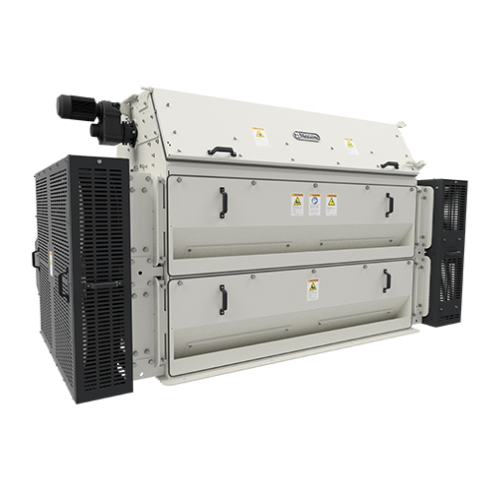

The 1200 Series Cracking Mill from CPM is engineered for oilseed processing and grain milling applications, providing a robust solution for transforming oilseeds into meal and pellets efficiently. Its unique design features load-centering bearing supports and replaceable bearing slides, ensuring consistent operation. The mill’s chilled iron rolls and adjustable roll corrugation accommodate diverse production needs, from animal feed to biofuels. With a soybean capacity of up to 1,000 metric tons per day and horsepower options ranging from 15 to 125 HP, this mill is tailor-made for continuous, high-volume operations. Integrated with industrial-duty adjustable motor platforms and optional feeders, the mill offers seamless automation and integration into existing systems. Enhanced operational efficiency is achieved through a separate inner-roll drive and V-belt drive systems. Maintenance is streamlined with self-aligning bearings and optional heavy-duty magnets for easy cleaning. The 1200 Series is customizable to match your unique production requirements, ensuring optimal performance in demanding industrial environments.

Benefits

  • Maximizes production efficiency with high-capacity throughput up to 1,000 MTD.
  • Enhances process stability and consistency with load-centering bearing supports.
  • Streamlines maintenance with accessible, replaceable bearing slides.
  • Supports versatile production needs with adjustable roll corrugations.
  • Reduces operational costs through energy-efficient separate inner-roll drive systems.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
End products
Canola meal,Animal protein meals,Biomass pellets,Nutritional supplements,Dog kibble,Hops pellets,Ethanol fuel,Fish feed,Hemp oil,Cat food,Soybean meal
Steps before
Oilseed Preparation,Grinding
Steps after
Pelleting,Cooling
Input ingredients
oilseeds,soybeans
Output ingredients
cracked oilseeds,cracked soybeans
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Roll surface area
904 to 2,714 square inches
Soybean capacity range
300 to 1,000 MTD
Horsepower range
15 to 125 HP
Roll diameter
12 inches
Roll adjustment
Straight-line throughout full range
Drive type
One motor V-belt drive
Roll bearings
Self-aligning,double-row spherical
Motor platform configuration
Left- or right-side drive,"C" or "Z" flow
Optional roll feeder
With independent drive
Optional pocket feeder
With independent drive
Model types
Single pair (SP) or double pair (DP)

Operating Characteristics


Roll adjustment method
Straight-line via machine screw jacks
Load-centering bearing supports
Yes
Automation level
Available with optional automation solutions
Drive type
One motor V-belt drive
Separate inner-roll drive
For each bank of rolls
Roll feeder option
Independent drive available
Pocket feeder option
Independent drive available
Permanent magnets
Heavy-duty,swing out for cleaning
Roll corrugation
Available for all applications
Fast roll feature
Equipped with axial fan
Airflow control
Axial fan for air circulation

Material Compatibility


Abrasion resistance
Designed for demanding applications
Corrosive resistance (e.g. acids)
Chilled cast iron rolls
Density/particle size
Suitable for soybean and oilseed
Cleanability
Easy maintenance design

Product type Characteristics


Oilseed Application Suitability
Yes

Physical Characteristics


Machine footprint
Varies by model
Roll diameter
12 inches
Roll surface area
904 to 2,714 square inches
Shaft material
Alloy steel
Weight
6,850 lbs to 17,000 lbs depending on the model
Roll adjustability
Straight-line roll adjusting via machine screw jacks
Drive configuration
Separate inner-roll drive for each bank of rolls
Motor drive type
One motor V-belt drive

Custom Options


Roll corrugation
Available for all applications
Roll adjustment
Straight-line adjusting to maintain tram
Motor platform side
Left- or right-side drive
Flow configuration
"C" flow or "Z" flow configuration
Feeder type
Roll feeder/Pocket feeder with independent drive
Model type
Single pair (SP) or double pair (DP) models available
