Non-destructive headspace analyzer for pharmaceutical packages

Ensure non-destructive and accurate headspace analysis for pharmaceutical packaging to optimize quality control and meet stringent regulatory standards.

Analyzes Headspace and Inspects Pharmaceutical Vials

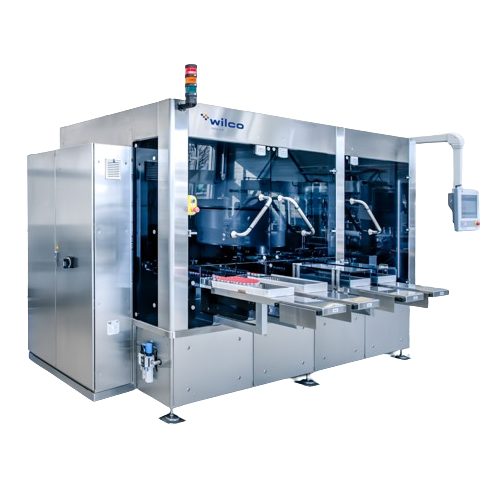

WILCO’s SPECTRA series, including the HSX 100, HSX 300, HSX 500, and NIV 300, offers comprehensive non-destructive inspection solutions for the pharmaceutical, biotech, and chemical industries. These systems are designed for meticulous headspace analysis and NIR spectroscopy, ensuring thorough quality control in parenterals and lyophilized products. The SPECTRA HSX models utilize advanced laser systems for headspace gas detection, nitrogen purging efficiency, and container closure integrity testing, configurable with up to ten test heads for enhanced sensitivity and throughput of up to 500 vials per minute. The NIV 300 model employs near-infrared spectroscopy to analyze moisture content and detect lyophilization defects at speeds up to 600 samples per minute, fully automated for minimal human intervention. All systems are GMP-compliant, integrate seamlessly into production lines, and offer optional modules for additional inspection such as visual systems and 2D DataMatrix code readers. Designed with an easy format changeover and user-friendly interface, these analyzers ensure reliable, continuous operation and support dynamic production requirements.

Benefits

  • Enhances production efficiency with high-speed, continuous inspection.
  • Ensures product safety and compliance through non-destructive testing.
  • Minimizes labor requirements with fully automated, user-friendly systems.
  • Adapts to various container sizes and types without additional tools.
  • Maintains data integrity with 21 CFR Part 11 compliance for secure data handling.

General


Applications
Bfs bottles,Syringes,Iv bags,Lyophilized products,Vials,Liquid products,Parenterals,Ampoules,Solid products,Lvp bottles,Pharmaceuticals
End products
Pre-filled syringes with biologic drugs,Sterile saline ampoules,Large volume parenteral bottles for intravenous fluids,Lyophilized antibiotics,Bfs bottle packaging for eye drops,Vaccine vials,Infusion bags with nutrient solutions
Steps before
Lyophilization,Filling of parenterals,Packaging of vials and ampoules
Steps after
Visual Inspection,Packing,Labeling
Input ingredients
pharmaceutical packages,vials,syringes,ampoules,plastic containers,glass containers,lyophilized products,liquid products,solid products,2ml to 100ml containers,partial pressure of oxygen,carbon dioxide,modified headspace conditions
Output ingredients
tested pharmaceutical packages,non-destructive headspace analysis results,moisture concentration data,lyo defects analysis,container closure integrity testing results,nitrogen purging efficiency results,vacuum verification results,data in compliance with 21 CFR part 11,reliable product handling,headspace conditions verification
Market info

Technical Specifications


Inspection speed
Up to 600 vials per minute
Container size
2 ml up to 100 ml
Non-destructive analysis
Headspace Analysis
Sensitivity enhancements
Integration of up to 10 test heads
Laser technology
Latest generation for maximum sensitivity
Throughput
Up to 500 samples per minute
Automation
Fully automated with online calibration
NIR Spectroscopy
For moisture detection and lyo defects
Inspection methods
Integration with other technologies
Compliance
21 CFR part 11
Calibration system
Integrated online calibration tool

Operating Characteristics


Automation level
Fully automated / PLC
Batch vs. continuous operation
Inline Continuous
Inspection speed
Up to 600 vials per minute
Detection method
Non-destructive Headspace Analysis
Integration capability
Optional integration with other inspection technologies
Calibration system
Integrated online calibration system
Test head integration
Up to ten test heads
Product handling
Reliable product handling
Changeover time
Toolless format changeover
Cleaning method
Designed according to GMP guidelines

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product state
Liquid / Lyophilized / Solid
Nitrogen purging efficiency
Available
Vacuum verification
Available


ISO Standards
ISO 9001

Physical Characteristics


Footprint
Compact
Test Head Integration
Up to 10 test heads
Container Size Compatibility
2 ml to 100 ml
Container Type Compatibility
Glass / Plastic Vials and Ampoules
Non-Destructive Testing Method
Headspace Analysis
Platform Type
SPECTRA HSX

Custom Options


Control panel type
Fully integrated in PLC and HMI system
Integration possibilities
Optional integration of visual inspection systems and 2D DataMatrix Code reader
Customization of laser system
New milestones in terms of sensitivity and inspection speed
Test heads customization
Up to 10 test heads can be integrated
Inspection module integration
Integration of NIR spectroscopy modules or barcode readers
