Next generation tablet compression unit

Meet the demands of modern tablet production with advanced modular design, ensuring fast changeovers, enhanced containment, and streamlined maintenance for efficient, high-speed output.

Compresses and Contains Pharmaceutical Tablets Efficiently

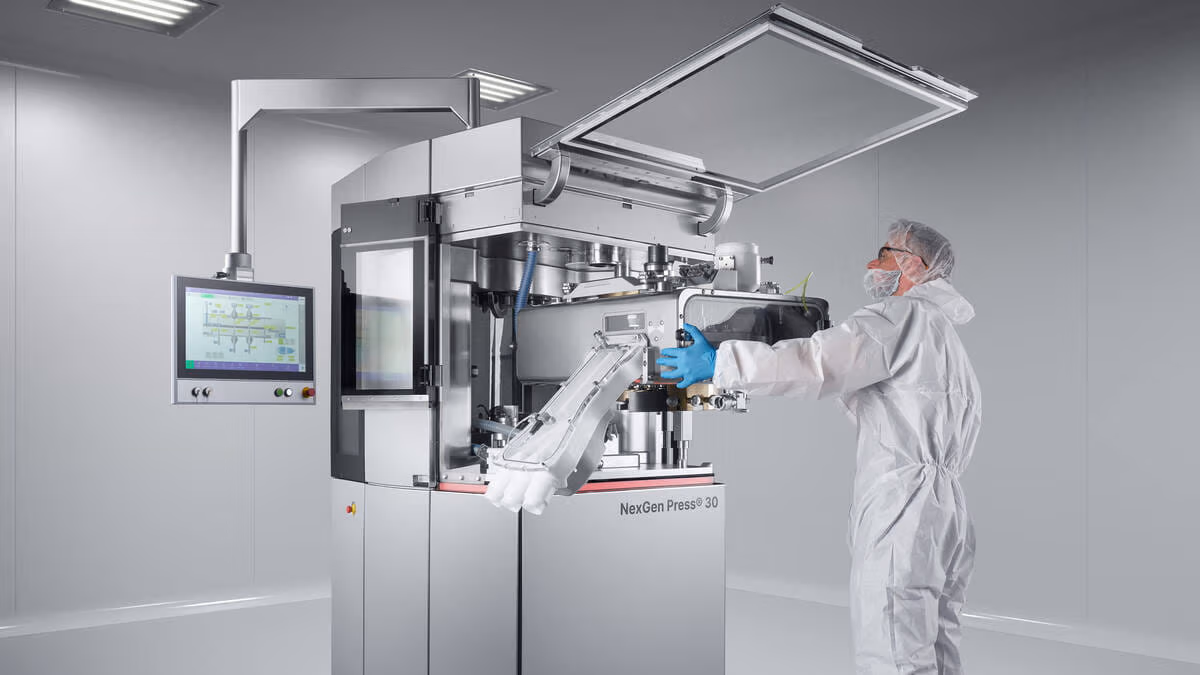

The NexGen Press from GEA represents a cutting-edge solution in modular rotary tablet presses, specifically designed for the pharmaceutical industry. This high-containment equipment stands out for its ability to compress a variety of complex tablets, from orodispersible and MUPS to bilayer and extended-release formulations.

The NexGen Press utilizes a modular design that allows customization for specific applications, supporting continuous and high-speed operations. Its advanced containment capabilities, featuring “double barrier” technology, ensure operator safety and product integrity, complying with OEB 4 and 5 standards. Integrated with the innovative BUCK® Digital Canary system, it offers real-time monitoring and leak detection to maintain a safe production environment.

The machine is equipped with an Exchangeable Compression Module (ECM) that facilitates fast changeovers and minimizes contamination risk, making it ideal for processing up to 331,200 tablets per hour, depending on the configuration. It supports a variety of tooling options, including A2D and features an intuitive HMI with multitouch functionality for seamless operation.

Ensuring both operational excellence and adherence to ISO 14021 standards, the NexGen Press boasts an impressive 21% reduction in energy consumption compared to previous models, thanks to its efficient motor control and power consumption monitoring. Additionally, it offers ease of maintenance with a WIP/WOL-compatible design, built-in preventive maintenance, and VR-based training and support, aligning with Industry 4.0 practices for a future-proof pharmaceutical manufacturing environment.

Benefits

  • Ensures high-speed production with rapid changeovers, minimizing downtime.
  • Enhances operator safety and product integrity with robust containment measures.
  • Reduces energy use by 21%, lowering operational costs.
  • Provides flexibility with modular design customizable for diverse tablet formulations.
  • Maintains compliance with strict industry standards, including OEB 4 and 5.

General


Applications
Supplements,Pharmaceutical tablets,Mups tablets,Bilayer tablets,Orodispersible tablets
End products
Ibuprofen tablets,Calcium supplements,Multivitamin tablets,Extended-release pain relief bilayer tablets,Probiotic mups tablets,Paracetamol tablets,Antacid orodispersible tablets
Steps before
Grinding,Blending,Granulation
Steps after
Coating,Packing,Quality Control
Input ingredients
active ingredients,powders,MUPS materials
Output ingredients
tablets,orodispersible tablets,bilayer tablets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Max. tablet diameter
25.4 mm
Punch body diameter
25.4 mm
Outside die diameter
38.1 mm
Die height
23.8 mm
Number of stations
23 - 46
Max. fill depth
19 mm
Top punch penetration
1 to 4 mm
Max. pre-compression force
10 kN
Max. main compression force
100 kN
Max. output capacity
124,200 - 331,200 tablets/hour
Electrical requirements
3phase+PE – 380V - 480 V – 50Hz / 60Hz
Compressed air requirements
clean,dry / 7-8 bar / 500l/m peak
Dust extraction requirements
150 m³/h at 15 mbar
Machine dimensions
W = 1167 mm x D = 1364 mm x H = 2351 m
Machine weight
2800 kg

Operating Characteristics


Working mechanism
Modular,digitalized
Changeover time
Less than 1 hour
Batch vs. continuous operation
Batch
Automation level
PLC / Industry 4.0
CIP/SIP
CIP Compatible
Cleaning method
Easy and fast cleaning
Energy efficiency
21% reduction compared to predecessors
Containment levels
OEB 3,OEB 4,OEB 5 available
Real-time monitoring
BUCK® Digital Canary
Interoperability
Industry 4.0 compatible

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Tablet Type
Bilayer,MUPS,Orodispersible

Physical Characteristics


Machine dimensions
W = 1167 mm x D = 1364 mm x H = 2351 mm
Machine weight
2800 kg
Compact footprint
Modular design
Turret replacement time
Less than 1 hour
Product contact area
Reduced-volume and isolated
Enclosure type
Dust-tight
Control panel
User-friendly HMI with multitouch functionality

Custom Options


Control Panel Type
User-friendly HMI with multitouch functionality
Integration Possibilities
Industry 4.0-compatible,Digital Canary monitoring system
Modular Design
Customizable for specific applications with option packs
Containment Options
Upgrade to OEB 3,4,5 containment applications
Compression Modes
Five additional compression modes
Cleaning Options
WIP/WOL-compatible
