Narrow belt spiral conveyor for small packages

Optimize your production flow with this compact spiral conveyor system, designed to handle small packs and liquid containers with high speed and precision.

Elevates, Accumulates, and Conveys Diverse Products

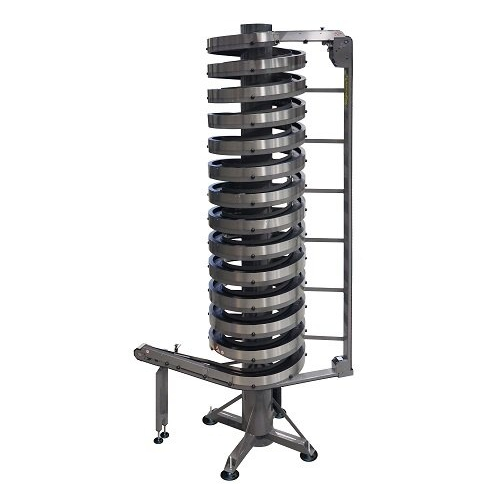

The SpiralVeyor SVs-Series from AmbaFlex is a state-of-the-art solution for industries requiring efficient product handling. This spiral conveyor system utilizes low friction, high-performance Triple-E technology, making it both compact and high in load capacity. Designed for logistics, packaging, bottling, and pharmaceutical sectors, it excels in elevating, accumulating, and conveying a wide array of products, including liquid containers, pill bottles, and flow-wrapped snacks. With the capability to handle up to 50 kg/m and speeds of 60 m/min, the system integrates seamlessly into high-speed production lines. Available in multiple configurations, the SVs-Series supports single and multi-belt setups with up to 6 parallel tracks, enhancing operational flexibility. Its modular design ensures easy maintenance and adaptation to specific production requirements, while the option for dry, wipe down, or wash down materials provides versatility in various environmental conditions. Ideal for businesses seeking to streamline processes, improve throughput, and maintain high product integrity.

Benefits

  • Increases production line efficiency by elevating and accumulating diverse products without bottlenecks.
  • Supports high-speed operations, ensuring continuous flow and reduced cycle times.
  • Offers customizable configurations with up to 6 parallel belts, providing flexibility for various product types.
  • Minimizes maintenance requirements due to robust, low-friction components.
  • Adaptable to hygiene-sensitive environments with available wash down materials.

General


Applications
Personal care,Flow packs,Cartons,Liquid containers,Packaging,Bottling,Logistics,Pharmaceuticals
End products
Liquid soap dispensers,Pill bottles,Flow-wrapped snack bars,Ointment tubes,Face cream jars,Luxury product cartons,Soda cans,Bottled water,Plastic cartons,Small appliance packaging,Body lotion tubes,Medicine blister packs,Flow-wrapped cookies,Juice bottles,Shampoo bottles,Small electronics packaging
Steps before
Primary packaging,Product sorting,Assembly line integration
Steps after
Secondary packaging,Palletizing,Shipping and distribution
Input ingredients
small primary packs,liquid containers,flow packs,cartons,personal care products,pharmaceuticals,bottles,cans,doypacks
Output ingredients
small primary packs,liquid containers,flow packs,cartons,personal care products,pharmaceuticals,bottles,cans,doypacks
Market info
AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.

Technical Specifications


Belt width range
100,140 or 200 mm | 4,5.5,8"
Multi Track
1-6 parallel belts
Load range
up to 50 kg/m | 34 lb/ft
Speed range
up to 60 m/min | 200 fpm
Elevation
virtually unlimited,commonly per drive 15 m | 50 ft
Belt length
up to per drive system 60 m | 200 ft

Operating Characteristics


Working Mechanism
Spiral conveyor
Automation Level
PLC
Batch vs. Continuous Operation
Inline Continuous
Elevation
Virtually unlimited
Cleaning Method
Wipe down
Speed Range
Up to 60 m/min
Multi Belt
1-6 parallel belts
Load Capacity
Up to 50 kg/m

Product type Characteristics


Container type
Bottles / Cans / Doypacks
Product size
Flow packs / Cartons
Handling capability
Single file liquid handling
Good types suitable for handling
Secondary packages,single file liquid containers

Physical Characteristics


Belt width range
100,140 or 200 mm | 4,5.5,8"
Load range
up to 50 kg/m | 34 lb/ft
Speed range
up to 60 m/min | 200 fpm
Elevation per drive
virtually unlimited,commonly 15 m | 50 ft
Belt length per drive system
up to 60 m | 200 ft
Material use
Dry use,Wipe down,Wash down economic,Wash down total

Custom Options


Multi-belt version
1-6 parallel belts
Belt width options
100,140,200 mm
Material handling capability
Single file liquid handling
Belt design
Several belts and friction pad designs
Footprint configurations
Compact and extended diameter
Elevation capability
Virtually unlimited,per drive 15 m
Load capacity
Up to 50 kg/m
Speed capacity
Up to 60 m/min
