Multi-lane ice cream wrapper

Achieve seamless wrapping of diverse ice cream products with high-speed precision and reduced material waste, ensuring consistent quality and efficient production line integration.

Wraps and Seals Ice Cream Products Efficiently

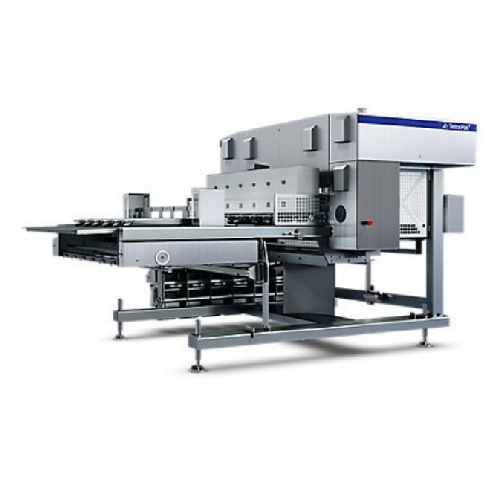

The Tetra Pak Multilane Wrapper 1700 A2 is an advanced solution designed for efficient ice cream packaging. Capable of wrapping multiple lanes of ice cream sticks, bars, sandwiches, cones, and wafer cups, it operates with remarkable speed and precision. Utilizing an individual fin seal drive and sealing module, it ensures secure packaging while minimizing material waste. This machine features a compact integrated paper rack, facilitating easy access and reducing space requirements. With a processing capacity of up to 70 products per minute per lane, its automation capabilities include fast photo registration and customizable date coding options. Engineered for continuous operation, the wrapper enhances production efficiency, reduces downtime with quick module replacements, and supports diverse material handling, making it ideal for ice cream manufacturers aiming for reliable, high-speed packaging.

Benefits

  • Enhances production speed with high-capacity throughput of up to 70 ice cream products per minute per lane.
  • Minimizes material waste and cost through precise sealing and wrapping technology.
  • Increases product quality consistency with features like fast photo registration and individual lane control.
  • Reduces space and maintenance complexity with an integrated compact design.
  • Offers flexible customization with changeable modules and adaptable date coding options.

General


Applications
Ice cream sticks,Ice cream cones,Ice cream bars,Ice cream sandwiches,Ice cream wafer cups
End products
Vanilla ice cream sticks,Strawberry ice cream wafer cups,Caramel swirl ice cream cones,Mint chocolate chip ice cream sandwiches,Chocolate-covered ice cream bars
Steps before
Mixing,Freezing,Moulding
Steps after
Cartoning,Cooling,Storage
Input ingredients
ice cream sticks,ice cream sandwiches,ice cream bars,ice cream cones,wafer cups,hot sealable wrapping materials,cold sealable wrapping materials
Output ingredients
wrapped ice cream sticks,wrapped ice cream sandwiches,wrapped ice cream bars,wrapped ice cream cones,wrapped wafer cups
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Up to 70 products/min per lane
Applications
Ice cream sticks,sandwiches,bars,cones,wafer cups
Automation
Smart features for deviation detection
Product Quality
Exceptional and consistent
Wrapping Materials
Hot or cold sealable
Modules
Several exchangeable modules
Sealing and Cutting
Box motion pattern for reliable sealing
Material Savings
Low production costs
Recipe Handling
Highly flexible production
Paper Rack
Integrated,compact layout
Changeover
Quick release handle for paper formers
Sealing Module
Individual fin seal drive,sealing module
Quick Product Changes
Quick,safe product changes with minimum waste
Waste Reduction Features
No-product-no-wrapping
Photo Registration
Fast photo registration
Cross Sealing,Cutting
Reliable sealing with fast moving cutting device
Module Replacement
Fast replaceable modules for high equipment availability
Paper Break Detection
Automatic stop and alert system
Date Coding Options
Compatible with various systems like inkjet,laser
Product Alignment
Photo mark registration for design alignment
Individual Lane Exit
Ensures quality by removing non-conforming products

Operating Characteristics


Working Mechanism
Multilane continuous wrapping
Integrated Steps
Wrapping,sealing,and cutting
Changeover Time
Quick release handle for fast product change
Batch vs. Continuous Operation
Inline Continuous
Automation Level
PLC controlled with smart features
Cleaning Method
Manual
Energy Efficiency
High efficiency with low production costs
Capacity
Up to 70 products/min per lane
Flexibility
Recipe handling and exchangeable modules

Material Compatibility


Heat sealable wrapping materials
Yes
Cold sealable wrapping materials
Yes

Physical Characteristics


Machine footprint
Compact layout due to integrated paper rack
Discharge method
Individual lane exit for product quality assurance
Control panel type
Integrated with quick release handles
Replaceable modules
Fast exchangeable fin and cross seal modules
Product handling design
Individual fin seal drive and sealing module
Wrapping material compatibility
Hot or cold sealable materials
Paper rack design
Mounted onto machine

Custom Options


Integration possibilities
Connected packaging,Smart operations
Individual lane exit
Ensures final product quality
Individual fin seal drive,sealing module
Quick,safe product changes
Choice of date coding options
Drop on demand,continuous inkjet,thermal inkjet,laser
Photo mark registration
Positions product correctly in the wrapper
Replaceable modules
High equipment availability
Paper break detection
High equipment availability
Integrated paper rack
Compact layout
Quick release handle
Wrappings of different product types and sizes
