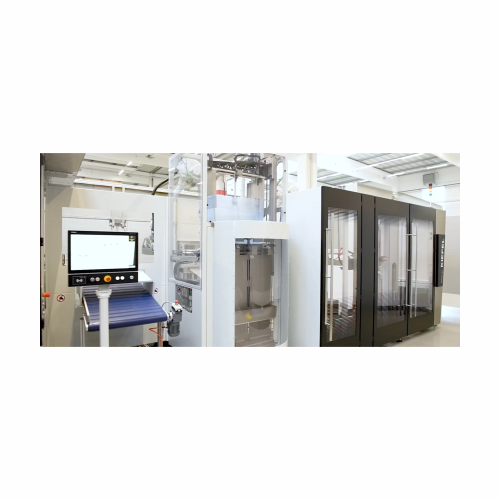

Modular stacking and automation for polymer packaging

Addressing the needs of flexible food packaging, this solution offers high-speed stacking and automation to optimize production workflows, reduce labor costs, and ensure ergonomic efficiency for handling various thermoformed products.

Automates Thermoforming, Stacking, and Packaging Processes

The SPEEDFORMER KMD 78.2 Speed from Kiefel stands out as a modular thermoforming and automation system tailored for the demanding needs of the food and packaging industries. This machine excels in its ability to seamlessly integrate thermoforming with automated stacking and packaging processes, supported by the versatile SPEEDPACKER KSP and SPEEDPADDER KSD modules.

It efficiently handles applications like frozen food trays, deli meat trays, and moisture-absorbing trays, catering to packaging manufacturers and food processing companies requiring precision and speed. The system features a high-speed operation capable of reaching up to 50 cycles per minute, facilitated by a modular design that allows for easy customization and expansion.

Automation is at the forefront with options for continuous pick and place, A/B stacking, and labeling, all controlled via a user-friendly PLC interface. The system’s design leverages flexible integration with existing production lines, making it viable for both new installations and retrofits. Additionally, its energy-efficient shuttle transfer system optimizes labor costs and operational efficiency.

Constructed with robust materials, the SPEEDFORMER KMD 78.2 Speed ensures durability and compliance with industry standards, making it a reliable choice for modern packaging lines. The system also enables easy maintenance with features designed for quick on-site serviceability. With the assurance of Kiefel’s engineering support, this equipment is customizable to meet specific production needs, ensuring a streamlined packaging process that is both effective and sustainable.

Benefits

  • Enhances production efficiency with high-speed thermoforming and stacking capabilities.
  • Minimizes labor expenses through automated stacking and packaging processes.
  • Adaptable to existing production lines, allowing seamless integration and scalability.
  • Improves ergonomic workplace conditions with optimal tray removal height and noise reduction options.
  • Offers flexible automation solutions, accommodating various packaging needs and product types.

General


Applications
Vegetable packaging,Moist food packaging,Food packaging,Thermoformed packaging,Fruit packaging,Hygienic packaging,Meat trays
End products
Deli meat trays,Food storage trays,Hygiene product packaging,Takeaway meal containers,Pre-packaged vegetable containers,Biodegradable food containers,Moisture-absorbing trays,Wet wipes packaging,Frozen food trays,Fruit clamshells
Steps before
Material Preparation,Film Processing
Steps after
Packaging,Carton Erecting,Labeling,Palletizing,Shrink Wrapping
Input ingredients
thin films,trays,partial stacks,cartons,protective bag
Output ingredients
finished formed trays,food trays,stacked packaging,palletized products,labeled units
Market info
KIEFEL GmbH is renowned for engineering and manufacturing high-performance thermoforming and joining systems, specializing in solutions for the packaging, medical technology, and automotive industries, ensuring innovative and precise equipment to meet specific industrial demands.

Technical Specifications


Production speed max.
50 cycles/min
Removal height product stack
700 - 1,000 mm
Removal conveyor dimensions
approx. 1,900 x 780 mm
Conveyor belt speed
adjustable
Installation surface
appx. 3.5 x 1.9 x 3 m

Operating Characteristics


Automation level
Modular/Standardized
Ergonomic operation
Convenient removal position
Flexible solution
Customer-specific
Integrated automation steps
Stacking,labeling,sleeving
Combination options
With existing systems
Modular system
Modular KSA system
Production speed
50 cycles/min
Stacking methods
Pick,Place,A/B,tip,up/down
Safety features
Ergonomic,safe height
Simulation capability
Thermoforming 2.0 Interface
System adaptability
Can be integrated with various machines

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Film thickness suitability
Thin films
Tray stacking capability
Food trays
Noise reduction option
Optional gate
Shrink-wrap capability
Available

Physical Characteristics


Machine footprint
Approx. 3.5 x 1.9 x 3 m
Removal height product stack
700 - 1,000 mm
Removal conveyor dimensions
Approx. 1,900 x 780 mm

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
Compatible with existing systems and new machines
Modular system
Yes,flexible standard automation
Stacking options
Pick,Place,A/B stacking,stacking up/down
