Mixer for carbonated and non-alcoholic drink production

Efficiently mix and carbonate a variety of beverages while optimizing syrup and CO2 usage, ensuring consistent quality and taste across your production line.

Mixes, Carbonates, and Homogenizes Beverages Efficiently

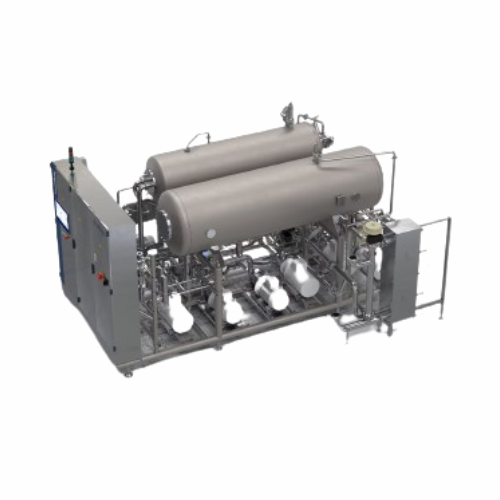

The Krones Contiflow Mixer is an essential asset for beverage manufacturers seeking superior precision in mixing, carbonation, and homogenization. Designed to cater to the evolving needs of non-alcoholic refreshments, plant-based milk, and spirits industries, this mixer delivers exceptional performance with its integration of advanced processing steps such as deaeration and dosing.

Utilizing a modular design, the Contiflow consists of three key modules—deaeration, dosing, and carbonation—that function seamlessly to process various liquid and gaseous ingredients. Offering production outputs ranging from 15 to 90 m³/h across six adjustable sizes, it provides flexibility to fit your production requirements.

High precision in syrup and CO2 dosing leads to a lowered syrup consumption by up to 0.2 percent, ensuring cost-effective operations. The equipment’s capability to handle up to eight liquid ingredients and two gaseous ingredients underlines its versatility.

Engineered for continuous, automated, and high-speed operations, the Contiflow integrates effortlessly into your existing line. Its design facilitates easy maintenance, featuring a stainless steel frame and moveable pump slides for quick mechanical seal replacement. Energy efficiency is a priority, with optimized motors and reduced CO2 consumption through minimized head space and short mixing phases.

Whether producing cola, almond milk, or whiskey soda, the Krones Contiflow Mixer ensures your product quality remains consistently high, supported by sophisticated process monitoring and precise control systems.

Benefits

  • Enhances product consistency through precise syrup and CO2 dosing, resulting in significant cost savings.
  • Increases operational flexibility with customizable output from 33% to 100% of rated capacity.
  • Reduces energy consumption with optimized motor and gravity-assisted design.
  • Minimizes product loss during change-overs and emptying, improving efficiency.
  • Simplifies maintenance with easy-access components and compact design.

General


Applications
Water,Milk and milk-based drinks,Non-alcoholic refreshment drinks,Spirits,Plant-based milk alternatives,Juice,Soft drinks
End products
Lemonade,Tonic water,Flavored mineral water,Gin,Apple juice,Oat milk,Almond milk,Iced tea,Soy milk,Skim milk,Orange juice,Sparkling water,Energy drinks,Whiskey soda,Cola,Tonic,Chocolate milk,Mixed fruit cocktails
Steps before
Water purification,Ingredient preparation,Syrup mixing
Steps after
Filling,Packaging,Quality inspection
Input ingredients
water,syrup,CO2,liquid ingredients,stripping gas
Output ingredients
carbonated beverages,mixed drinks,non-alcoholic refreshment drinks
Market info
Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.

Technical Specifications


Mixing output capacity
15,30,45,60,75,90 m³/h
Syrup dosing accuracy
±0.03°Bx to ±0.01°Bx
Deaeration residual oxygen content
≦0.5 ppm
Carbonation CO2 dosing accuracy
≦0.08 g/l to ≦0.04 g/l
High-pressure carbonation
> 8 bar
Production flexibility
33% to 100% of nominal output
Power consumption
1.1 kW (recirculation pump)
CO2 consumption
Reduced due to small head space
Change-over time
< 10 minutes
Automated processes
Water or syrup supply rinsing function starts automatically
Brix value control
Brix-controlled syrup feeding
Temperature for stripping gas
15 °C (for 10 ppm initial oxygen)

Operating Characteristics


Mixing mechanism
Deaeration,Dosing,Carbonation
Output variability
33 to 100 percent
Product flow type
Continuous inline
Automation level
PLC controlled
Changeover time
Less than 10 minutes
Energy efficiency
Use of gravity and optimized pumps
High-pressure carbonation
> 8 bar
Automated rinsing function
Water or syrup supply

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Carbonation Level
Variable CO2 dosing

Physical Characteristics


Compact footprint
Easily accessible mixing station design with a stainless steel circular tube frame
Tank shape and size
Integrated product tank,horizontal deaeration tank
Control panel type
Central HMI
Footprint
Reduced construction height,integrated mixer with Modulfill VFS-M reduces space requirements
Control panel location
Shared central HMI with the filler
Discharge method
Direct connection to Modulfill VFS-M,gravity-assisted discharge
Modular design
Comprising three modules

Custom Options


Control panel type
Central HMI
Integration possibilities
Direct connection with Modulfill VFS-M
Compact footprint
Optimised design with reduced space requirements
