Milk skimming separator

Achieve superior separation efficiency and reduced energy consumption in dairy processing with seamless integration into existing production lines, ensuring optimal quality and flexibility for a variety of milk-based and plant-based products.

Separates Milk and Cream Efficiently

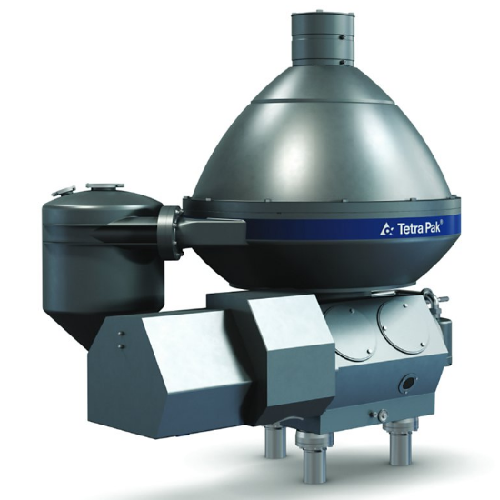

The Tetra Pak® Separator offers an exceptional solution for dairy, cheese, and plant-based product industries. Known for its AirTight design, this equipment ensures high separation efficiency by preventing air entry which could disrupt the milk skimming process. It utilizes hermetic inlet and outlet seals combined with a gentle hollow spindle that maintains the integrity of fat globules, optimizing separation without excessive energy consumption. Capable of processing between 7,000 to 75,000 liters of hot milk per hour, it adapts to both hot and cold separation needs seamlessly, offering production flexibility. Materials like Duplex and Super Duplex steel enhance corrosion resistance, guaranteeing durability with a 10-year bowl guarantee. Integrating easily into automated production lines, it features an Encapt™ technology option that reduces energy use by up to 40%. Customizable with options such as the Polynode Disc and INSTAL module, Tetra Pak extends the equipment’s capability and ease of installation, providing comprehensive engineering support for tailored configurations.

Benefits

  • Enhances production efficiency by reducing energy consumption up to 40% with Encapt™ technology.
  • Ensures high product quality by maintaining fat globule integrity with gentle separation processes.
  • Adapts to varying production requirements with flexible capacity and recipe handling.
  • Lowers operational costs through robust, corrosion-resistant design with a 10-year material guarantee.
  • Minimizes installation time and complexity with the pre-assembled INSTAL module for quick integration.

General


Applications
Cream,Skimmed milk,Cheese,Fermented dairy,Milk powder,Whey,Plant-based milk,Flavored milk,Dairy
End products
Oat milk,Almond milk,Skim milk,Soy milk,Yogurt,Heavy cream,Ricotta cheese,Lactose-free milk,Goat cheese,Milk protein concentrate,Flavored milk beverages,Milk fat concentrate
Steps before
Milk Collection,Milk Storage,Milk Homogenization,Milk Pre-treatment
Steps after
Cream Separation,Cream and Skim Milk Storage,Further Milk Processing,Dairy Product Production
Input ingredients
hot milk,cold milk
Output ingredients
cream,skimmed milk
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Automation
PLC-controlled
Capacity
Hot milk
Cold milk
10,000-50,000 l/h
Energy Consumption Reduction
Up to 40% with Encapt™ technology
Material
Duplex and Super Duplex steel
Design
AirTight
Seals Type
Hermetic inlet and outlet seals
Product Discharge
Two rotating pumps
Disc Type
Polynode Disc
Installation Module
INSTAL module

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Air incorporation control
AirTight Technology
Energy efficiency
Low energy consumption
Cleaning method
CIP / Manual
CIP/SIP
CIP 121°C / SIP 135°C

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Separator bowl material
Duplex and Super Duplex steel
Hermetic seals
Inlet and outlet
Feed/discharge method
Rotating pumps for skimmed milk and cream

Custom Options


Control panel type
Touch screen / HMI
Integration possibilities
Factory automation systems
Encapt (TM) technology
Energy-saving customization
INSTAL module
Pre-assembled and pre-tested
Product discharge pumps
Options for skimmed milk and cream
Hermetic seals
Customizable for specific applications
