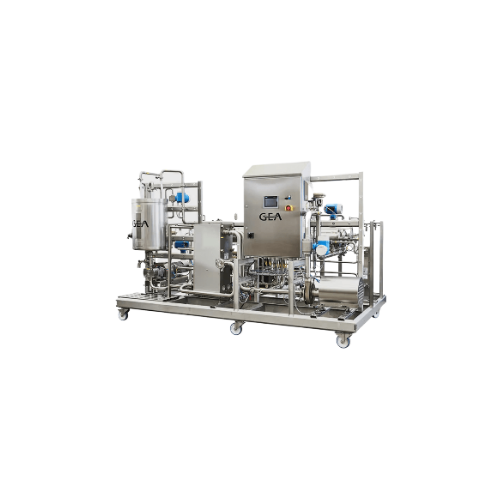

Membrane filtration pilot units for process optimization

Optimize your process parameters and achieve precise product specifications with versatile membrane filtration pilot units, ideal for testing and scaling innovative formulations while ensuring high-quality results.

Facilitates Filtration, Separation, and Concentration Testing

GEA’s membrane filtration pilot units offer a versatile solution for industries ranging from food and beverage to biotechnology and fermentation. Designed for precise membrane filtration and concentration processes, these units employ cross-flow technology, allowing for accurate emulation of full-scale production environments. They are ideal for developing products such as milk protein concentrates and bioethanol. Our units accommodate both small and medium-scale operations with a variety of configurations including reverse osmosis, nanofiltration, ultrafiltration, and microfiltration, ensuring compatibility with a wide range of liquid formulations. Offering the flexibility of in-house testing at GEA centers or rental options for on-site trials, these units streamline the process development and optimization lifecycle. Engineered with CIP capabilities, they ensure efficient, contamination-free cleaning and adhere to industry compliance standards for safe and reliable operations.

Benefits

  • Enhances product quality and consistency by providing precise filtration and concentration capabilities.
  • Reduces development time with reliable data transfer from pilot to full-scale production.
  • Minimizes operational risks by testing with actual raw materials in real-world conditions.
  • Increases flexibility with modular setups and customizable configurations for various applications.
  • Ensures compliance and safety through robust design and industry-standard certifications.

General


Applications
Biotechnology,Liquid formulations,Fermentation,Microparticulated whey protein concentrates,Chemical,Food and beverage,Dairy
End products
Pharmaceutical-grade water,Plant-based protein isolates,Bioethanol,Fat-reduced dairy products,Enzyme solutions,Milk protein concentrates,High-fructose corn syrup,Fermented beverages,Clarified fruit juices,Whey protein isolates
Steps before
Initial testing,Process parameter optimization,Membrane selection,Feasibility testing
Steps after
Product development,Industrial scale production,Data analysis,Process scaling,Packing,Product sample creation
Input ingredients
raw materials,food ingredients,beverage inputs,dairy products,chemical substances,biotechnology samples,fermentation broth
Output ingredients
clarified products,bacteria removal,spore removal,fractionated products,concentrated solutions,separated components,diafiltered products
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Membrane Type
Microfiltration,Ultrafiltration,Nanofiltration,Reverse Osmosis
Membrane Configuration
Spiral wound,Plate-and-frame,Ceramic,Sintered stainless steel
Capacity
Small to Medium-scale
Automation
Adaptable to specifications,PLC-controlled
Cooling Temperature
Not specified
Process Type
Cross-flow Membrane Filtration
Feed Type
Liquid,Concentration Levels Vary
Application Range
Clarification,Bacteria and Spore Removal,Fractionation,Concentration,Diafiltration

Operating Characteristics


Working mechanism
Cross-flow membrane filtration
Testing options
Benchtop,pilot,full-scale
Process adaptability
Customized specifications
Operation mode
Manual / Automated
Cross-flow application
Clarification,concentration,separation
Cleaning method
CIP/Manual
Automation level
Manual / PLC / SCADA
Pilot unit scalability
Scalable to industrial production

Material Compatibility


Density/particle size suitability
0.5–2.5 g/cm³ / 50–1000 µm
Cleanability with CIP/SIP
CIP 121°C / SIP 135°C
High temperature exposure
121–135°C

Product type Characteristics


Concentration level
Customizable
Filtration purpose
Clarification / Bacteria removal

Physical Characteristics


Machine footprint
Small to medium-scale
Compact footprint
Adaptable to space requirements
Shape and size
Varies with module configurations
Membrane configurations
Spiral wound,plate-and-frame,ceramic
Discharge method
Customizable for full-scale simulation

Custom Options


Control panel type
PLC / HMI
Module configuration
Spiral wound / Plate-and-frame / Ceramic
Membrane configuration
Forward osmosis / Reverse osmosis / Nanofiltration / Ultrafiltration / Microfiltration
Membrane type
Polymeric / Tubular / Hollow fiber
Adaptability
Customizable to process requirements
Testing options
In-house / Rental unit at customer site
