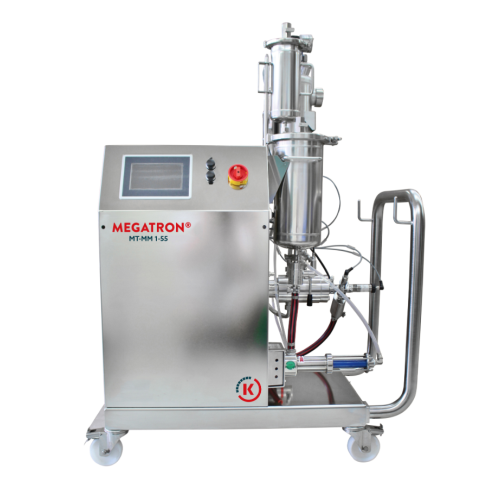

Membrane emulsifying system for double emulsions

Achieve precise control over emulsion droplet sizes and distributions, ensuring optimal product stability and performance in your formulations with this advanced inline membrane emulsification technology.

Produces High-Concentration Emulsions from Liquid Phases

The MEGATRON® MT-MM from Kinematica AG offers a sophisticated emulsification solution for industries such as pharmaceuticals, cosmetics, and food. This inline process machine employs a membrane emulsification technique, reducing mechanical and thermal stress during production. It’s adept at creating high-concentration and monodisperse emulsions, ideal for applications from liposomal drug delivery systems to vitamin-enriched beverage emulsions.

Operating with a maximum throughput of 5 to 40 liters per hour, the system uses minimal energy and is equipped with a high-frequency motor that supports precise speed control through a frequency inverter. The working chamber, made of electro-polished SS 316L with a heating/cooling jacket, features a unique double mechanical seal design that ensures robust performance.

For seamless integration, the machine operates continuously and supports inline processing, ideal for high-speed operations. With its membrane module designed for narrow droplet size distribution, it offers controllability over droplet size and distribution—a key for achieving desired product specifications in the production line.

The MEGATRON® MT-MM’s materials and design cater to rigorous industrial standards, featuring compatibility with various product types, including liquid and gas phases. Maintenance and operation are streamlined through an integrated touch screen panel for plant control, ensuring ease of use and adaptability to specific production needs. Overall, this emulsifier stands as a versatile, efficient choice for producing intricate emulsion formulations.

Benefits

  • Minimizes product degradation with low thermal and mechanical stress processing.
  • Achieves precise emulsion consistency with narrow droplet size distribution and monodispersity.
  • Lowers operational costs with reduced energy consumption in emulsification.
  • Enhances production flexibility with customizable droplet size and throughput control.
  • Facilitates easy integration into existing lines with continuous inline processing.

General


Applications
Food,Liquid formulations,Fine chemicals,Cosmetics,Emulsions,Life sciences,Pharmaceuticals
End products
High-concentration emulsion formulations,Nanoemulsions for skincare,Vitamin-enriched beverage emulsions,Nutraceutical emulsions,Flavor emulsions,Liposome-based drug delivery systems,Monodisperse cosmetic emulsions
Steps before
Purification,Grinding,Pre-mixing
Steps after
Sterilization,Packing,Quality Control
Input ingredients
disperse phase,continuous phase,liquid phase
Output ingredients
emulsions,double emulsions,small droplets,monodisperse emulsions
Market info

Technical Specifications


Max. throughput
Approx. 5 – 40 l/h of liquid phase
Max. working pressure
6 bar(g) for continuous phase / 20 bar(g) for dispersed phase
Operating temperature
90 °C
Motor power
4.0 kW
Motor speed
10 000 rpm
Voltage
3 x 400 V
Frequency
167 Hz
Speed control
By frequency inverter
Working chamber type
MMK 1-56 DW,horizontal design
Membrane module type
MMG 55 / 2
Membrane pore diameter
1 – 2 μm
Seal type
Double mechanical seal
Droplet size
Sub micron area
Pump flow rate
up to approx. 40 l/h
Gas flow
up to approx. 40 l / h
Control system
Touch screen panel 6.4” TFT color
Network connectivity
10 / 100 Mbit
Protection class
front IP 65 / back IP 20

Operating Characteristics


Working mechanism
Membrane emulsification
Batch vs. continuous operation
Inline Continuous
Automation level
Touch screen panel control
Energy efficiency
Low energy consumption
Cleaning method
CIP / Manual
Controllability
Reproducible control of throughput and droplet size
Heating/Cooling capability
Heating/Cooling jacket

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Foaming tendency
Non-foaming preferred
High concentration emulsions
Up to 50% disperse phase
Mechanical impact tolerance
Gentle processing

Physical Characteristics


Cylinder shape and size
Cylindrical working chamber with membrane
Feed method
Axial feed for disperse phase
Discharge method
Continuous dispersion into outer phase
Control panel type
Touch screen panel
Compact footprint
Horizontal design with integrated components
Cooling option
Heating/cooling jacket
Material
316L Stainless Steel

Custom Options


Control panel type
Touch screen panel,6.4” TFT color
Integration possibilities
USB- and RS232-Connection,Network 10/100 Mbit
