Melt crystallization for high purity chemical products
Achieve ultra-pure products with minimal energy by integrating melt crystallization into your process, perfect for separating closely related compounds without solvents.
Crystallizes and Purifies High-Purity Compounds

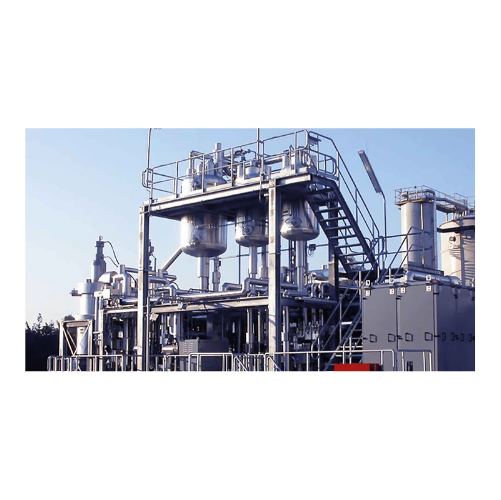

The Melt Crystallizers from GEA are designed for industries demanding high-purity results, such as pharmaceuticals and fine chemicals. Utilizing a suspension-based crystallization system, it concentrates impurities in the mother liquor while ensuring crystal purity. Suitable for applications from catalyst material purification to solvent-free aroma extraction, it operates continuously with low energy consumption, reducing heat requirement by up to four times compared to traditional methods. Featuring integration-ready automation, these crystallizers offer stainless steel construction for enhanced chemical resistance. They seamlessly fit into your processing line, allowing easy debottlenecking of existing distillation processes to increase capacity by 25%. Incorporating advanced wash columns, they guarantee superior purity by effectively removing residual mother liquor. GEA also provides engineering support for customization, ensuring the equipment meets your specific processing needs.
Benefits
- Delivers ultra-high purity by concentrating impurities outside the crystal mass.
- Lowers energy consumption with efficient crystallization at reduced heat levels.
- Enhances processing capacity by up to 25% through seamless integration with existing systems.
- Eliminates solvent use, reducing environmental impact and waste byproducts.
- Ensures consistent, continuous operation for maximum production efficiency.
- Applications
- Food,Fine chemicals,Gas,Energy,Beverage,Oil,Environment,New food,Pharmaceuticals
- End products
- Solvent-free aroma extracts,Specialty chemicals,Ultra-pure catalyst materials,Purified pharmaceutical compounds,High-purity food additives,Refined essential oils
- Steps before
- Purification,Filtration,Heating
- Steps after
- Packaging,Quality Assurance
- Input ingredients
- crude product,impure melts
- Output ingredients
- pure product crystals,reject stream,pure liquid product,high purity product
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Operation Mode
- Continuous
- Energy Consumption
- Low
- Operation Temperature
- Low
- Heat Requirement
- Two to four times lower than evaporation
- Crystallization Process
- Suspension-based
- Component Separation
- Close boiling points
- Product Purity
- High
- Crystal Growth Rate
- Slow
- Wash Column Efficiency
- High
- Crystal Growth Surface
- 5,000 to 10,000 m² per m³
- Debottlenecking Capacity
- +25%
- Operation mode
- Continuous
- Energy consumption
- Low
- Solvent-free operation
- Yes
- Temperature range
- Low operation temperatures
- Yield management
- Two-stage option
- Feed separation
- Adjustable purities
- Phase change efficiency
- High due to low latent heat
- Component separation
- Effective for close boiling points
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact
- Crystallizer type
- Scraped surface,exchanger type,or vessel type
- Control panel type
- Automated
- Discharge method
- Liquid product discharge
- Manual/automated control
- Automated
- Customization of purity levels
- Adjustable
- Operation mode
- Continuous
- Scaling Options
- Compact footprint
