Medium-speed automatic shrink wrapping systems for food and dairy

Optimize your packaging line with this flexible shrink wrapping system, designed for seamless integration and handling a wide variety of product shapes from UHT milk cartons to detergent bottles, ensuring consistent quality and hygiene standards.

Wraps, Seals, and Stacks Product Packages

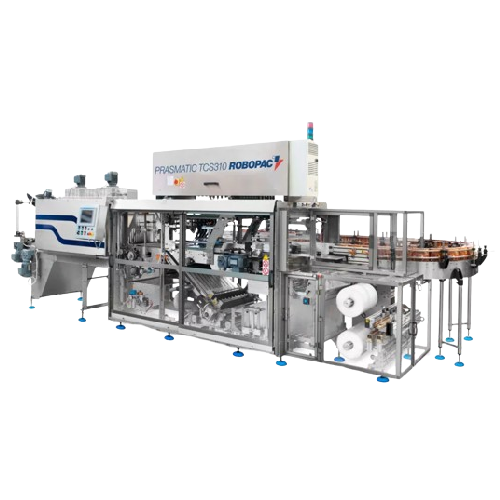

The Prasmatic TCS 310 Shrink is a medium-speed shrink wrapping machine tailored for industries such as food, dairy, beverage, and personal care. This equipment stands out for its flexibility and ability to handle both solid and liquid products like UHT milk cartons, fruit juice boxes, and detergent bottles. It uses an efficient film sealing and stacking process, with an automatic reel change feature to minimize downtime and ensure continuous operation. With output capacities reaching up to 30 packages per minute, it’s designed for seamless integration into existing production lines. The TCS 310 is engineered for high hygiene standards with ergonomic access for maintenance, making it ideal for production environments where reliability and cleanliness are paramount.

Benefits

  • Enhances packaging flexibility with an ergonomic design and multiple packaging type capabilities.
  • Minimizes production downtime through automatic reel change functionality.
  • Maintains high hygiene standards essential for food and dairy industries.
  • Simplifies integration into existing lines with continuous operation and 90° or in-line feeding options.
  • Improves operational efficiency with quick format changeovers and easy maintenance access.

General


Applications
Food,Beverage,Tissue,Lubricants,Paper,Home and personal care,Corrugated,Sauce,Detergent bottles,Dairy
End products
Motor oil bottles,Fruit juice boxes,Canned soup multipacks,Ice cream tubs,Uht milk cartons,Salad dressing bottles,Liquid detergent bottles,Tissue paper rolls,Ketchup bottles,Yogurt container bundles,Bottled water packs,Kitchen towel rolls,Shampoo bottles,Corrugated cardboard boxes,Napkin packs
Steps before
Product Grouping,Feed Orientation,Product Separation
Steps after
Palletizing,Packaging Inspection,Logistics Distribution
Input ingredients
bottles,cartons,boxes,product packages,film reels
Output ingredients
shrink-wrapped packages,stacked product layers
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Output capacity
Up to 30 PPM
Blank magazine capacity
450 (depending on thickness)
Max blank length
1100 mm
Max blank width
600 mm
Max reel diameter
500 mm
Max reel width
680 mm
Max reel weight
80 Kg
Average size changeover time
10 ÷ 15 min
Feeding option
In-line or orthogonal feeding
Automation
Automatic reel change
Film type
Various film reel positioning solutions
Machine speed
Medium-speed

Operating Characteristics


Feed System
In-line or Orthogonal
Output Capacity
Up to 30 PPM
Automation Level
High automation with PLC
Changeover Time
10 ÷ 15 min
Film Reel Handling
Automatic reel change
Energy Efficiency
High efficiency due to compact design
Hygiene Standard
High hygiene standards
Modular Design
Extremely ergonomic and flexible

Material Compatibility


Cleanability
Easy maintenance access
Durability
Compact and high reliability
Film compatibility
Various film reel positions

Product type Characteristics


Feeding Type
In-line / Orthogonal
Packaging Type
Film
Packaging Industry
Food / Dairy

Physical Characteristics


Machine footprint
Compact dimensions
Feeding method
In-line or orthogonal feeding
Discharge method
90° rotating separation,Double gripper separator
Control panel type
Ergonomic and flexible design
Film Reel Positioning
Ergonomically designed with external film group

Custom Options


Feeding type
In-line / Orthogonal
Film reel positioning
Ergonomically designed
Separator type
90° Rotating / Double gripper / Diagonal / Gripper with stacker
Reel change type
Automatic
Control panel interaction
Easy access
Stacking capability
Multiple layers
Package rotation device
90° / 180°
Cleaning access
Easy film unit access
Man-machine interaction
Excellent
