Manual bag tipping unit for powder handling
Ensure a contamination-free environment with a compact manual bag tipping unit, designed for safe and efficient powder handling with integrated dust collection and sifting capabilities, ideal for those seeking quality control and operational precision in production lines.
Efficiently Tips, Sifts, and Collects Dust from Powders

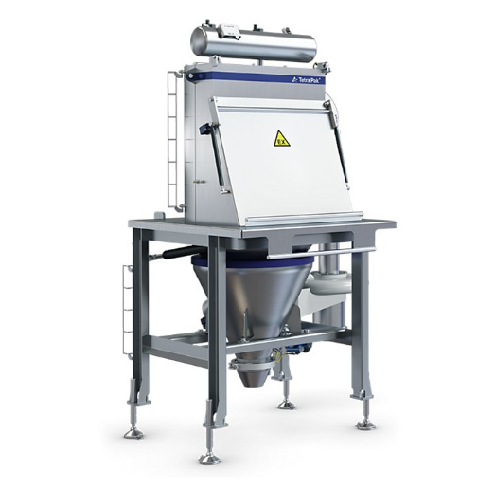

The Tetra Pak® Bag Tipping Unit CS VS600 provides a specialized solution for efficient manual powder handling across the food, dairy, and pharmaceutical industries. This compact unit ensures precise bag tipping up to 25 kg with integrated features to enhance safety and hygiene. The system incorporates a vibrating sifter to prevent contaminants from entering the end product, coupled with an automatic dust collection system that minimizes emissions and allows for continuous powder recycling. Typical applications include producing infant formula, milk powders, protein powders, and nutritional supplements. Operated manually, it manages capacities commonly around 1.5 T/h, depending on sieve mesh and product characteristics. Constructed with a hygienic stainless steel design, it offers easy maintenance via a tilting body feature for complete access and internal cleaning. Optional integration with external dust collectors enhances its adaptability in diverse operational settings.
Benefits
- Enhances operational safety and ergonomics with exhaust filter and safety switch.
- Minimizes contamination risk with integrated vibrating sifter and hygienic design.
- Reduces dust emissions and conserves materials with automatic dust collection system.
- Simplifies maintenance and cleaning through a tilting body for full internal access.
- Adaptable for diverse powder handling needs, supporting up to 1.5 T/h throughput.
- Applications
- Food,Nectar,Pharmaceutical powder,Still drinks,Whey powder,Plant-based products,Ice cream,Juice,Dairy
- End products
- Flavored drink mixes,Cheese powders,Powdered sugar,Protein powder,Infant formula powder,Bakery mixes,Lactose-free powdered milk,Vitamin-enriched dairy powders,Cocoa powder,Coffee creamers,Dried fruit powders,Whey protein isolate,Non-dairy creamers,Nutritional supplements,Milk powder,Plant-based milk alternatives,Dehydrated juice crystals,Powdered ice cream bases,Vegan protein powder,Dairy protein concentrate,Instant soup bases
- Steps before
- Mixing,Homogenization,Blending
- Steps after
- Packing,Sealing,Quality Control
- Input ingredients
- powder bags up to 25 kg
- Output ingredients
- filtered powder,end-product free from foreign bodies
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Capacity
- 1.5 T/h
- Manual bag tipping weight
- Up to 25 kg
- Hygienic standard
- High
- Filtration system
- Automatic dust collection
- Vibrating sifter
- Integrated
- Cleaning method
- Tilting body for easy cleaning
- Manual tipping capability
- Yes
- Integrated sifter
- Yes
- Dust emission control
- Minimal
- Cleaning method
- Easy with tilting body
- Operator safety features
- Exhaust filter,safety switch
- Batch vs. continuous operation
- Batch
- Cleanability
- Easy cleaning with tilting body
- Biological compatibility
- High hygiene standard suitable for food and pharmaceutical industries
- Abrasion resistance
- Durable materials suitable for powder handling
- Corrosive resistance (e.g.,acids)
- Stainless steel construction
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Powder Bag Size Capacity
- Up to 25 kg
- Industries Applicable
- Food,Dairy,Pharmaceutical
- Machine footprint
- Compact design
- Discharge method
- Manual tipping
- Feed type
- Powder bags up to 25 kg
- Control panel type
- Manual operation
- Filtration system
- Integrated automatic dust collection
- Control panel type
- Options available
- Integration possibilities
- Compatible with separate dust collectors
- Discharge method
- Manual tipping with integrated vibrating sifter
- Cleaning method
- Easy cleaning with tilting body for full access
- Compact footprint
- Hygienic compact design
