Loading bellows for drums and Ibcs

Ensure dust-free loading of bulk solids into confined spaces with compact, pneumatically operated bellows, maximizing efficiency where space constraints challenge operations.

Facilitates Dust-Free Loading of Bulk Solids

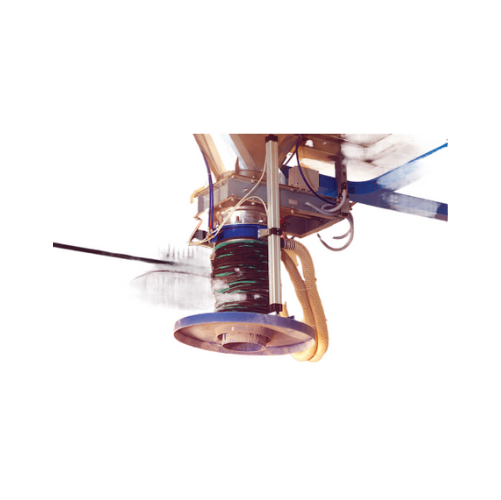

The MINIFILL ZM Loading Bellows from WAMGROUP offers a compact solution for achieving dust-free loading of bulk solids into drums and IBCs. Specifically designed for industries such as chemicals, pharmaceuticals, and plastics, the MINIFILL ZM leverages a double bellows chute design, significantly enhancing efficiency when dealing with fine dust. This system operates via two pneumatic cylinders, ensuring reliable performance in continuous operations. It can handle a maximum throughput rate of 120 m³/h and operate within a temperature range from -15 to 120 °C, making it versatile for various environmental conditions. Available in a variety of chute materials, the MINIFILL ZM offers compatibility with a wide array of bulk materials like powdered sugar and synthetic rubber pellets. Its compact dimensions make it an excellent choice for facilities with space constraints, and the equipment supports easy maintenance with its special bottom plate design for dust-free operation.

Benefits

  • Ensures precise dust-free loading, improving worker safety and cleanliness.
  • Optimizes space with compact design suitable for confined areas.
  • Enhances processing efficiency with pneumatic operation for continuous flow.
  • Adaptable to various materials through customizable chute options.
  • Minimizes maintenance downtime with easy-access design and robust construction.

General


Applications
Chemicals,Dust-free materials,Drums,Ibcs,Bulk solids,Plastics,Varnishes,Resins,Paints,Rubber,Pharmaceuticals
End products
Polymer beads,Epoxy resins,Powdered sugar,Pvc granules,Acrylic paint,Protein powder,Synthetic rubber pellets,Polyurethane varnish,Talcum powder,Paracetamol powder
Steps before
Bulk Solids Collection,Material Weighing,Pre-Sorting,Blending,Mixing
Steps after
Dust Collection,Material Packing,Quality Inspection,Storage,Transportation
Input ingredients
bulk solids,fine dust
Output ingredients
drums,IBCs,dust-free loaded materials
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Inlet diameter
200 mm (12 in)
Maximum throughput rate
120 m3/h (70.6 cfm)
Operating temperature
-15 ~ 120 °C (5 ~ 248 °F)
Suction fan rate
Increased with very fine dust
Pneumatic operation
Two pneumatic cylinders

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Pneumatic
Dust-free operation
Yes
Suction fan rate
Adjustable
Space optimization
Compact overall dimensions

Material Compatibility


Corrosive Resistance
High resistance to acids/alkalis
Dust Compatibility
Suitable for very fine dust
Temperature Compatibility
-15 ~ 120 °C (5 ~ 248 °F)

Product type Characteristics


Container type
Drums / IBCs

Physical Characteristics


Compact footprint
Yes
Discharge method
Dust-free loading
Double bellows chute design
Yes

Custom Options


Chute Material
Various materials available
Fabrication Material
Depends on material handled
Compact Footprint
Yes
Discharge Method
Dust-free loading
