Live bin bottom for difficult material discharge
Efficiently manage the discharge of challenging materials like biological sludge and sawdust from hoppers or silos, ensuring consistent flow and preventing blockages in your production line operations.
Extracts and Feeds Challenging Bulk Materials

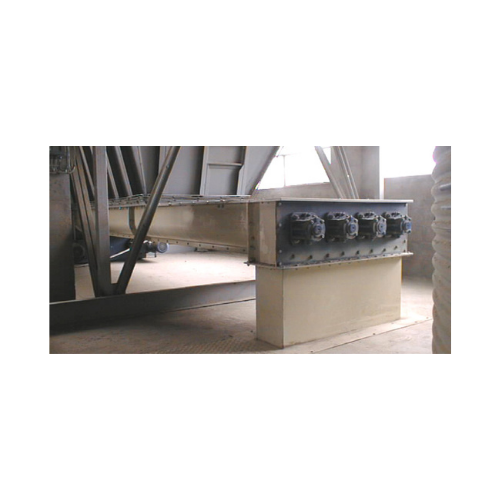

The Live Bin Bottoms MU from WAMGROUP provide an efficient solution for the continuous discharging and feeding of challenging bulk materials like biological and industrial sludges, paper scrap, and flour. Featuring a modular design with multiple screw feeders, they ensure consistent mass flow, minimizing material bridging and segregation in processing lines. Each unit can be configured with up to six helicoid flight screws housed in a carbon steel, stainless steel, or SINT polymer trough, catering to medium and heavy-duty operations. Used across various industries—from environmental technology to food processing—this equipment supports diverse applications such as biosolids management and animal feed production. Its modular sections and independent gear motor drives facilitate seamless integration and customization in existing systems. Furthermore, the robust build with self-cleaning capabilities, external flanged bearings, and adjustable gland seals reduces maintenance downtime, optimizing operational efficiency. With a diameter range of 150–600 mm and lengths from 1,500 to 4,000 mm, the Live Bin Bottoms MU are engineered to accommodate specific production requirements.
Benefits
- Ensures consistent mass flow, minimizing production disruptions.
- Reduces material bridging, maximizing operational efficiency.
- Supports diverse materials, enhancing process flexibility.
- Modular design facilitates easy integration and customization.
- Lowers maintenance needs with self-cleaning and robust construction.
- Applications
- Paper scrap,Paper processing,Wood chippings,Sawdust,Animal feed milling,Biological sludge,Industrial sludge,Flour milling,Starch,Rice milling,Bran,Pet food,Vegetable processing,Fish food,By-products processing,Wood biomass,Flour,Pulp,Breweries,Fruit
- End products
- Cat litter,Whole wheat flour,Dog kibble,Wood pellets,Recycled paper pulp,Sewage sludge,Copier paper,Animal bedding,Craft beer,Biosolids,Fish pellets,Biofuel,Mdf boards,Corn starch,Particleboard,Canned peaches,Bioethanol,Frozen vegetable mixes,Cat treats,Paperboard,All-purpose flour,Rice flour
- Steps before
- Material Storage,Material Collection,Material Transport
- Steps after
- Bulk Material Loading,Material Conveying,Packaging
- Input ingredients
- biological sludge,industrial sludge,paper scrap,wood chippings,sawdust,flour,bran
- Output ingredients
- discharged sludge,discharged paper scrap,discharged wood chippings,discharged sawdust,discharged flour,discharged bran
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Screw diameter
- 150 ~ 600 mm (6 ~ 24 in)
- Number of Screws
- Up to six screws in one trough
- Trough length
- 1,500 to 4,000 mm (5 ~ 13 ft)
- Material
- Carbon steel,stainless steel or SINT engineering polymer
- Drive Type
- Gear motor drive for each screw
- Heavy-Duty Type
- Medium heavy-duty or extra heavy-duty
- Material extraction method
- Screw conveyor system
- Mass flow promotion
- Yes
- Feed rate control
- Constant
- Bridging prevention
- Yes
- Segregation avoidance
- Yes
- Cleanliness/self-cleaning
- High degree of self-cleaning
- Drive configuration
- Independent gear motor for each screw
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- High
- Density/particle size
- Varied,adaptable
- Corrosive resistance (e.g. acids)
- Yes
- Screw diameter
- 150 ~ 600 mm (6 ~ 24 in)
- Trough length
- 1,500 to 4,000 mm (5 ~ 13 ft)
- Number of screws per trough
- Up to six screws
- Trough material
- Carbon steel,stainless steel,or SINT engineering polymer
- Outlet spout
- Rectangular cross section with WAM standard flanges
- End bearing assemblies material
- Robust flanged cast iron
- Screw material
- Carbon steel,stainless steel,or SINT engineering polymer
- Modular design
- Enables easy access and individual design features
- Material of construction
- Carbon steel,stainless steel,SINT engineering polymer
- Screw type
- Helicoid flight screws or paddle screws
- Trough length
- 1,500 to 4,000 mm (5 to 13 ft)
- Trough housing material
- Carbon steel,stainless steel
- Screw size/dimension
- 150 ~ 600 mm (6 ~ 24 in)
- Number of screws
- Up to six screws
- Gear motor drive
- Independent direct compact gear motor drive for each screw
- Drive unit
- One gear motor per screw shaft or drive unit driving more screws
