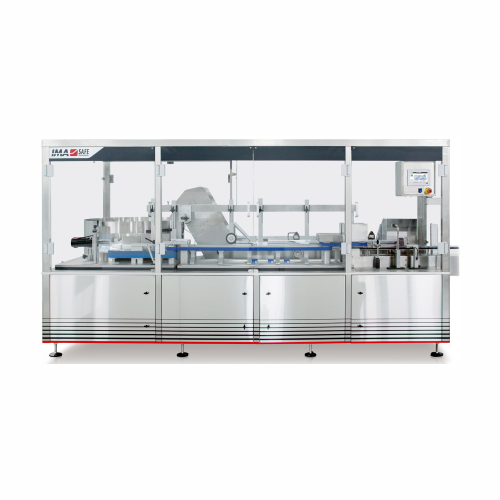

Linear bottle sorter and unscrambler
Streamline your bottle feeding with high-speed sorting, unscrambling, and inspection, ensuring flawless operation and reduced manual intervention for diverse packaging lines.
Unscrambles, Inspects, and Cleans Bottles
The ILS-1 Linear Bottle Unscrambler and Inspection System from IMA Group is designed for pharmaceutical, nutraceutical, and personal care production lines. It features an integrated bulk hopper and ionized air rinse that ensure efficient bottle feeding and cleanliness. The system’s unique selling point is its tool-less changeover and absence of bottle change parts, which accommodate a vast array of bottle sizes and shapes with minimal downtime. Handling up to 300 bottles per minute, the ILS-1 easily adapts to existing conveyor designs, making it a versatile addition to any packaging line. The integrated inspection and rejection process automatically returns any upside-down or fallen bottles to the hopper, optimizing workflow. With digital indicators for changeover points and an optional advanced cleaning system, the machine meets GMP standards and operates with reduced energy consumption, ensuring sustainability and efficiency in demanding environments.
Benefits
- Maximizes operational efficiency with rapid, tool-less changeovers.
- Enhances productivity by processing up to 300 bottles per minute.
- Ensures product integrity with automatic rejection of misaligned bottles.
- Reduces energy consumption through an optimized design.
- Meets GMP standards, ensuring compliance with strict industry regulations.
- Applications
- Supplement bottles,Pharmaceutical bottles,Nutraceutical bottles,Home care bottles,Vitamin bottles,Personal care bottles
- End products
- Liquid soap dispensers,Pill bottles,Capsule containers,Dietary supplement containers,Herbal supplement bottles,Softgel jars,Skincare lotion bottles,Conditioner bottles,Household cleaner containers,Vitamin c bottle packs,Shampoo bottles,Detergent bottles
- Steps before
- Bottle feeding,Bottle sorting,Loading bottles into bulk hopper
- Steps after
- Bottle inspection,Bottle rejection,Integration into packaging line,Conveyor transfer,Packaging
- Input ingredients
- bulk hopper,upside down bottles,fallen bottles
- Output ingredients
- oriented bottles,scrambled bottles
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Bottle Output
- Up to 300 bpm
- Bottle range - Length (Min)
- 30 mm (1.18″)
- Bottle range - Width (Min)
- 30 mm (1.18″)
- Bottle range - Height (Min)
- 40 mm (1.57″)
- Bottle range - Length (Max)
- 115 mm (4.52″)
- Bottle range - Width (Max)
- 115 mm (4.52″)
- Bottle range - Height (Max)
- 200 mm (7.87″)
- Bulk hopper capacity
- 525 liter (18.5 ft³)
- Noise emission
- Very low
- Changeover
- No bottle change parts required
- Energy Consumption
- Reduced to a minimum
- Rejection System
- Integrated fallen/upside down bottle rejection station
- Bottle Cleaning
- Ionization and cleaning included as standard
- Automation
- Digital indicators and scales for all changeover points
- Flexibility
- Adapts to most conveyor designs
- Facility Compatibility
- Can be installed in new or existing packaging lines
- Working mechanism
- Inline sorting and unscrambling
- Integration capability
- Compatible with existing packaging lines
- Bottle handling capacity
- Up to 300 bpm
- Noise emission
- Very low noise
- Automation level
- Integrated inspection/rejection system
- Changeover time
- Quick tool-less changeover
- Bottle rejection mechanism
- Automatic return to bulk hopper
- Bottle cleaning method
- Ionized air rinse
- Energy efficiency
- Reduced energy consumption
- Cleanability
- Easy to clean
- Density/particle size
- 0.5–2.5 g/cm³
- Bottle size compatibility
- 30 mm to 115 mm width,40 mm to 200 mm height
- Bottle shape compatibility
- Round,rectangular,square
- Output capacity
- Up to 300 bpm
- Adaptability to conveyor designs
- Compatible with most conveyor designs
- Tool-free changeovers
- Yes
- Noise emission
- Very low
- Operator safety
- Fully interlocked enclosure
- Bottle inspection and rejection system
- Integrated
- Recycling of upside-down or fallen bottles
- Automatic return to bulk hopper
- Ionized air rinse capability
- Included as standard
- Energy efficiency
- Reduced consumption
- Digital indicators and scales
- Included for all changeover points
- Discharge method
- Linear unscrambler
- Machine footprint
- Designed for adaptability to most conveyor designs
- Footprint
- Adaptable
- Ergonomics
- Ergonomic bulk hopper loading height
- Interlocked Enclosure
- Fully interlocked guarding
- Control panel type
- HMI available
- Integration possibilities
- Compatible with new and existing packaging lines
- Customization available
- Quick changeover without tools or change parts
- Enclosure
- Fully interlocked with safety features
- Bottle range adaptability
- Handles wide range of bottles
