Linear big bottle water filling solution

Streamline your large-format water bottling process with integrated washing, filling, and capping, ensuring high-speed efficiency and precise control for packaging 3L to 10L bottles.

Rinses, Fills, and Caps Large Water Bottles

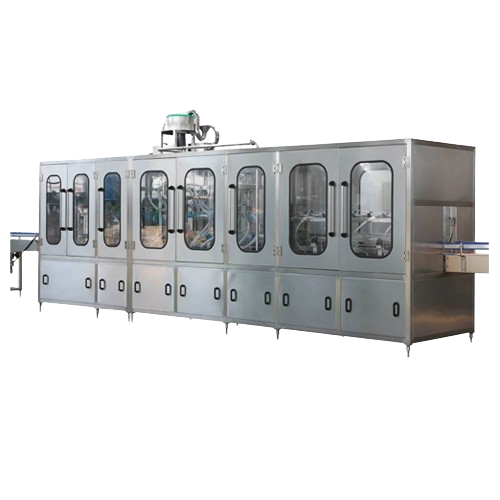

The LGF4-4-1, LGF6-6-1, and LGF8-8-1 models from Alps Machinery streamline your bottling operations with their integrated 3-in-1 system, ensuring efficient rinsing, filling, and capping for large water bottles ranging from 3L to 10L. These machines operate under a gravity filling principle, ideal for handling non-carbonated water products like distilled, mineral, and spring water. With capacities ranging from 400 to 1000 BPH, these machines cater to high-volume production requirements typical of large-scale beverage factories and water bottling companies.

Fully automatic, the units facilitate seamless operation with adjustable speeds, enabling steady bottle movement and reliable processing. The durable construction with high-quality stainless steel ensures longevity and resistance to corrosion, essential for maintaining hygiene standards. Their compatibility with standard industry automation systems means ease of integration into existing operational lines, reducing downtime and enhancing throughput efficiency.

Additionally, comprehensive engineering support from Alps Machinery allows for customization tailored to specific production needs, ensuring that you optimize your process while maintaining compliance with industry regulations. With reduced energy consumption through optimized motor control, the machines are both cost-effective and environmentally friendly solutions for the bottled water sector.

Benefits

  • Enhances production efficiency by consolidating rinsing, filling, and capping in one seamless operation.
  • Ensures product quality and safety with stainless steel construction that resists corrosion and contamination.
  • Adapts to various bottle sizes (3L-10L) with easy adjustments, optimizing flexibility.
  • Reduces operational costs and energy usage with advanced motor control and automated processes.
  • Supports high-speed, continuous operations with reliable, low-maintenance design, increasing overall throughput.

General


Applications
Mineral water,Pure water,Drinking water,Spring water
End products
Mineral water bottles,Spring water in 3l-10l bottles,Distilled water,Purified bottled water,Large format water containers
Steps before
Bottle Blowing,Water Treatment,Bottle Rinsing
Steps after
Capping,Packing,Labeling
Input ingredients
3L to 10L empty plastic bottles,drinking water,pure water,mineral water,spring water
Output ingredients
filled and capped water bottles,3L water bottles,5L water bottles,10L water bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
400–1000 BPH
Bottle Sizes
3L to 10L
Filling type
Gravity Filling
Filling heads
4 pcs / 6 pcs / 8 pcs
Compressor air
0.4–0.6 Mpa
Total power
2.5 kW / 4.5 kW / 5.5 kW
Overall dimensions
3.4X1.2m / 4.4X1.2m / 5.4X1.2m
Height
2m
Weight
1500kg / 2500kg / 3000kg
Filling system
Automatic

Operating Characteristics


Working mechanism
Rinsing,Filling,Capping
Integrated steps
3-in-1 Unit (Washing,Filling,Capping)
Automation level
Automatic
Batch vs. continuous operation
Inline Continuous
Cleaning method
Sanitized bottle out

Material Compatibility


Corrosive resistance
High
Biological compatibility
Complies with drinking water standards
Cleanability
Hygienic design (easy cleaning)
Rust resistance
Made of high-quality stainless steel

Product type Characteristics


Container size
3L to 10L
Container type
Plastic bottle
Filling purpose
Big bottle drinking water

Physical Characteristics


Machine footprint
3.4x1.2m,4.4x1.2m,5.4x1.2m
Height
2m
Weight
1500kg,2500kg,3000kg
Material
High quality stainless steel
Bottle sizes
3L to 10L
Discharge method
Conveyor belt

Custom Options


Control panel type
Touchscreen / HMI
Integration possibilities
Can integrate with existing conveyor systems
Bottle size range customization
3L to 10L
Filling capacity adjustment
400~1000 BPH
Material of construction
Stainless Steel
