Lifting column for industrial packing drum handling

Efficiently handle heavy drums and containers with precision—streamline your production line by seamlessly lifting, lowering, and rotating materials without the risk of leaks or positioning errors.

Lifts and Positions Heavy Drum Containers

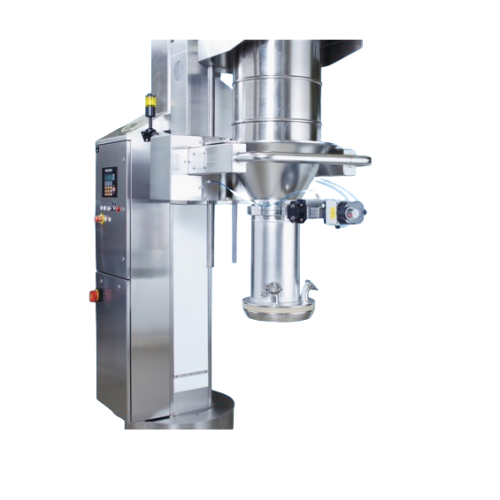

The Lifting Column from AZO GmbH & Co. KG is a robust electromechanical system engineered for precise handling of heavy drum containers across multiple production levels. Its electromechanical drive with a chain mechanism ensures reliable vertical movement and rotation, eliminating hydraulic leak concerns. This equipment is ideal for pharmaceutical, chemical, and food processing environments, effectively maneuvering bulk materials, granules, and powders like pharmaceutical ingredients and industrial chemicals. The column can handle diverse payloads with accuracy, aided by a programmable controller that ensures precise positioning in various operations, including lifting, lowering, and docking. With a modular design for easy integration in automated lines, the column supports different extension arms for flexible configuration. Built to withstand demanding industrial conditions, it offers overload protection and a motor brake for safety. The system’s stainless steel construction supports pharmaceutical compliance, ensuring dependable performance and minimal maintenance in critical applications.

Benefits

  • Enhances operational efficiency by eliminating hydraulic maintenance with electromechanical drive.
  • Improves safety with precise and programmable load positioning.
  • Increases flexibility with modular arm configurations for diverse applications.
  • Minimizes manual handling labor costs through automated lifting and docking operations.
  • Ensures compliance with industrial safety standards through robust safety features.

General


Applications
Flow-resistant materials,Heavy loads,Powdered materials,Granular materials,Bulk materials,Pharmaceutical materials
End products
Granulated sugar sacks,Flow-resistant chemical containers,Cement sacks,Pharmaceutical ingredient drums,Drum containers of chemicals,Industrial paint drums,Pharmaceutical powder containers,Granular plastic pellets,Bulk spice barrels,Food-grade ingredient barrels,Flowable shelving units
Steps before
Material Handling,Bulk Material Preparation,Pre-Assembly,Storage
Steps after
Rotating,Turning,Docking,Transport to Next Processing Stage
Input ingredients
Output ingredients
Market info
AZO is renowned for designing and manufacturing automated bulk material handling systems, specializing in mixer feeding, ingredient automation, and process control, known for their reliability and tailored solutions in the food, pharmaceuticals, and chemical industries.

Technical Specifications


Drive Type
Electromechanical with drive chain
Hydraulic Unit
None
Motor Brake
Extremely accurate positioning
Positioning Accuracy
Precise in upward,downward,rotating,and turning movements
Positioning Control
Freely programmable controller
Design Type
Standardised design with modular systems
Mounting Type
Free-standing or ceiling/wall mounted
Overload Safety Device
Optional,shuts down drive under excessive load
Structure Type
Rigid or turnable about vertical axis
Load Platform Movement
Vertical up and down
Load Platform Safety
Mechanical brake prevents uncontrolled dropping
Control Methods
Limit switches or position controller
Load Handling
Lifting,lowering,rotating,turning,and docking heavy loads

Operating Characteristics


Working mechanism
Electromechanical drive with drive chain
Automation level
Freely programmable controller
Positioning accuracy
Extremely accurate positioning
Movement control
Limit switches or position controller
Overload protection
Optional overload safety device
Brake system
Motor brake for safety

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Load Type
Heavy

Physical Characteristics


Machine footprint
Free-standing,anchored to floor
Structure type
Rigid or turnable about vertical axis
Installation type
Floor,ceiling,or wall mounted
Drive type
Electromechanical with drive chain
Control type
Freely programmable controller
Load platform
Attached to carriage,vertically movable

Custom Options


Control panel type
Freely programmable controller
Extension arms/carrier plates
Standardised design for modularity
Integration possibilities
Rigid or rotatable structure
Installation method
Floor,ceiling,or wall mountable
Drive system type
Electromechanical drive with drive chain
