Large bottle water filling system

Streamline your bottled water production with an integrated solution that efficiently washes, fills, caps, sterilizes, and counts large bottles, ensuring product cleanliness and speeding up your packaging line.

Washes, Fills, and Caps Large Water Bottles

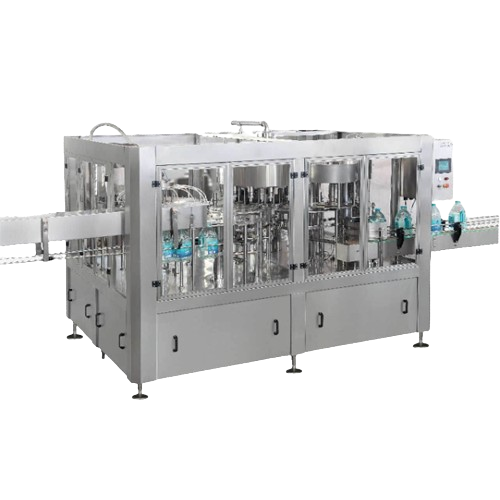

The XGF12-12-4 from Alps Machinery is a rotary type water filling machine specifically crafted for large-scale beverage production. This machine excels in integrating washing, filling, and capping for 5L and 10L bottled water applications, ensuring a high degree of cleanliness and efficiency. Utilizing a gravity filling mechanism, it maintains precision and stability, while the advanced system automates bottle handling from start to finish, including rinsing, sterilizing, and counting. The machine operates at a capacity of 1500 to 2000 bottles per hour, with all contact parts made from food-grade SUS304/316 stainless steel for durability and hygiene. Ideal for drinking water, pure water, and mineral water production, its robust design ensures reduced water usage and minimal bottle crash. Equipped with electromagnetic capping heads and a cap unscrambler, it guarantees secure sealing. Fully compliant with food and beverage industry standards, this machine is a versatile and reliable choice for producers seeking an efficient, integrated solution.

Benefits

  • Increases operational efficiency by integrating washing, filling, and capping in one seamless unit.
  • Enhances hygiene standards with advanced rinsing and sterilizing processes.
  • Supports high production demands with a throughput of up to 2000 bottles per hour.
  • Reduces water usage and environmental impact through optimized rinsing techniques.
  • Ensures durability and longevity with food-grade stainless steel construction.

General


Applications
Mineral water,Pure water,Drinking water,Spring water
End products
Bottled drinking water,Packaged pure water,Branded mineral water,Spring water in 5l bottles,Spring water in 10l bottles
Steps before
Water Treatment,Bottle Blowing,Injection Molding
Steps after
Labeling,Packing,Counting,Products Discharging
Input ingredients
5L bottles,10L bottles,drinking water,pure water,mineral water,spring water
Output ingredients
filled bottles,capped bottles,clean bottles,sterilized bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
1500–2000 Bottles/hour
Bottle Sizes
5L–10L
Filling heads
12 pcs
Compressor Air
0.4–0.6 Mpa
Total power
4.5kw
Overall Dimensions
3.2x2.0m
Height
2.3m
Weight
3000kg
Filling type
Gravity Filling
Filling volume adjustable
Yes
No Bottle No Filling
Yes
No Bottle No Capping
Yes

Operating Characteristics


Working mechanism
Rotary Type
Integrated steps
Washing,Filling,Capping
Automation level
High degree of automation
Cleaning method
Circularly with multi washing liquid spray
Functionality
Mechanism,electricity,and pneumatics technologies
Sterilization method
Thimerosal spray and water spraying device
Carry out operations
Automatic barrel washing,sterilizing,filling,capping,counting,and product discharging

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel (SUS304/316)

Physical Characteristics


Machine Footprint
3.2 x 2.0 m
Height
2.3 m
Weight
3000 kg
Discharge Method
Automatic product discharging
Control Panel Type
PLC-controlled

Custom Options


Control panel type
Electronic
