Laboratory mixer for intensive sample preparation
For precise and efficient preparation of both liquid and dry formulations, this high-speed laboratory mixer excels in creating homogeneous samples, emulsions, and dispersions, ensuring accurate analyses and exceptional product quality.
Mixes, Homogenizes, and Emulsifies Laboratory Samples

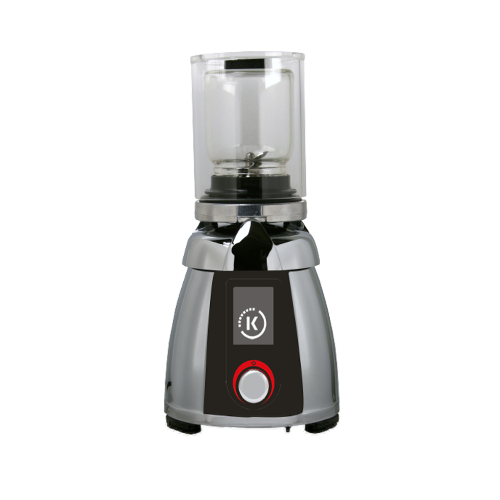

The MICROTRON MB 950 G from Kinematica AG is a high-speed laboratory mixer designed to meet the rigorous demands of pharmaceutical manufacturers and other related industries. This compact unit excels in mixing, homogenizing, and emulsifying applications, enabling precise preparation of liquid and dry formulations. Capable of processing a wide range of sample volumes from 125 to 1000 ml, the MICROTRON MB 950 G features a gearless direct drive motor, offering speeds between 1000 and 14,000 rpm for adaptable processing. Its ergonomic design ensures safe and simple operation, complete with a tool-free switching mechanism and integrated safety features. The equipment is built for durability, incorporating advanced load, heat, and blockage protection. Blending seamlessly into laboratory environments, it supports efficient sample preparation for products like liquid cough syrup, face creams, and protein shakes. Constructed to meet EN 60335-1 and related EMC standards, it provides reliable performance while ensuring user safety and sample integrity.
Benefits
- Enhances sample consistency with high-speed processing up to 14,000 rpm.
- Increases user safety via tool-free operation and integrated security systems.
- Adapts to diverse sample sizes with adjustable mixing attachments.
- Reduces operational noise, promoting a quieter laboratory environment.
- Extends equipment lifespan with Swiss-engineered durability and blockage protection.
- Applications
- Food,Dry formulations,Liquid formulations,Fine chemicals,Cosmetics,Emulsions,Life sciences,Dispersions,Homogenized samples,Pharmaceuticals
- End products
- Anti-aging serum,Salad dressing emulsion,Homogenized tissue samples,Flavored liquid extracts,Liquid cough syrup,Pigment dispersions in paint,Emulsified face cream,Dry vitamin supplement powder,Nanoparticle suspension,Protein shake mix
- Steps before
- Sample preparation,Material grinding,Material drying,Emulsification
- Steps after
- Sample analysis,Particle size assessment,Homogenization verification
- Input ingredients
- liquid mediums,dry mediums,cuttable materials
- Output ingredients
- homogeneous samples,fine particle sizes
- Market info
- Min. Volume
- 125 ml
- Max. Volume
- 1000 ml
- Power
- 950 W
- Speed range
- 1000 – 14,000 rpm
- Sound level
- ca. 72 dB(A) at 14,000 rpm
- Supply voltage
- 230 V ± 10 %
- Operating temperature
- 0 – 40 °C
- Protection class
- IP 20
- Dimensions
- ø 190 mm / 245 mm
- Weight
- 4.4 kg
- Working Mechanism
- Mixing,dispersing,homogenizing,emulsifying,mincing
- Rotational Speed Adjustment
- Smooth,load compensated
- Sample Volume Flexibility
- 125 ml to 1000 ml
- Operation Mode
- Manual with safety features
- Changeover Ease
- Tool-free attachment and cover switching
- Cooling System
- Integrated ventilation cooling
- Protection Features
- Load,heat,blockage protection
- Biological compatibility
- Yes
- Cleanability
- Easy to Clean
- Abrasion resistance
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Homogeneous Samples
- EMC standards
- EN 60335-1
- Safety standard
- Protection Class 1 according to EN 60335-1
- Machine dimensions
- ø 190mm / 245mm H
- Weight
- 4.4 kg
- Protection class
- IP 20
- Mixing Attachment Switching
- Tool-free
- Sample Container Designs
- Variety available
