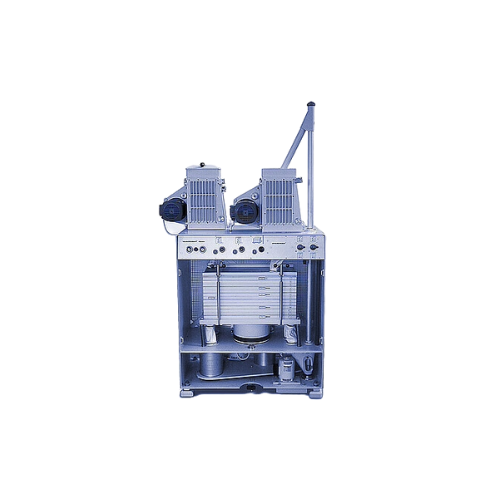

Laboratory grain milling system

Achieve precise grain milling and sample preparation with high-speed capability and gentle treatment, optimizing both yield and product quality for flour, semolina, and bran production.

Mills and Processes High-Moisture Grains

The Quadrumat Senior from Brabender is an essential laboratory grain milling machine designed for precision and versatility. It uniquely combines two 4-roller units for whole grain and meal/semolina release, enabling gentle milling with profile-ground rollers. This machine efficiently processes high-moisture grains, yielding products like wheat flour, semolina, and bran flakes with a throughput of 8–10 kg per hour. Ideal for food processing companies and agricultural research institutions, it supports seamless integration into laboratory and processing environments. Additionally, the Quadrumat Senior features a self-emptying sifter for simplified operation and maintenance, enhancing productivity. For increased efficiency, the unit can connect to the Brabender Bran Duster, boosting ash content and yield by approximately 5%. Available with material options to suit diverse operational demands, this equipment ensures compliance with standard industry practices and streamlined customization options.

Benefits

  • Increases product yield by up to 75% through efficient milling.
  • Enhances product quality with gentle processing via profile-ground rollers.
  • Simplifies operations with self-emptying sifter, reducing operator intervention.
  • Boosts operational efficiency with 5% higher ash content and yield using optional Bran Duster.
  • Supports diverse grain milling needs, offering flexibility for various end-products.

General


Applications
Meal production,Semolina production,Flour milling,Grain milling,Bran production
End products
Whole grain flour,Semolina,Semolina bran,Wheat flour,Durum wheat semolina,Bran flakes,Meal flour
Steps before
Grain Selection,Cleaning,Moisture Adjustment
Steps after
Product Separation,Bran Dusting,Packaging
Input ingredients
grain,durum wheat
Output ingredients
meal,flour,bran,semolina bran,semolina
Market info
Brabender is renowned for producing high-quality, engineered-to-order lab equipment for material testing, particularly in food and plastics industries, specializing in precision instruments for measuring, preparation, and processing.

Technical Specifications


Milling speed
8–10 kg/hour
Moisture content limit
max 18%
Milling precision
High precision
Milling zones
2 x 3 different zones
Milling yield
Approx 65–75%
Roller type
Profile-ground rollers
Sifter type
Self-emptying
Operating ease
Easy operation
Bran Duster connection
Optional
Yield increase with Bran Duster
Approx 5%

Operating Characteristics


Yield
65–75 %
Milling capacity
8–10 kg per hour
Moisture content
Up to 18%
Milling zones
2 x 3 different zones
Sample preparation
Four products
Integration with Bran Duster
Increase ash content and yield by ~5%

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
N/A
Corrosive resistance (e.g. acids)
Profile-ground,toughened rollers
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Cleanability
Self-emptying sifter

Product type Characteristics


Sample type
Grain,Whole grain,Semolina,Bran
Milling purpose
Sample preparation,Durum wheat milling
Product output
Meal,Flour,Bran,Semolina bran

Physical Characteristics


Milling zones
2 x 3 different milling zones
Rollers
Profile-ground,toughened rollers
Output Products
Meal,flour,bran,semolina bran
Self-emptying sifter
Yes
Yield
Approx 65–75 %

Custom Options


Control panel type
Profile-ground rollers
Integration with Bran Duster
Yes
