Laboratory fryer for food product development and small runs

Ideal for perfecting culinary creations, this fryer facilitates precise cooking trials, enabling product developers to refine recipes with consistent results in small batch processing.

Replicates Full-Scale Frying Processes

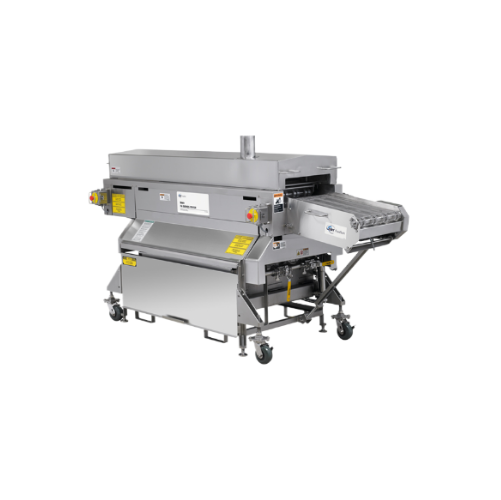

The Stein FA Series from JBT is an electric, directly heated, oil immersion fryer specifically designed for pilot and laboratory environments. This conveyorized fryer excels in replicating large-scale frying processes, enhancing product development for commissaries, restaurant chains, and mass feeding facilities. Featuring five longitudinally mounted electric heated immersion tubes, it ensures consistent oil temperature across the frying zone. The FA Series accommodates various product heights with an adjustable top submerger hold down conveyor, making it versatile for frying and pre-frying an array of coated and uncoated foods, including tempura shrimp, breaded chicken nuggets, and fried vegetable spring rolls. With a usable belt width of 14 inches and a frying length of four feet, it supports efficient small production runs. The system includes an on-board oil storage tank, circulation pump, and manual sediment filter for maintaining oil quality and simplifying cleaning operations. Available with optional tempura conveyor modifications and a 24-inch discharge conveyor, this equipment supports customization for specific processing needs.

Benefits

  • Ensures consistent product quality by maintaining uniform oil temperature across the frying zone.
  • Increases versatility, accommodating various product heights with adjustable conveyor systems.
  • Enhances flavor and texture development, suitable for a wide range of coated and uncoated products.
  • Reduces maintenance time with an integrated sediment filter and oil circulation system.
  • Provides efficient small batch processing, ideal for rapid prototyping and product development.

General


Applications
Seafood,Ready meals,Meat,Fruits,Commissary foods,Nuts,Mass feeding facility foods,Coated products,Poultry,Restaurant chain foods,School foods
End products
Jalapeño poppers,Fried vegetable spring rolls,Tempura vegetables,Battered fish fillets,Tempura shrimp,Deep-fried pork cutlets,Churros,Cheese sticks,Apple fritters,Fried plantains,Breaded chicken nuggets,Fried potato wedges,Glazed chicken wings,Honey-coated nuts,Crispy onion rings
Steps before
Coating,Preparation,Injection,Marination
Steps after
Cooling,Portioning,Slicing,Packaging
Input ingredients
coated food products,uncoated food substrates,oil for frying,tempura batter
Output ingredients
pre-fried food products,flavor-infused food,coating set products
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Fryer Type
Electric,directly heated,oil immersion
Usable Belt Width
14 inches
Usable Frying Length
4 feet
Heating Elements
Five longitudinal mounted electric heated immersion tubes
Oil Temperature Consistency
End to end and side to side
Low Oil Level Safety Switch
Yes
Conveyor Type
Adjustable top submerger hold down
Control Type
Push button controls
Electric Drive Availability
Yes
Oil Storage
On board oil storage tank and circulation pump
Sediment Filter
Manual

Operating Characteristics


Oil Temperature Consistency
End to end and side to side
Low Oil Level Detection
Automatic safety switch
Product Accommodation
Adjustable top submerger hold down conveyor
Fume Containment
Insulated hood
Oil Quality Maintenance
On board oil storage tank and circulation pump
Manual Sediment Filtration
Facilitates oil cleaning

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to clean
Density/particle size
0.8–1.2 g/cm³

Product type Characteristics


Product coating type
Coated/Uncoated

Physical Characteristics


Usable belt width
14 inches
Usable frying length
Four feet
Discharge conveyor width
24 inches
Electric heated immersion tubes
Five longitudinal mounted
Oil storage tank
On board with circulation pump

Custom Options


Control panel type
Push button controls
Discharge method
24 inch discharge conveyor
Submerger hold down conveyor adjustment
Adjustable top submerger conveyor
Conveyor modifications
Tempura conveyor with Teflon slat belt
