Laboratory chemically resistant dry scroll vacuum pump
Ensure efficient handling of aggressive or corrosive substances with this advanced vacuum solution, ideal for maintaining ultra-low pressures in sensitive applications while minimizing environmental impact and reducing maintenance demands.

Manages Aggressive Outgassing for Chemical Applications

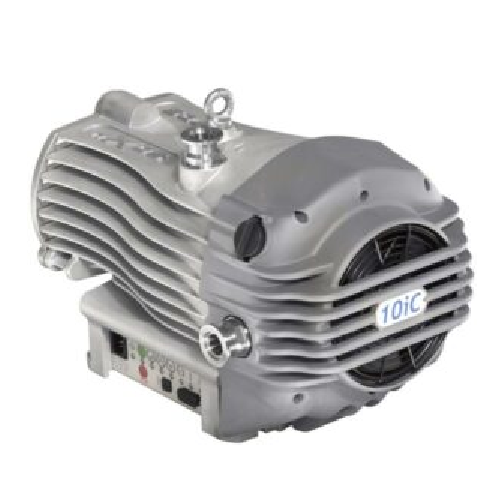

The Edwards nXDS Chemically Resistant Dry Scroll Vacuum Pump is expertly designed for demanding chemical environments, providing a robust solution to vacuum outgassing challenges. Utilizing Chemraz® internal valves and stainless steel fittings, it is specifically engineered to withstand aggressive, acidic, or corrosive materials. This pump excels in clean room processes, analytical laboratories, and high-energy physics applications, producing end-products such as pharmaceutical compounds and semiconductors. With a pumping speed range from 4 to 25 CFM and an oil-less operation, it reduces maintenance costs and environmental impact. The nXDS series offers improved control through RS-232/USB/RS-485 interfaces and enables automation and integration into existing systems. The pump promises energy efficiency with lower noise levels and enhanced vapor handling capabilities. For those aiming for continuous, high-speed operations, this vacuum pump ensures reliable performance with up to 40,000 operating hours before service, making it an optimal choice for modern laboratory and processing environments.
Benefits
- Minimizes maintenance costs and environmental impact with oil-less, dry operation.
- Enhances productivity with automated integration options for remote monitoring.
- Handles aggressive chemical environments with corrosion-resistant construction.
- Lowers operational noise to 52 decibels, ensuring a quieter work environment.
- Extends pump life with a 40,000-hour operating period before scheduled maintenance.
- Applications
- High energy physics,Glove boxes,Rotary evaporators,Vacuum ovens,Filtration,Research laboratories,Gel dryers,Coating systems,Clean room processes,Analytical,Solvent recovery,Chemical applications,Chamber evacuation,Distillation
- End products
- Chemical reagents,Thin film coatings,Solvent-free extracts,Semiconductors,Superconductor materials,Pharmaceutical compounds,Analytical samples,Dried gels,Degassed chambers,Inert atmosphere samples
- Steps before
- Material Outgassing,Material Preparation,Sample Loading
- Steps after
- Coating,Chamber Vacuuming,Solvent Recovery,Distillation,Filtration
- Input ingredients
- aggressive substances,acidic substances,corrosive substances,water vapor
- Output ingredients
- compressed gases,exhaust gases
- Market info
- Precision Extraction Solutions is known for providing innovative, high-quality extraction equipment and solutions for the cannabis industry, specializing in systems that enhance efficiency and safety in extracting cannabinoids and essential oils.
- Pump Type
- Oil-Free,Scroll
- Pumping Speed
- 4 CFM - 25 CFM
- Ultimate Pressure
- 0.005 Torr - 0.04 Torr
- Power
- 120V / 1ph / 10AMP
- Voltage Selectable
- 100 – 127V / 200 – 240V
- Inlet,Exhaust Connection
- KF-25
- Dimensions
- L 17.4” x W 10.3” x H 11.89” - L 18.74” x W 13.11” x H 15.59”
- Weight
- 25.6 lbs - 58 lbs
- Displacement
- 6.8m³h⁻¹ (4.0ft³min⁻¹) - 28m³h⁻¹ (16.5ft³min⁻¹)
- Peak pumping speed
- 6.2m³h⁻¹ (3.6ft³min⁻¹) - 22.0m³h⁻¹ (13.0ft³min⁻¹)
- Minimum standby rotational speed
- 1200 rpm
- Operating Temp Range
- 41F to 104F
- Noise Level
- < 52 dB(A)
- Automation
- RS-232 / USB / RS-485 control
- Gas Ballast
- Available
- Thermal Protection
- Automatic
- Material Handling
- Aggressive,acidic,or corrosive
- Maintenance Interval
- 40,000 hours
- Working mechanism
- Dry scroll mechanism
- Automation level
- RS-232 / USB / RS-485
- Cleaning method
- Hermetically sealed - oil-free
- Batch vs. continuous operation
- Continuous
- Energy efficiency
- Reduced power consumption
- Changeover time
- Not applicable
- Corrosive resistance (e.g. acids)
- Chemraz® internal valves,stainless steel fittings
- Cleanability
- Oil-free design reduces contamination risk
- Density/particle size
- Handling of water vapor,samples lower than 20% acids recommended
- Sample Type
- Aggressive,acidic,or corrosive materials
- Machine footprint
- L 17.4” x W 10.3” x H 11.89”
- Machine weight
- 26.2 kg / 58 lbs (Edwards nXDS6iC)
- Machine weight
- 57 lbs (Edwards nXDS10iC)
- Machine weight
- 25.6 lbs (Edwards nXDS20iC)
- Machine weight
- 35.6 lbs (Edwards nXDS35iC)
- Control panel type
- Advanced interface with RS232,USB,RS485
- Discharge method
- KF-25 Connection
- Environment compatibility
- Oil-free,hermetically sealed
- Thermal protection
- Automatic thermal protection
- Integration Possibilities
- Remote control/monitoring via RS232 or RS485
