Laboratory cage box cleaning system

Ensure fast and thorough cleaning of cage boxes and accessories with a versatile high-pressure system designed for laboratory environments, addressing space constraints and waste residue challenges.

Cleans and Disinfects Animal Cage Components

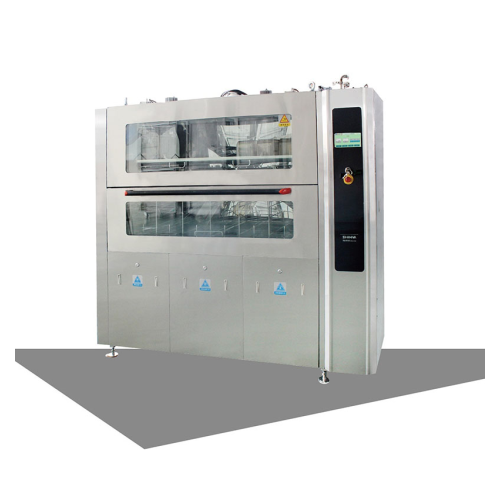

The BWS-L-S1000 from Shinva Medical is a fully automatic cage box cleaning machine specifically engineered for the experimental animal industry, addressing the need for rapid and efficient cleaning of mouse cages and related accessories. This equipment is distinguished by its high-pressure, large-flow hot water spraying system that ensures comprehensive cleaning and disinfection. Suitable for use in experimental animal centers and research laboratories, it can process up to 40 mouse IVC cage boxes per cleaning cycle, significantly reducing turnaround times.

Equipped with a Siemens control system, this machine offers dynamic process monitoring via a color touch screen HMI interface, supporting varying automated cleaning procedures tailored to different contaminants. The integration of an energy-efficient preheating tank and high-efficiency heat exchanger decreases water heating times and optimizes energy use, while recycling rinse water conserves resources.

Constructed from stainless steel with hygiene-grade pipelines, the BWS-L-S1000 resists bacterial growth and ensures longevity. Key features include a portable double-layer filter to prevent blockages, an active door sealing system for safety, and high-quality international components for dependable performance. Its compliance with stringent hygiene standards makes it a reliable choice for maintaining the cleanliness and safety of laboratory environments.

Benefits

  • Enhances cleaning efficiency, reducing cycle time to just 4-6 minutes for up to 40 mouse cage boxes.
  • Decreases energy use through optimized heat exchangers and water reuse systems.
  • Ensures thorough decontamination, improving laboratory safety and hygiene.
  • Minimizes operational interruptions with automated process monitoring and alerts.
  • Prevents mechanical blockages with a dedicated filtration system, ensuring continuous operation.

General


Applications
Animal research laboratories,Experimental animal centers,Scientific research institutions,Laboratory animal facilities
End products
Bottle stoppers,Metal grid racks,Drinking water bottles,Mouse cage lids,Mouse cages
Steps before
Inspection,Material Removal,Sorting
Steps after
Sterilization,Drying,Quality Assurance
Input ingredients
cage box,lid,metal grid rack,drinking water bottle,bottle stopper,residual waste bedding material
Output ingredients
clean cage box,clean lid,clean metal grid rack,clean drinking water bottle,clean bottle stopper
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Cleaning method
High-pressure,large-flow hot water spraying
Cycle time
4-6 minutes
Capacity
Up to 40 mice IVC cage boxes
Automation
Siemens control system
Water recycling
Final rinse water recycling
Temperature monitoring
On-line monitoring
Preheating tank
Equipped
Energy efficiency
Patent design cycle of heating system
Material
Stainless steel

Operating Characteristics


Working Mechanism
High-pressure hot water spraying
Integrated Steps
Automatic spraying,cleaning,rinsing
Cleaning Method
Automatic / Manual loading
Batch vs. Continuous Operation
Batch
Automation Level
PLC-controlled
CIP/SIP
CIP
Energy Efficiency
Recycled rinse water and efficient heat system
Safety Features
Active door sealing,emergency stop device
Control Interface
Siemens color touch screen

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Space-saving design
Door structure
Upper and lower to open
Machine footprint
Adaptable to compact spaces
Door type
Manual opening and closing
Platform type
Door forms working platform when open
Filter structure
Portable double layer
Observation window
Double deck glass
Material
Stainless steel
Chamber construction
Robot automatic welding

Custom Options


Control panel type
Color touch screen HMI interface
Integration possibilities
Siemens control system
Cleaning performance customization
Preset automatic cleaning procedures
Door opening design
Manual,upper and lower to open door structure
Automation level
Automatic operation,dynamic display of work process
