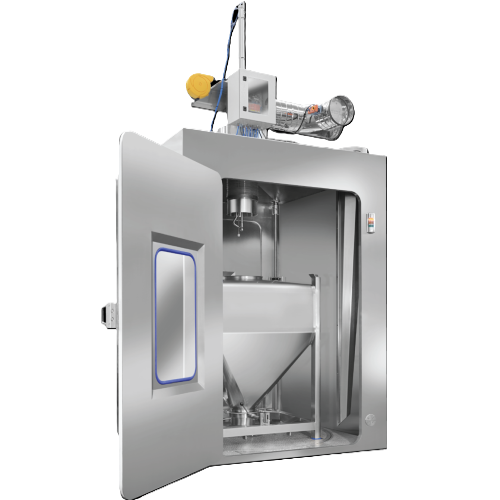

Internal and external bin washing cabinet
Industrial facilities often face challenges keeping wheeled and palletized bins clean and sanitary. Dirt and contaminants can build up, causing hygiene issues that could affect product quality or lead to equipment malfunctions.
Manage bin hygiene with precision washing and drying
The Bin Washing Cabinet by Freund is designed to automate the internal and external cleaning and drying of wheeled and palletized bins. It features two water inputs—industrial and demineralized—and three water outputs for valve washing, internal washing, and external washing. The system operates at a pressure of 10 bar and requires a water flow of 90 liters per minute. Pneumatically positioned washing and internal drying covers ensure thorough cleaning, while an air treatment unit dries the bins effectively. Automatic management of washing cycles is handled via a PLC and touchscreen interface. The cabinet is constructed from AISI 316 L pipes and AISI 304 satin finished materials, with additional options such as a rotating grid platform and water recovery kits available.
Benefits
- Automates bin cleaning and drying processes
- Ensures thorough hygiene with high-pressure washing
- Efficient drying with integrated air treatment unit
- User-friendly operation with PLC and touchscreen control
- Flexible options for different bin types and sizes
