Intermittent motion horizontal cartoner for large products
Simplify your packaging process with a solution that ensures precise carton erection and seamless product introduction, even managing irregularly shaped items with ease.
Erects Cartons and Introduces Products Accurately

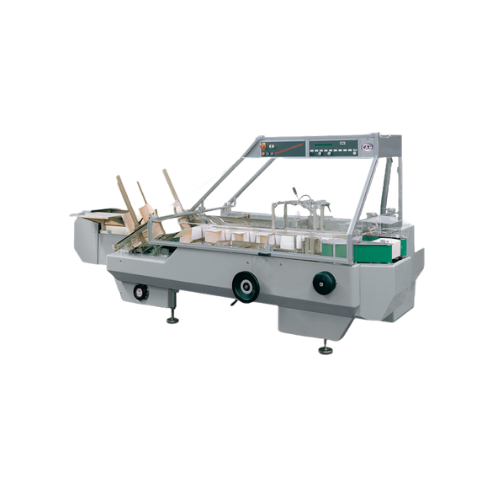

The PG Intermittent Motion Horizontal Cartoner from Tecnicam offers a robust solution for handling large size products in diverse packaging applications. Its cantilever structure ensures a clear separation of mechanical and product handling areas, significantly reducing cleaning time and contamination risk. Designed for pharmaceutical, nutraceutical, and cosmetic industries, the PG cartoner efficiently erects cartons and introduces products such as blister packs, vitamin capsules, and healthcare kits with precision. Employing articulated twin blade technology, it accommodates low grammage boards and rectifies glueing imperfections, ensuring versatility in carton handling. The machine supports rapid, tool-less size change-overs with its Mechanical Memory® system, enabling unskilled personnel to execute process adjustments within 10 minutes. Integrating seamlessly with existing production lines, optional modules for coders and detection systems enhance operational thoroughness. Constructed for longevity, the PG cartoner is suited for demanding environments where efficiency and product integrity are paramount.
Benefits
- Enhances production efficiency with rapid, tool-less size change-overs in under 10 minutes.
- Minimizes product handling contamination through its separated mechanical and operation areas.
- Accommodates a wide range of carton formats using articulated twin blade technology.
- Integrates seamlessly into existing lines with optional product feeding and detection systems.
- Reduces downtime with quick and precise carton erection and product introduction.
- Applications
- Medical devices,Nutraceuticals,Cosmetics,Healthcare products,Food supplements,Pharmaceuticals
- End products
- Sachets of dietary supplements,Syringe packets,Cosmetic cream tubes,Blister packs of tablets,Healthcare kits,Vitamin capsules
- Steps before
- Product preparation,Carton pre-breaking,Feeding system setup
- Steps after
- Carton sealing,Product inspection,Packaging,Detection and reject process
- Input ingredients
- cartons,product with irregular shape,products with glueing imperfections,low grammage board
- Output ingredients
- packaged products,cartoned products,square-section formats
- Market info
- CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.
- Carton erection method
- Articulated twin blade
- Motion type
- Intermittent motion
- Structure type
- Cantilever
- Product introduction method
- Moveable mouthpiece
- Product feeding systems
- Available
- Size change-over time
- Less than 10 minutes
- Mechanism for product straying prevention
- Spring-loaded guides
- Additional units compatibility
- Coders,leaflet feeders,detection devices,etc.
- Size range
- Large size products
- Cleanability
- Reduced cleaning time,mechanical and product handling area separation
- Working mechanism
- Intermittent motion horizontal
- Product handling
- Cantilever structure
- Cleaning method
- Reduced cleaning time
- Automation level
- Mechanically driven with optional PLC integration
- Product feeding system
- Customizable options (coders,leaflet/booklet feeders)
- Size change-over time
- Less than 10 minutes
- Integration
- Mechanical Memory® system for rapid change-over
- Batch vs. continuous operation
- Batch (Intermittent)
- Carton erection method
- Articulated twin blade
- Product introduction
- Moveable mouthpiece and spring-loaded guides
- Product shape/dimensions
- Irregular
- Carton size
- Large size
- Machine footprint
- Compact
- Cantilever structure
- Yes
- Separation of mechanical parts
- Complete
- Product handling area
- Isolated
- Feed method
- Articulated twin blade
- Discharge method
- Spring-loaded guides
- Size change-over system
- Mechanical Memory®
- Carton erection
- Articulated twin blade
- Product introduction
- Moveable mouthpiece
- Product feeding systems
- Customizable based on product type
- Additional units
- Coders,leaflet feeders,booklet feeders,detection and reject devices
- Mechanical Memory® system
- Enables rapid size change-over
